NC7SB3157 TinyLogic錚?Low Voltage UHS Analog Switch 2-Channel Multiplexer/Demultiplexer
January 2000
Revised June 2000
NC7SB3157
TinyLogic
錚?/div>
Low Voltage UHS Analog Switch 2-Channel
Multiplexer/Demultiplexer
General Description
The NC7SB3157 is a high performance, Analog Switch 2-
channel CMOS multiplexer/demultiplexer from Fairchild鈥檚
Ultra High Speed Series of TinyLogic
錚?/div>
. The device is fabri-
cated with advanced sub-micron CMOS technology to
achieve high speed enable and disable times and low on
resistance. The break before make select circuitry prevents
disruption of signals on the B Port due to both switches
temporarily being enabled during select pin switching. The
device is specified to operate over the 1.65 to 5.5V V
CC
operating range. The control input tolerates voltages up to
5.5V independent of the V
CC
operating range.
Features
s
Useful in both analog and digital applications
s
Space saving SC70 6-lead surface mount package
s
Low on resistance;
<
10
鈩?/div>
on typ @ 3.3V V
CC
s
Broad V
CC
operating range; 1.65V to 5.5V
s
Power down high impedance control input
s
Overvoltage tolerance of control input to 7.0V
s
Break before make enable circuitry
Ordering Code:
Order
Number
NC7SB3157P6X
Package
Number
MAA06A
Product Code
Top Mark
B7A
Package Description

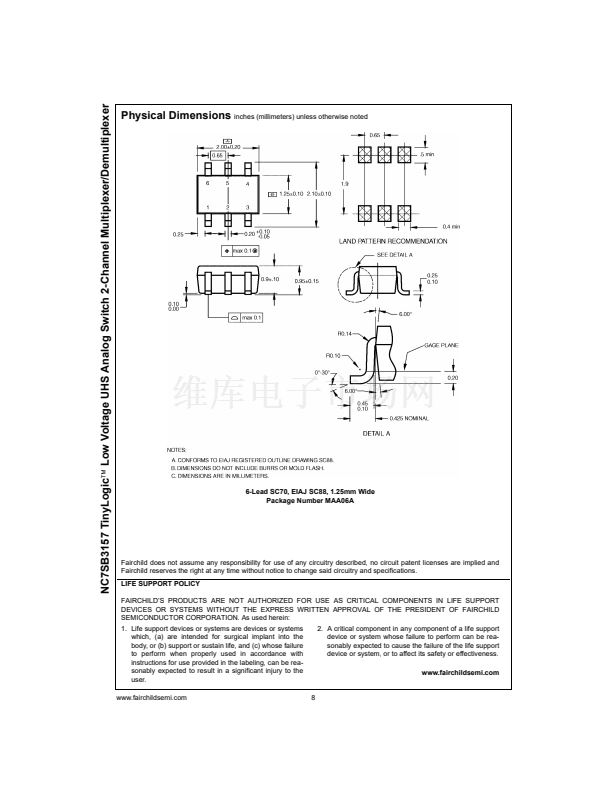

6-Lead SC70, EIAJ SC88, 1.25mm Wide
Supplied As

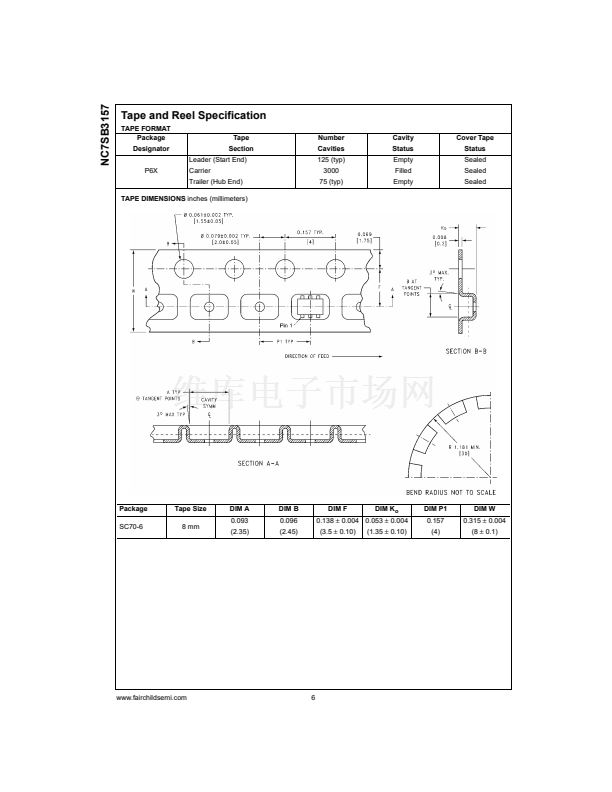

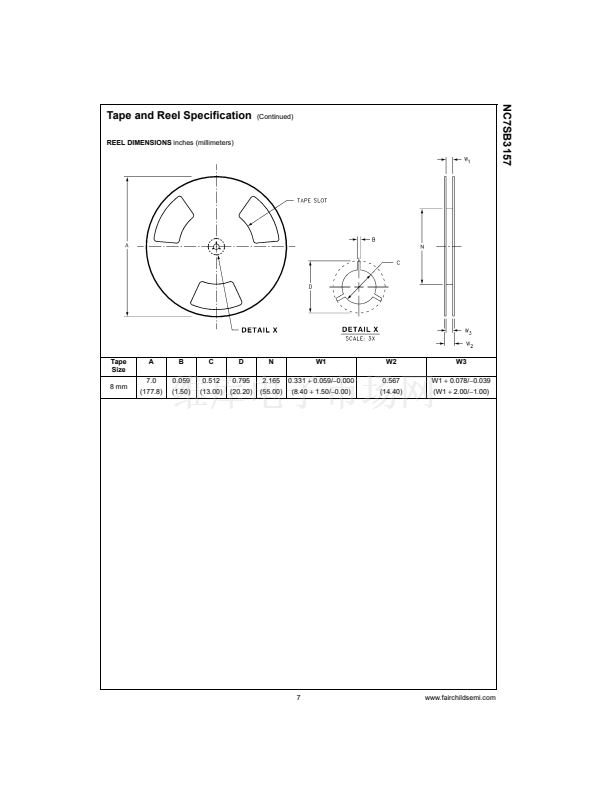

3k Units on Tape and Reel
Logic Symbol
Connection Diagrams
Pin Descriptions
Pin Names
A, B
0
, B
1
SEL
Description
Data Ports
Control Input
(Top View)
Pin One Orientation Diagram
Function Table
Input (SEL)
L
H
H
=
HIGH Logic Level
L
=
LOW Logic Level
Function
B
0
Connected to A
B
1
Connected to A
AAA
=
Product Code Top Mark - see ordering code.
Note:
Orientation of Top Mark determines Pin One location. Read the top
product code mark left to right, Pin One is the lower left pin (see diagram).
TinyLogic錚?is a trademark of Fairchild Semiconductor Corporation.
漏 2000 Fairchild Semiconductor Corporation
DS500326

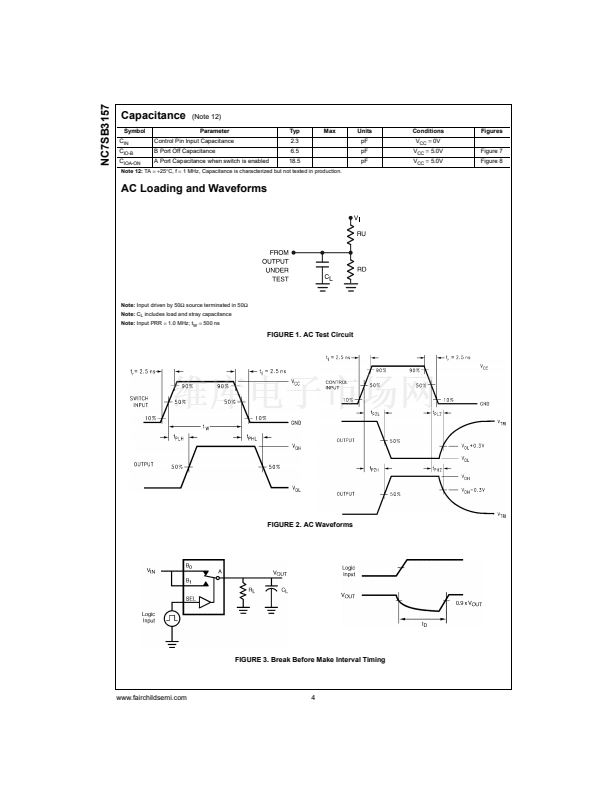

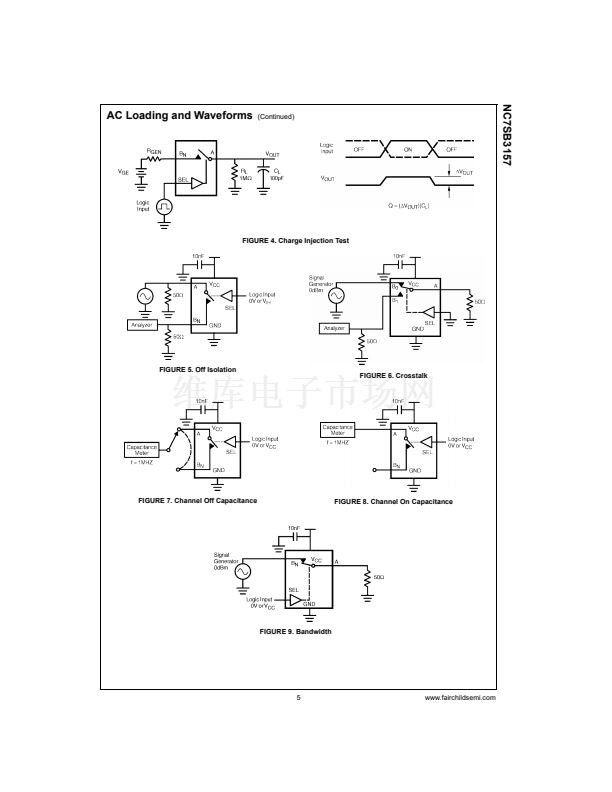

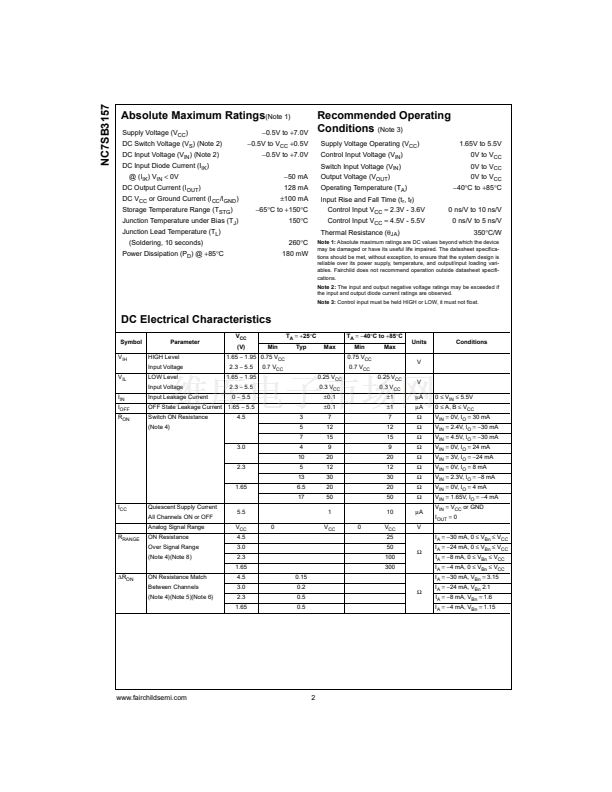

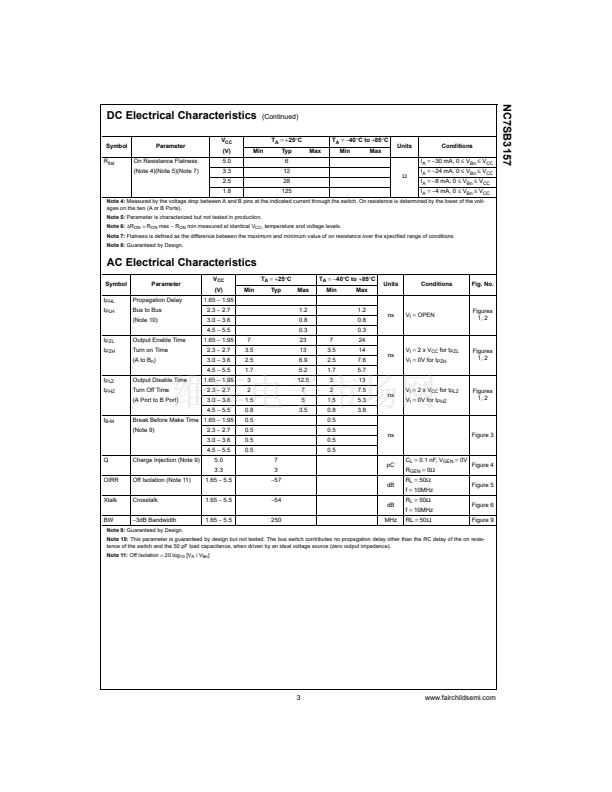

www.fairchildsemi.com
