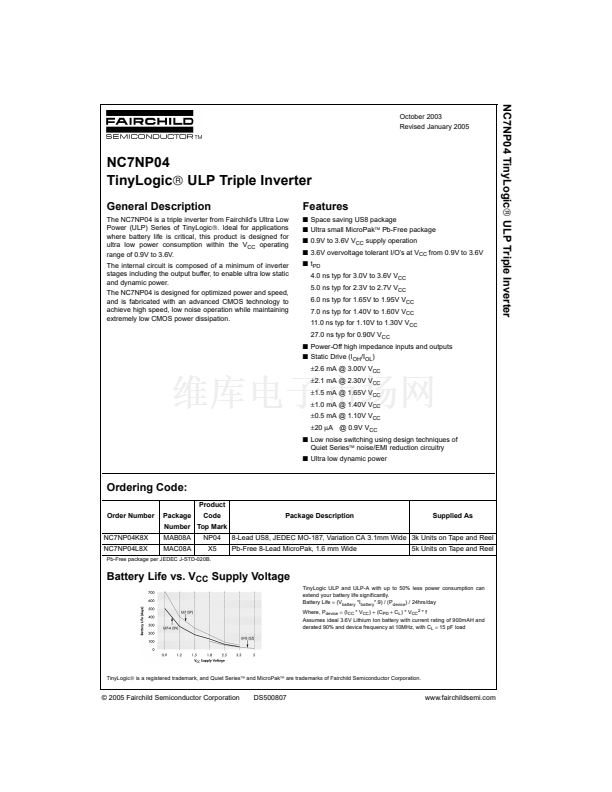

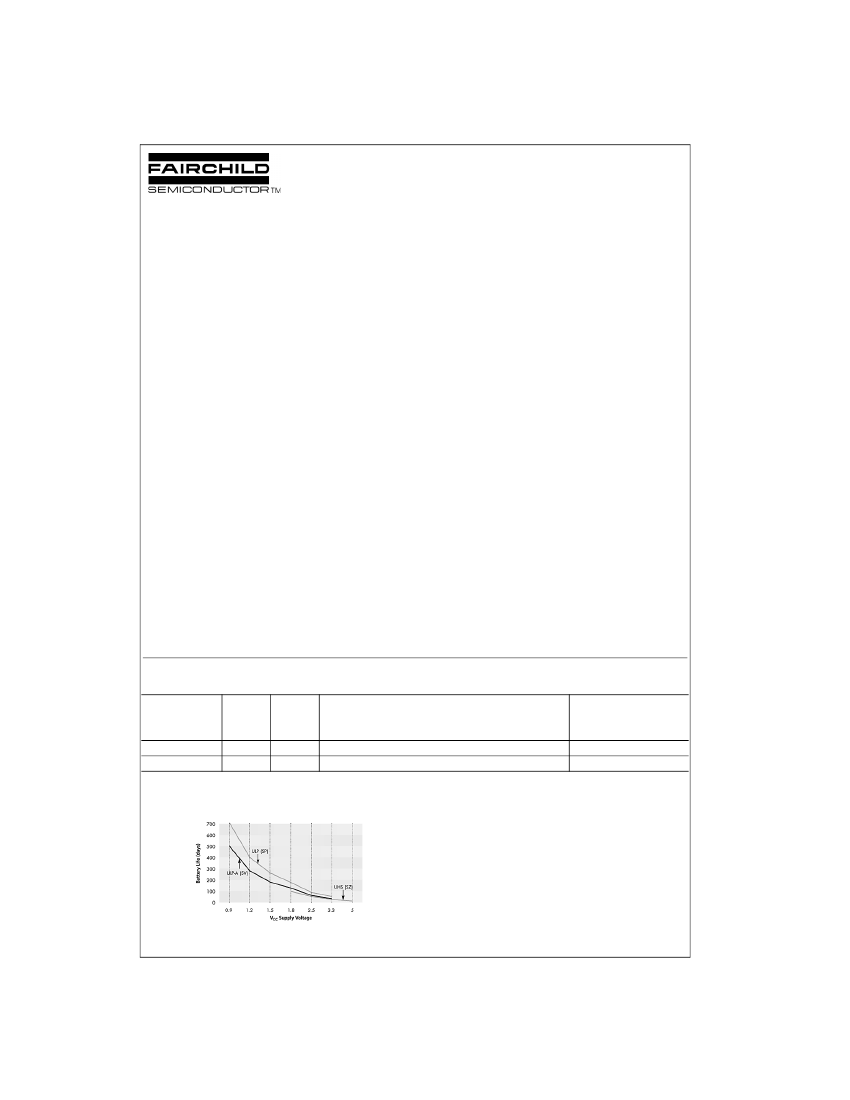

NC7NP04 TinyLogic錚?ULP Triple Inverter
October 2003
Revised January 2005
NC7NP04
TinyLogic
錚?/div>
ULP Triple Inverter
General Description
The NC7NP04 is a triple inverter from Fairchild鈥檚 Ultra Low
Power (ULP) Series of TinyLogic
錚?/div>
. Ideal for applications
where battery life is critical, this product is designed for
ultra low power consumption within the V
CC
operating
range of 0.9V to 3.6V.
The internal circuit is composed of a minimum of inverter
stages including the output buffer, to enable ultra low static
and dynamic power.
The NC7NP04 is designed for optimized power and speed,
and is fabricated with an advanced CMOS technology to
achieve high speed, low noise operation while maintaining
extremely low CMOS power dissipation.
Features
s
Space saving US8 package
s
Ultra small MicroPak
錚?/div>
Pb-Free package
s
0.9V to 3.6V V
CC
supply operation
s
3.6V overvoltage tolerant I/O鈥檚 at V
CC
from 0.9V to 3.6V
s
t
PD
4.0 ns typ for 3.0V to 3.6V V
CC
5.0 ns typ for 2.3V to 2.7V V
CC
6.0 ns typ for 1.65V to 1.95V V
CC
7.0 ns typ for 1.40V to 1.60V V
CC
11.0 ns typ for 1.10V to 1.30V V
CC
27.0 ns typ for 0.90V V
CC
s
Power-Off high impedance inputs and outputs
s
Static Drive (I
OH
/I
OL
)
鹵
2.6 mA @ 3.00V V
CC
鹵
2.1 mA @ 2.30V V
CC
鹵
1.5 mA @ 1.65V V
CC
鹵
1.0 mA @ 1.40V V
CC
鹵
0.5 mA @ 1.10V V
CC
鹵
20
碌
A @ 0.9V V
CC
s
Low noise switching using design techniques of
Quiet Series
錚?/div>
noise/EMI reduction circuitry
s
Ultra low dynamic power
Ordering Code:
Product
Order Number
NC7NP04K8X
NC7NP04L8X
Package
MAB08A
MAC08A
Code
NP04
X5
Package Description
Supplied As
Number Top Mark

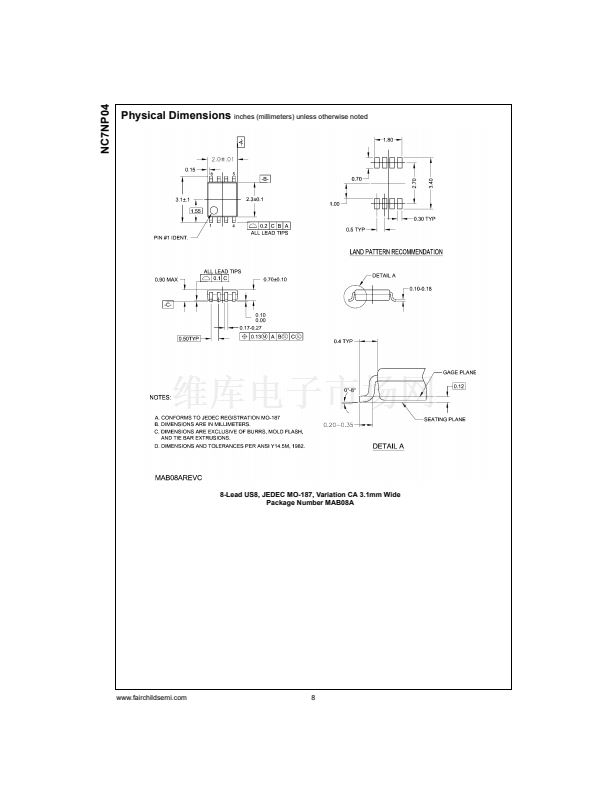

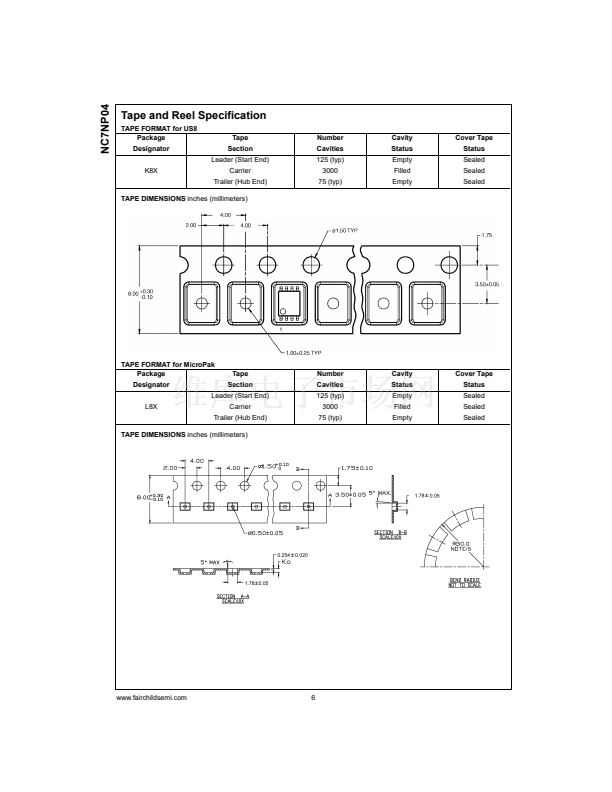

8-Lead US8, JEDEC MO-187, Variation CA 3.1mm Wide 3k Units on Tape and Reel

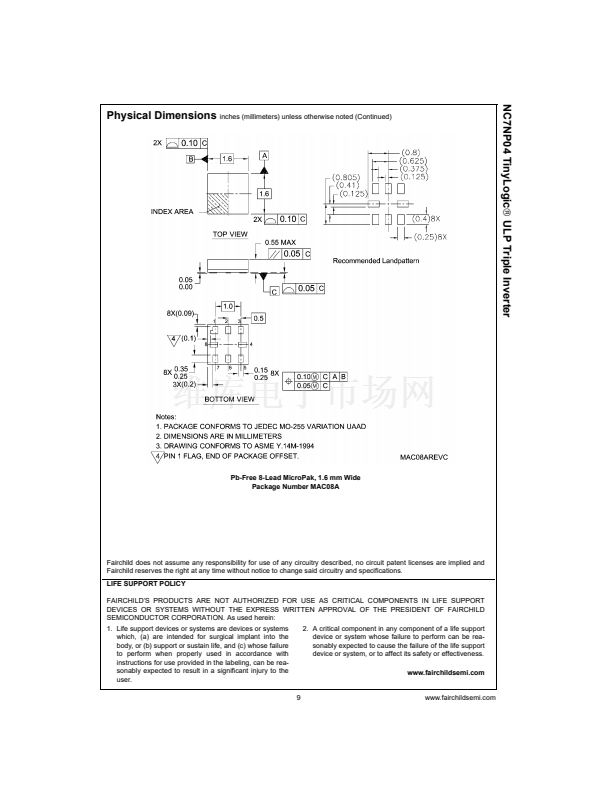

Pb-Free 8-Lead MicroPak, 1.6 mm Wide
5k Units on Tape and Reel
Pb-Free package per JEDEC J-STD-020B.
Battery Life vs. V
CC
Supply Voltage
TinyLogic ULP and ULP-A with up to 50% less power consumption can
extend your battery life significantly.
Battery Life
=
(V
battery
*I
battery
*.9) / (P
device
) / 24hrs/day
Where, P
device
=
(I
CC
* V
CC
)
+
(C
PD
+
C
L
) * V
CC2
* f
Assumes ideal 3.6V Lithium Ion battery with current rating of 900mAH and
derated 90% and device frequency at 10MHz, with C
L
=
15 pF load
TinyLogic錚?is a registered trademark, and Quiet Series錚?and MicroPak錚?are trademarks of Fairchild Semiconductor Corporation.
漏 2005 Fairchild Semiconductor Corporation
DS500807
www.fairchildsemi.com
