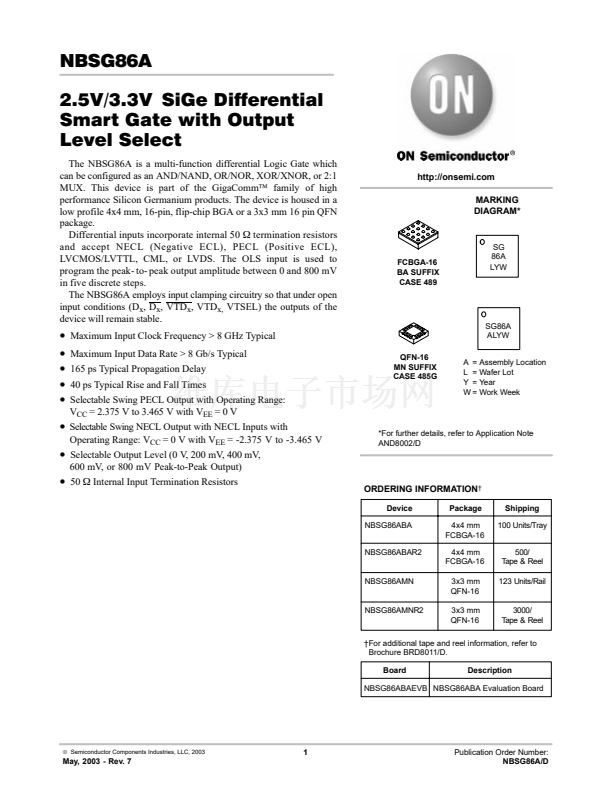

NBSG86A
2.5V/3.3V SiGe Differential
Smart Gate with Output
Level Select
The NBSG86A is a multi-function differential Logic Gate which
can be configured as an AND/NAND, OR/NOR, XOR/XNOR, or 2:1
MUX. This device is part of the GigaComm鈩?family of high
performance Silicon Germanium products. The device is housed in a
low profile 4x4 mm, 16-pin, flip-chip BGA or a 3x3 mm 16 pin QFN
package.
Differential inputs incorporate internal 50
W
termination resistors
and accept NECL (Negative ECL), PECL (Positive ECL),
LVCMOS/LVTTL, CML, or LVDS. The OLS input is used to
program the peak- to- peak output amplitude between 0 and 800 mV
in five discrete steps.
The NBSG86A employs input clamping circuitry so that under open
input conditions (D
x
, D
x
, VTD
x
, VTD
x,
VTSEL) the outputs of the
device will remain stable.
http://onsemi.com
MARKING
DIAGRAM*
FCBGA-16
BA SUFFIX
CASE 489
SG
86A
LYW
鈥?/div>
Maximum Input Clock Frequency > 8 GHz Typical
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Maximum Input Data Rate > 8 Gb/s Typical
165 ps Typical Propagation Delay
40 ps Typical Rise and Fall Times
QFN-16
MN SUFFIX
CASE 485G
SG86A
ALYW
A = Assembly Location
L = Wafer Lot
Y = Year
W = Work Week
Selectable Swing PECL Output with Operating Range:
V
CC
= 2.375 V to 3.465 V with V
EE
= 0 V
鈥?/div>
Selectable Swing NECL Output with NECL Inputs with
Operating Range: V
CC
= 0 V with V
EE
= -2.375 V to -3.465 V
鈥?/div>
Selectable Output Level (0 V, 200 mV, 400 mV,
600 mV, or 800 mV Peak-to-Peak Output)
鈥?/div>
50
W
Internal Input Termination Resistors
*For further details, refer to Application Note
AND8002/D
ORDERING INFORMATION
鈥?/div>
Device
NBSG86ABA
NBSG86ABAR2
Package
4x4 mm
FCBGA-16
4x4 mm
FCBGA-16
3x3 mm
QFN-16
3x3 mm
QFN-16
Shipping
100 Units/Tray
500/
Tape & Reel
123 Units/Rail
NBSG86AMN
NBSG86AMNR2
3000/
Tape & Reel
鈥燜or additional tape and reel information, refer to
Brochure BRD8011/D.
Board
Description
NBSG86ABAEVB NBSG86ABA Evaluation Board
漏
Semiconductor Components Industries, LLC, 2003
1
May, 2003 - Rev. 7
Publication Order Number:
NBSG86A/D
