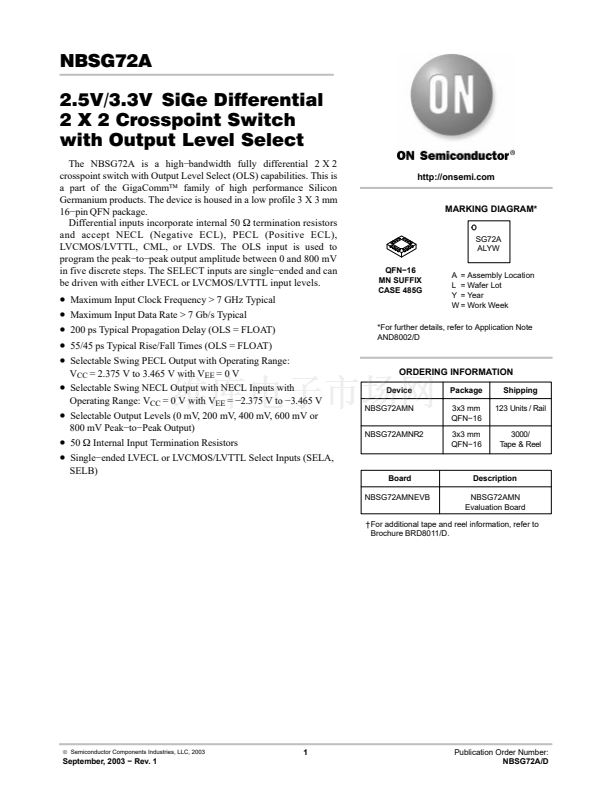

NBSG72A
2.5V/3.3V SiGe Differential
2 X 2 Crosspoint Switch
with Output Level Select
The NBSG72A is a high鈭抌andwidth fully differential 2 X 2
crosspoint switch with Output Level Select (OLS) capabilities. This is
a part of the GigaComm鈩?family of high performance Silicon
Germanium products. The device is housed in a low profile 3 X 3 mm
16鈭抪in QFN package.
Differential inputs incorporate internal 50
W
termination resistors
and accept NECL (Negative ECL), PECL (Positive ECL),
LVCMOS/LVTTL, CML, or LVDS. The OLS input is used to
program the peak鈭抰o鈭抪eak output amplitude between 0 and 800 mV
in five discrete steps. The SELECT inputs are single鈭抏nded and can
be driven with either LVECL or LVCMOS/LVTTL input levels.
http://onsemi.com
MARKING DIAGRAM*
SG72A
ALYW
QFN鈭?6
MN SUFFIX
CASE 485G
A = Assembly Location
L = Wafer Lot
Y = Year
W = Work Week
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Maximum Input Clock Frequency > 7 GHz Typical
Maximum Input Data Rate > 7 Gb/s Typical
200 ps Typical Propagation Delay (OLS = FLOAT)
55/45 ps Typical Rise/Fall Times (OLS = FLOAT)
*For further details, refer to Application Note
AND8002/D
Selectable Swing PECL Output with Operating Range:
V
CC
= 2.375 V to 3.465 V with V
EE
= 0 V
鈥?/div>
Selectable Swing NECL Output with NECL Inputs with
Operating Range: V
CC
= 0 V with V
EE
= 鈭?.375 V to 鈭?.465 V
鈥?/div>
Selectable Output Levels (0 mV, 200 mV, 400 mV, 600 mV or
800 mV Peak鈭抰o鈭扨eak Output)
鈥?/div>
50
W
Internal Input Termination Resistors
SELB)
ORDERING INFORMATION
Device
NBSG72AMN
NBSG72AMNR2
Package
3x3 mm
QFN鈭?6
3x3 mm
QFN鈭?6
Shipping
123 Units / Rail
3000/
Tape & Reel
鈥?/div>
Single鈭抏nded LVECL or LVCMOS/LVTTL Select Inputs (SELA,
Board
NBSG72AMNEVB
Description
NBSG72AMN
Evaluation Board
鈥燜or additional tape and reel information, refer to
Brochure BRD8011/D.
漏
Semiconductor Components Industries, LLC, 2003
1
September, 2003 鈭?Rev. 1
Publication Order Number:
NBSG72A/D
