NBC12430/D Datasheet

  • NBC12430/D

  • 3.3 V/5V Programmable PLL Synthesized Clock Generator

  • 20頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NBC12430
3.3 V/5 V Programmable
PLL Synthesized Clock
Generator
50 MHz to 800 MHz
http://onsemi.com

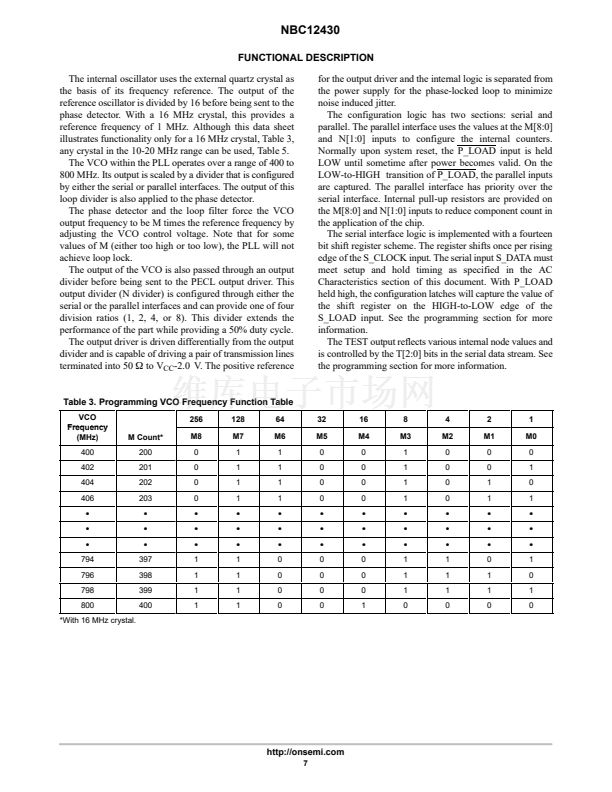

The NBC12430 is a general purpose, PLL based synthesized clock
source. The VCO will operate over a frequency range of 400 MHz to
800 MHz. The VCO frequency is sent to the N-output divider, where
it can be configured to provide division ratios of 1, 2, 4, or 8. The VCO
and output frequency can be programmed using the parallel or serial
interfaces to the configuration logic. Output frequency steps of
250 KHz, 500 KHz, 1.0 MHz, 2.0 MHz can be achieved using a
16 MHz crystal, depending on the output dividers settings. The PLL
loop filter is fully integrated and does not require any external
components.

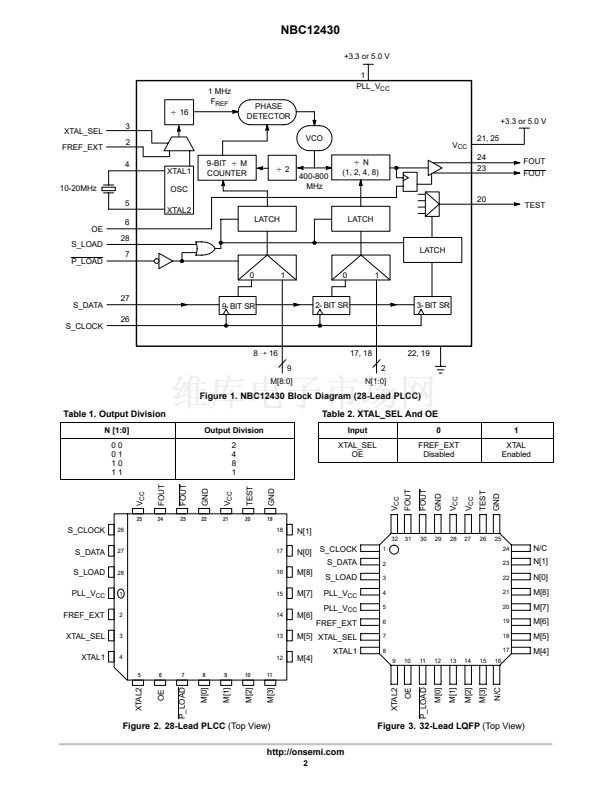

MARKING
DIAGRAMS
1 28
NBC12430
PLCC-28
FN SUFFIX
CASE 776
AWLYYWW
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Best-in-Class Output Jitter Performance,
鹵20
ps Peak-to-Peak
50 MHz to 800 MHz Programmable Differential PECL Outputs
Fully Integrated Phase-Lock-Loop with Internal Loop Filter
Parallel Interface for Programming Counter and Output Dividers
During Power-Up
鈥?/div>
Minimal Frequency Overshoot
Serial 3-Wire Programming Interface
Crystal Oscillator Interface
Operating Range: V
CC
= 3.135 V to 5.25 V
CMOS and TTL Compatible Control Inputs
Pin Compatible with Motorola MC12430
NBC12430
LQFP-32
FA SUFFIX
CASE 873A
AWLYYWW
32
1
A
WL
YY
WW
= Assembly Location
= Wafer Lot
= Year
= Work Week
ORDERING INFORMATION
Device
NBC12430FN
NBC12430FNR2
NBC12430FA
NBC12430FAR2
Package
PLCC-28
PLCC-28
LQFP-32
LQFP-32
Shipping
37 Units/Rail
500 Tape & Reel
250 Units/Tray
2000 Tape & Reel
漏
Semiconductor Components Industries, LLC, 2003
1
April, 2003 - Rev. 3
Publication Order Number:
NBC12430/D
