NBB-302
4
Typical Applications
鈥?Narrow and Broadband Commercial and
Military Radio Designs
鈥?Linear and Saturated Amplifiers
鈥?Gain Stage or Driver Amplifiers for
MWRadio/Optical Designs (PTP/PMP/
LMDS/UNII/VSAT/WLAN/Cellular/DWDM)
CASCADABLE BROADBAND
GaAs MMIC AMPLIFIER DC TO 12GHz
4
Product Description
The NBB-302 cascadable broadband GaInP/GaAs MMIC
amplifier is a low-cost, high-performance solution for gen-
eral purpose RF and microwave amplification needs. This
50鈩?gain block is based on a reliable HBT proprietary
MMIC design, providing unsurpassed performance for
small-signal applications. Designed with an external bias
resistor, the NBB-302 provides flexibility and stability. The
NBB-302 is packaged in a low-cost, surface-mount
ceramic package, providing ease of assembly for high-
volume tape-and-reel requirements. It is available in
either packaged or chip (NBB-300-D) form, where its gold
metallization is ideal for hybrid circuit designs.
2.94 min
3.28 max
Pin 1
Indicator
1.00 min
1.50 max
0.025 min
0.125 max
Pin 1
Indicator
RF OUT
Ground
RF IN
0.50 nom
0.50 nom
N3
Lid ID
1.70 min
1.91 max
2.39 min
2.59 max
Ground
0.38 nom
0.37 min
0.63 max
0.98 min
1.02 max
All Dimensions in Millimeters
Notes:
1. Solder pads are coplanar to within 鹵0.025 mm.
2. Lid will be centered relative to frontside metallization with a tolerance of 鹵0.13 mm.
3. Mark to include two characters and dot to reference pin 1.
Optimum Technology Matching廬 Applied
Si BJT
GaAs HBT
SiGe HBT
GaN HEMT
GaAs MESFET
Si CMOS
Package Style: MPGA, Bowtie, 3x3, Ceramic
!
GaInP/HBT
Si Bi-CMOS

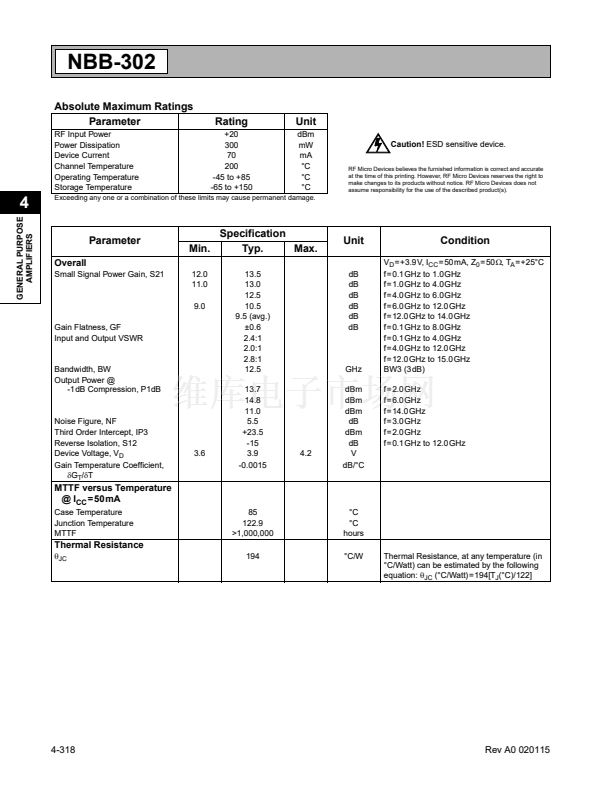

Features
鈥?Reliable, Low-Cost HBT Design
鈥?12.0dB Gain, +13.7dBm P1dB@2GHz
鈥?High P1dB of +14.0dBm@6.0GHz and
+11.0dBm@14.0GHz
Pin 1
Indicator
1
RF OUT
8
Ground
7
6
5
9
4
RF IN
2
3
Ground
鈥?Single Power Supply Operation
鈥?50鈩?I/O Matched for High Freq. Use
Ordering Information
NBB-302
Cascadable Broadband GaAs MMIC Amplifier DC to
12GHz
NBB-302-T1 or -T3Tape & Reel, 1000 or 3000 Pieces (respectively)
NBB-302-E
Fully Assembled Evaluation Board
RF Micro Devices, Inc.
7628 Thorndike Road
Greensboro, NC 27409, USA
Tel (336) 664 1233
Fax (336) 664 0454
http://www.rfmd.com
Functional Block Diagram
Rev A0 020115
4-317
GENERAL PURPOSE
AMPLIFIERS
