MX88L60 Datasheet

  • MX88L60

  • DUAL-MODE PC CAMERA CONTROLLER

  • 23頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

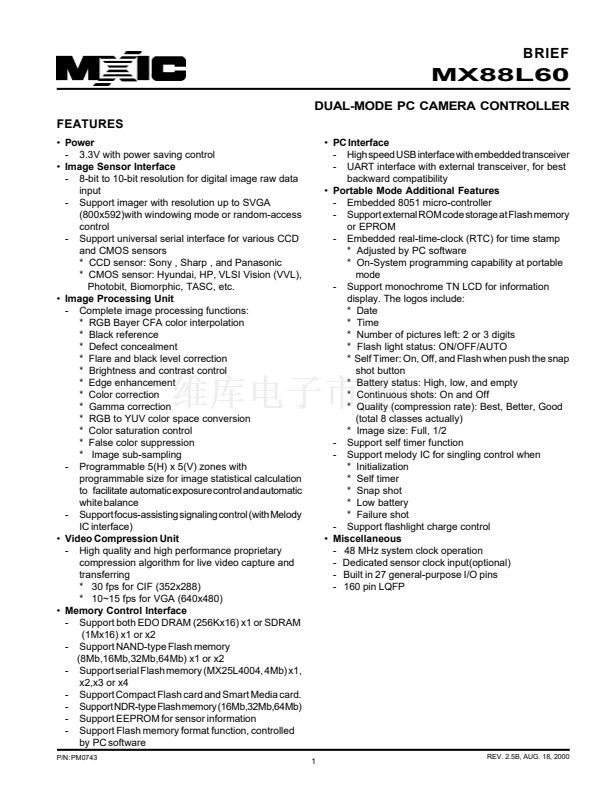

BRIEF
MX88L60
DUAL-MODE PC CAMERA CONTROLLER
FEATURES
鈥?/div>

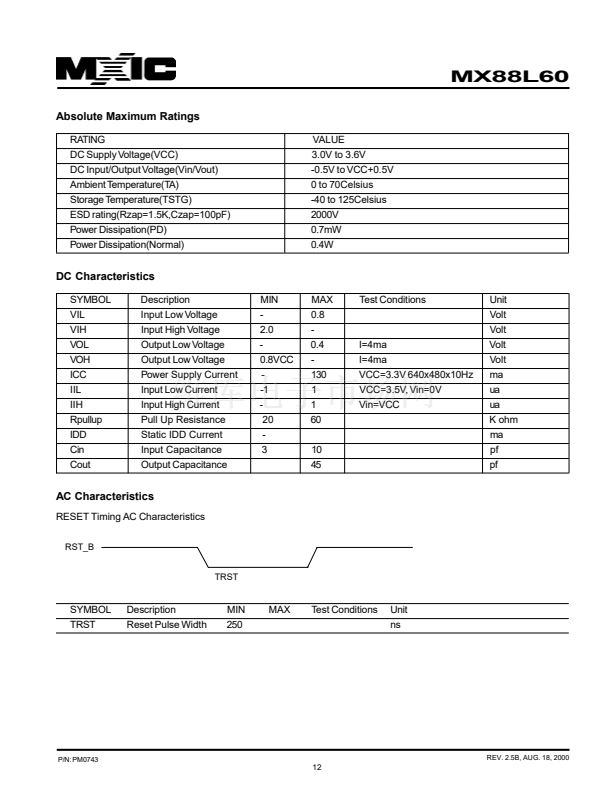

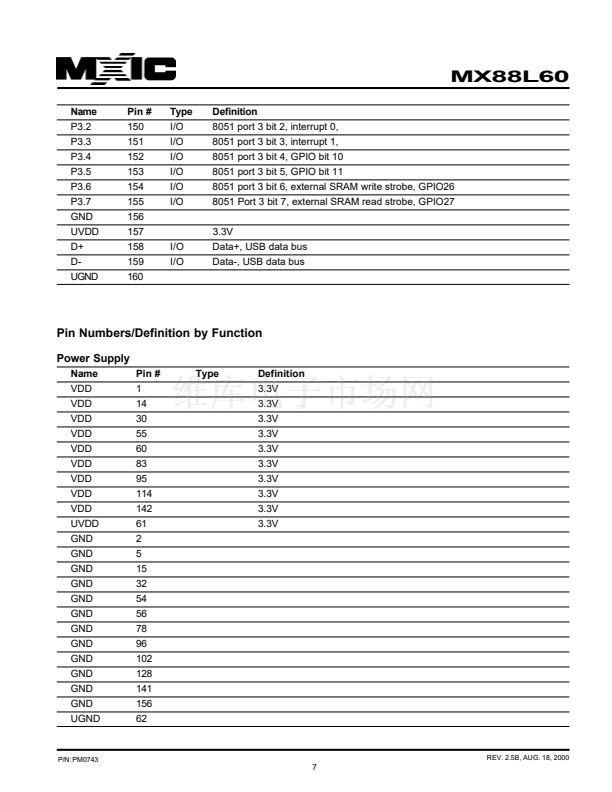

Power
- 3.3V with power saving control
鈥?/div>

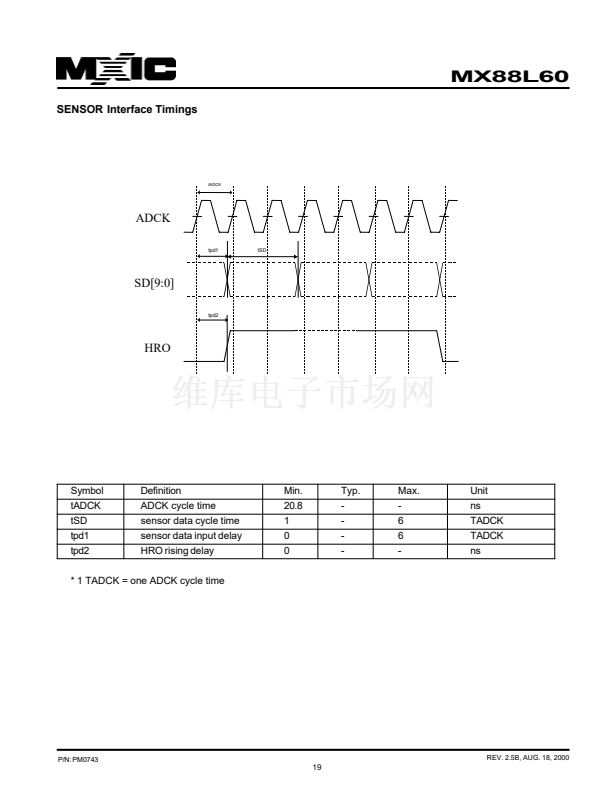

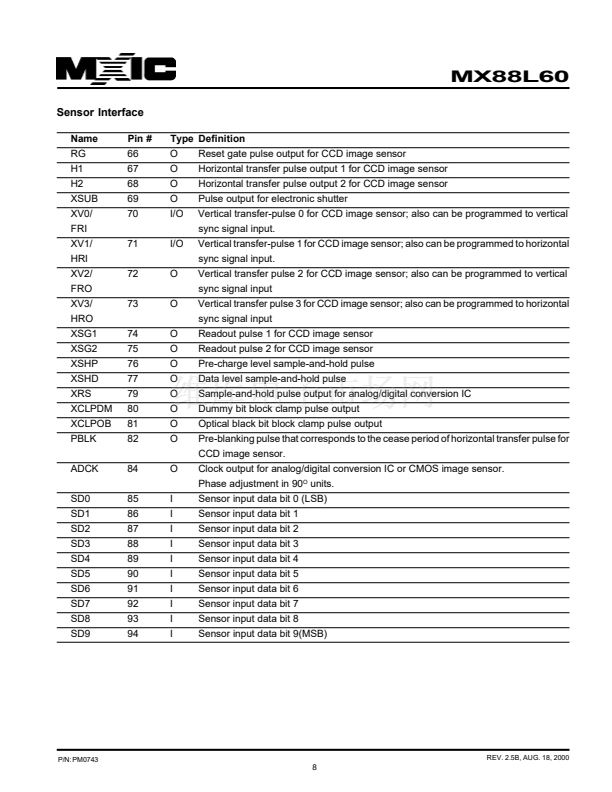

Image Sensor Interface
- 8-bit to 10-bit resolution for digital image raw data
input
- Support imager with resolution up to SVGA
(800x592)with windowing mode or random-access
control
- Support universal serial interface for various CCD
and CMOS sensors
* CCD sensor: Sony , Sharp , and Panasonic
* CMOS sensor: Hyundai, HP, VLSI Vision (VVL),
Photobit, Biomorphic, TASC, etc.
鈥?/div>
Image Processing Unit
- Complete image processing functions:
* RGB Bayer CFA color interpolation
* Black reference
* Defect concealment
* Flare and black level correction
* Brightness and contrast control
* Edge enhancement
* Color correction
* Gamma correction
* RGB to YUV color space conversion
* Color saturation control
* False color suppression
* Image sub-sampling
- Programmable 5(H) x 5(V) zones with
programmable size for image statistical calculation
to facilitate automatic exposure control and automatic
white balance
- Support focus-assisting signaling control (with Melody
IC interface)
鈥?/div>
Video Compression Unit
- High quality and high performance proprietary
compression algorithm for live video capture and
transferring
* 30 fps for CIF (352x288)
* 10~15 fps for VGA (640x480)
鈥?/div>
Memory Control Interface

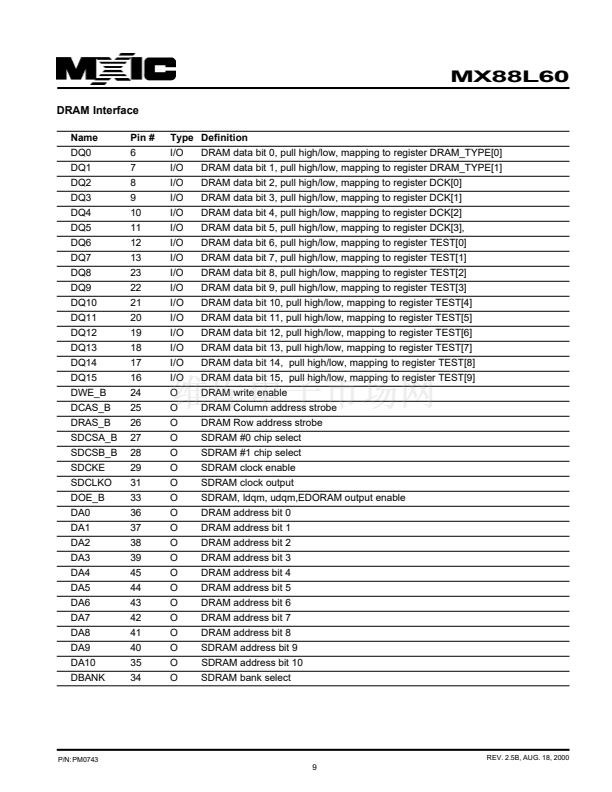

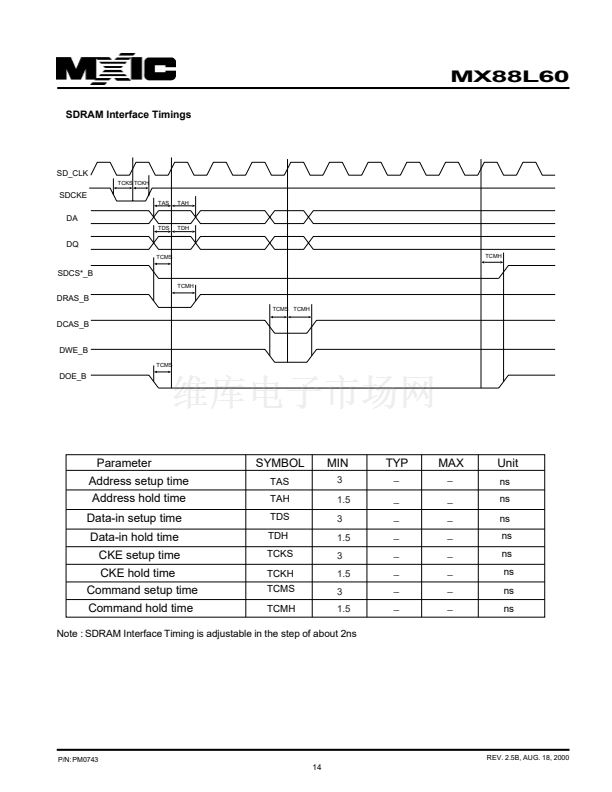

- Support both EDO DRAM (256Kx16) x1 or SDRAM
(1Mx16) x1 or x2

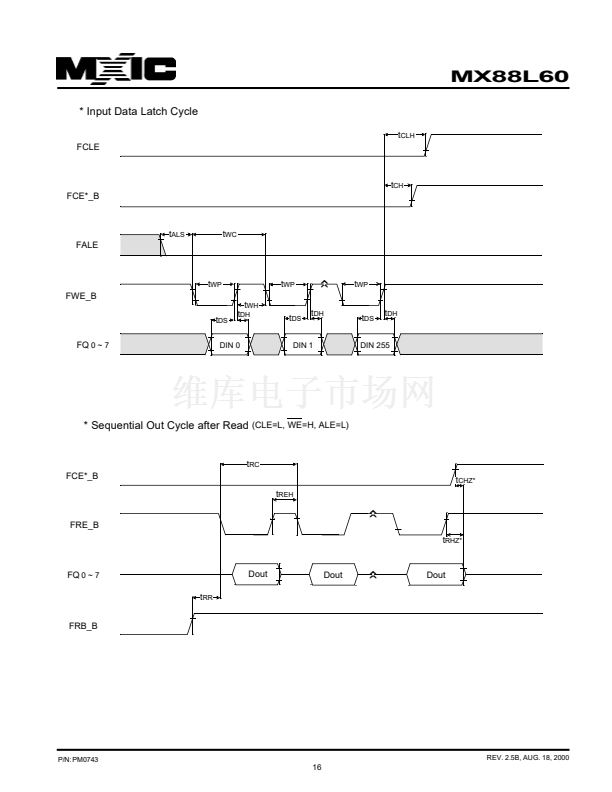

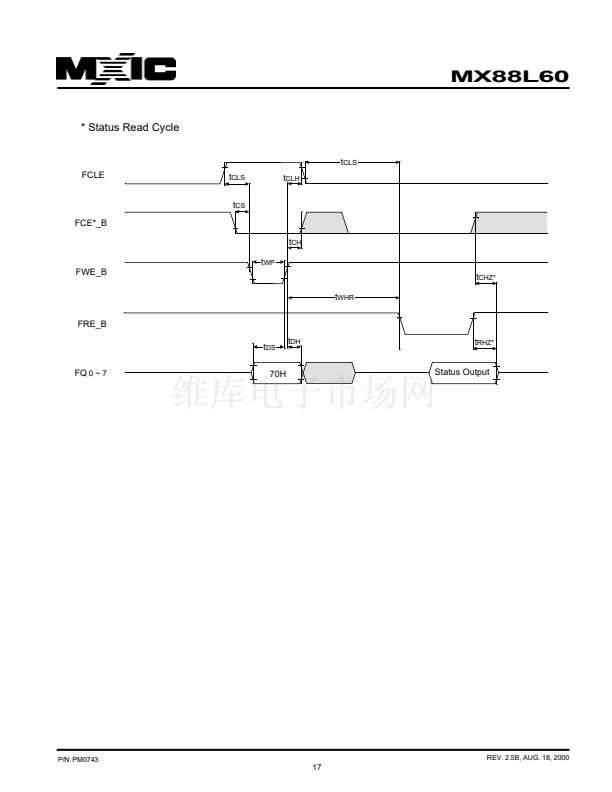

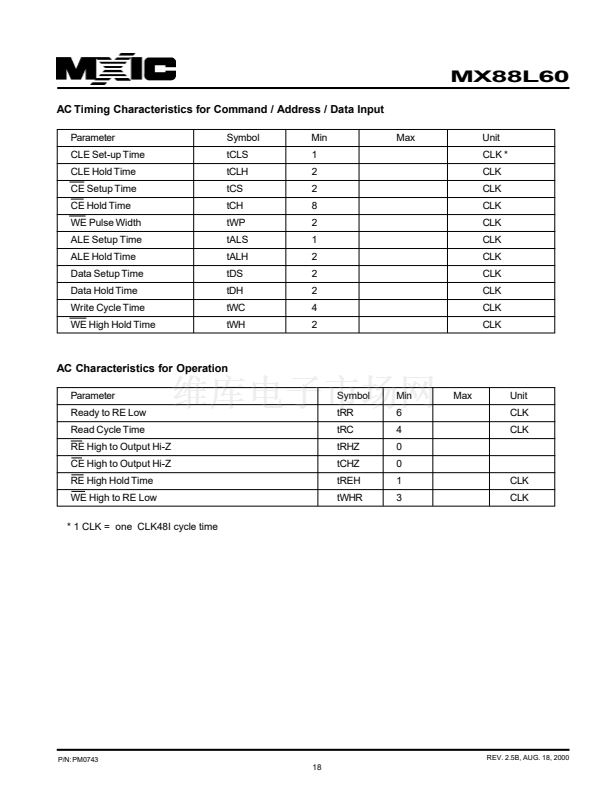

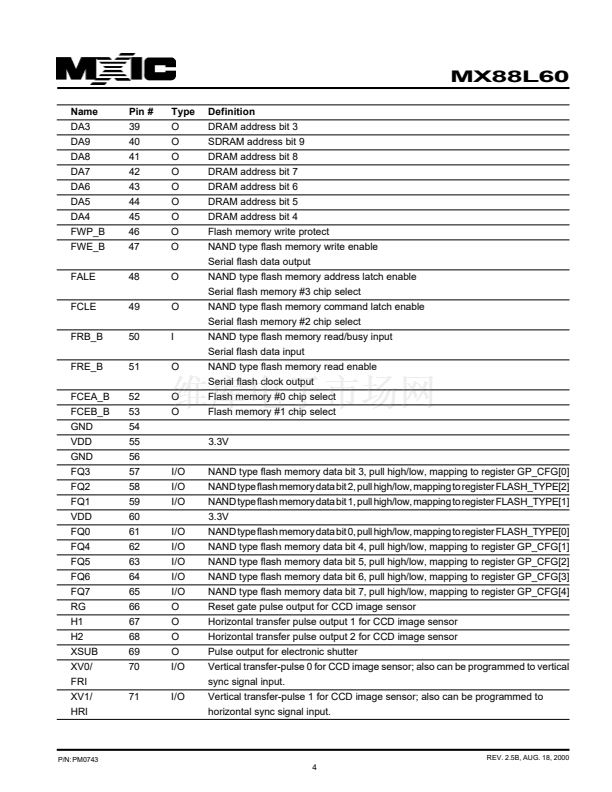

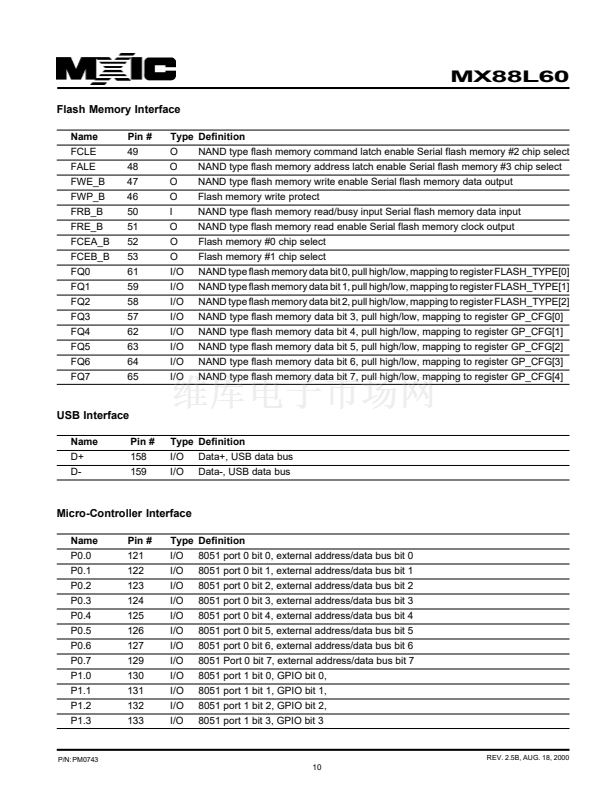

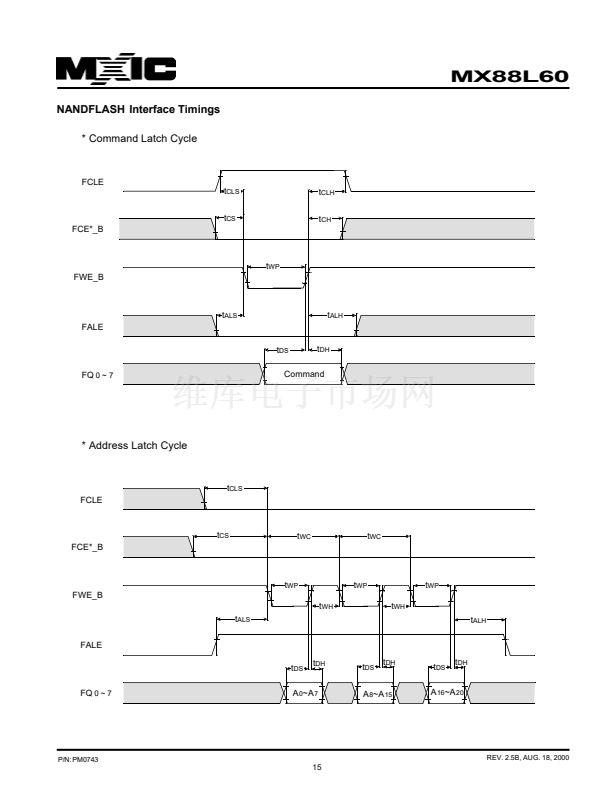

- Support NAND-type Flash memory
(8Mb,16Mb,32Mb,64Mb) x1 or x2
- Support serial Flash memory (MX25L4004, 4Mb) x1,
x2,x3 or x4
- Support Compact Flash card and Smart Media card.
- Support NDR-type Flash memory (16Mb,32Mb,64Mb)
- Support EEPROM for sensor information
- Support Flash memory format function, controlled
by PC software
P/N: PM0743
鈥?/div>
PC Interface
- High speed USB interface with embedded transceiver
- UART interface with external transceiver, for best
backward compatibility
鈥?/div>
Portable Mode Additional Features

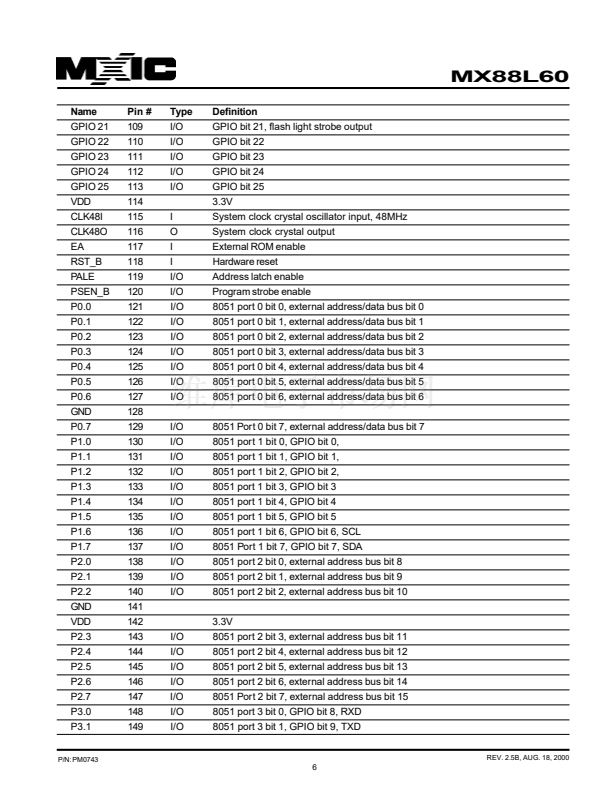

- Embedded 8051 micro-controller
- Support external ROM code storage at Flash memory
or EPROM
- Embedded real-time-clock (RTC) for time stamp
* Adjusted by PC software
* On-System programming capability at portable
mode
- Support monochrome TN LCD for information
display. The logos include:
* Date
* Time
* Number of pictures left: 2 or 3 digits
* Flash light status: ON/OFF/AUTO
* Self Timer: On, Off, and Flash when push the snap
shot button
* Battery status: High, low, and empty
* Continuous shots: On and Off
* Quality (compression rate): Best, Better, Good
(total 8 classes actually)
* Image size: Full, 1/2
- Support self timer function
- Support melody IC for singling control when
* Initialization
* Self timer
* Snap shot
* Low battery
* Failure shot
- Support flashlight charge control
鈥?/div>
Miscellaneous

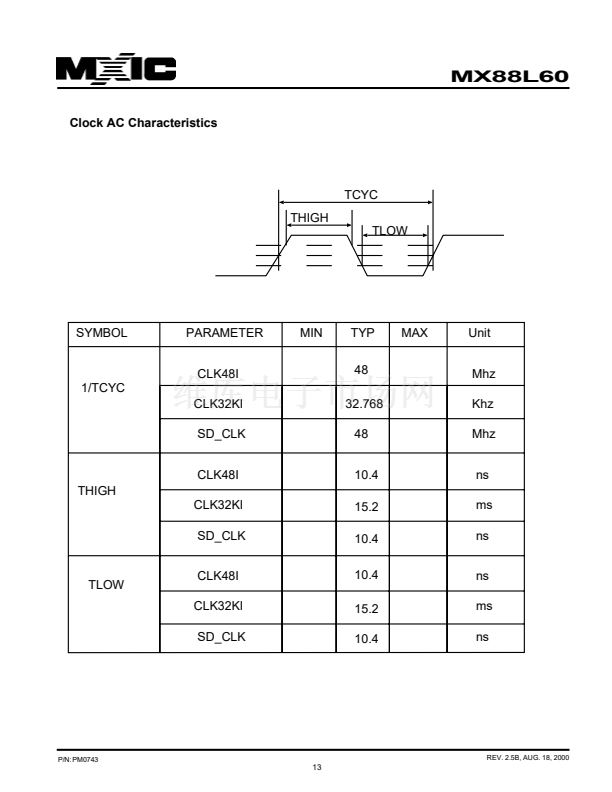

- 48 MHz system clock operation
- Dedicated sensor clock input(optional)

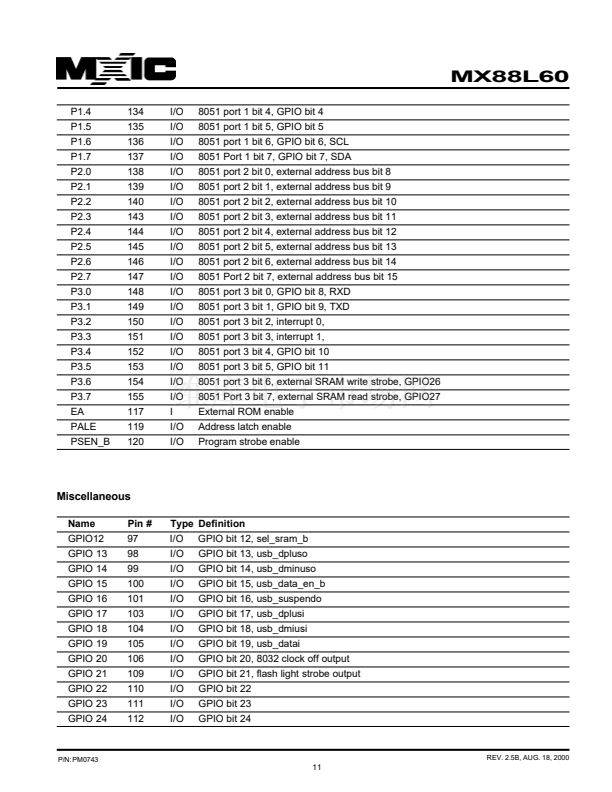

- Built in 27 general-purpose I/O pins

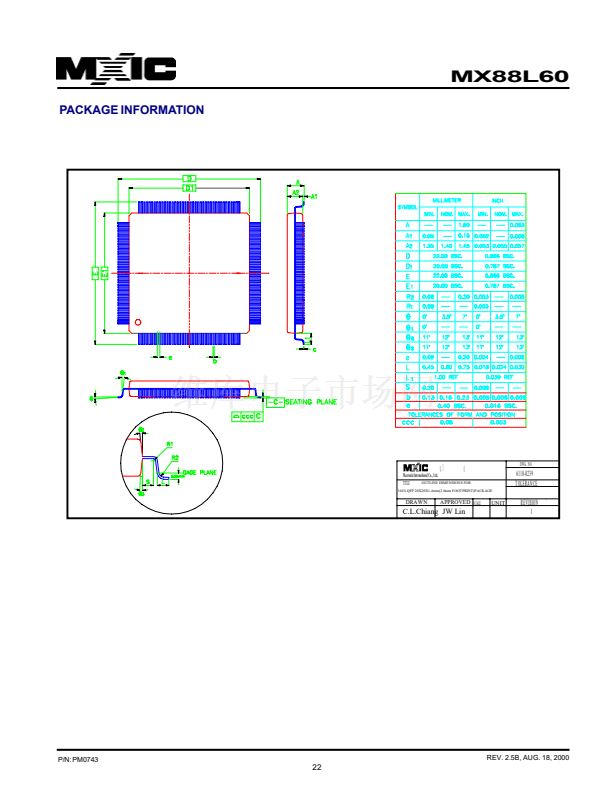

- 160 pin LQFP
1
REV. 2.5B, AUG. 18, 2000
