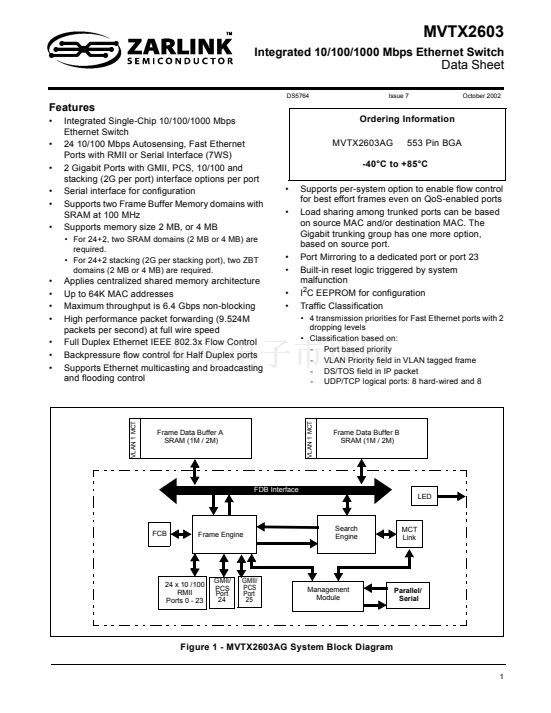

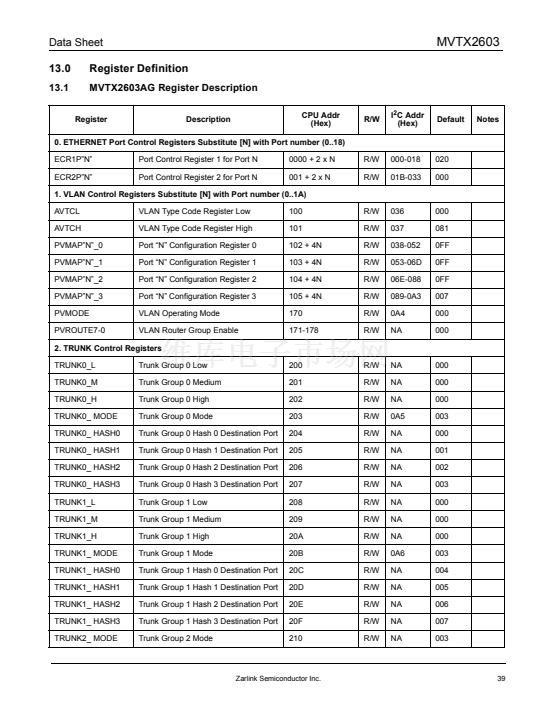

MVTX2603

Integrated 10/100/1000 Mbps Ethernet Switch

Data Sheet

October 2002

DS5764

Issue 7

Features

鈥?/div>

Integrated Single-Chip 10/100/1000 Mbps

Ethernet Switch

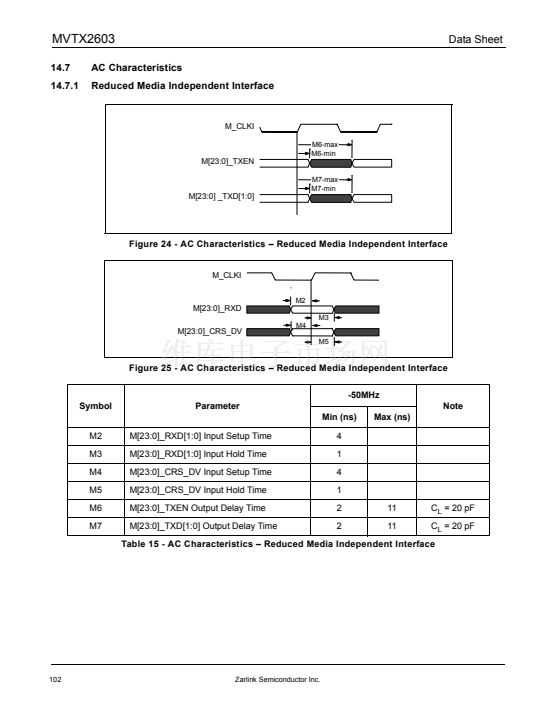

24 10/100 Mbps Autosensing, Fast Ethernet

Ports with RMII or Serial Interface (7WS)

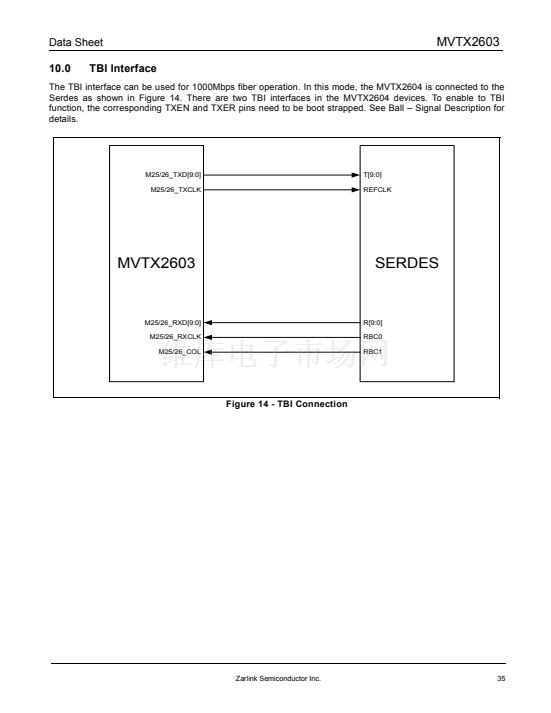

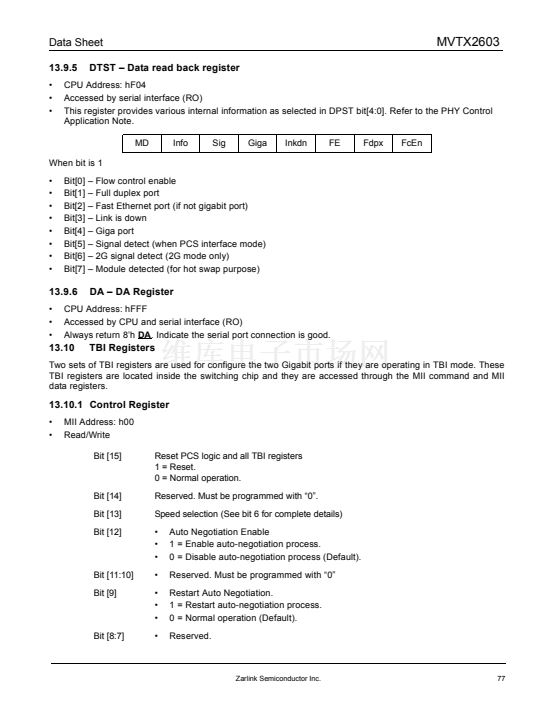

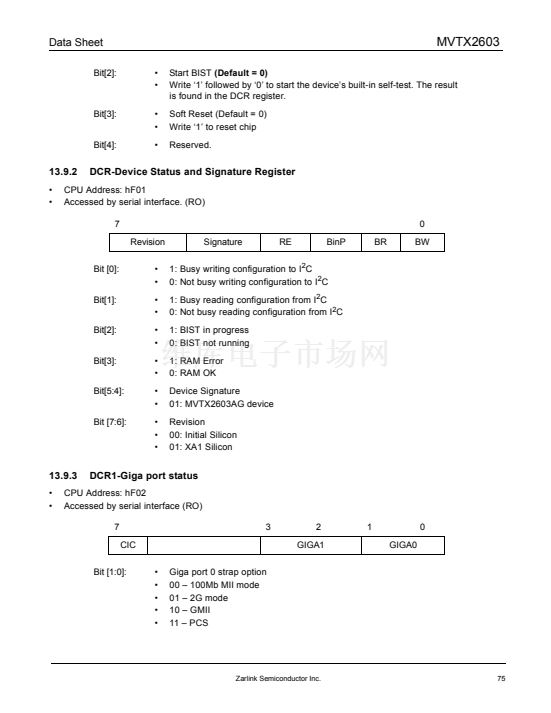

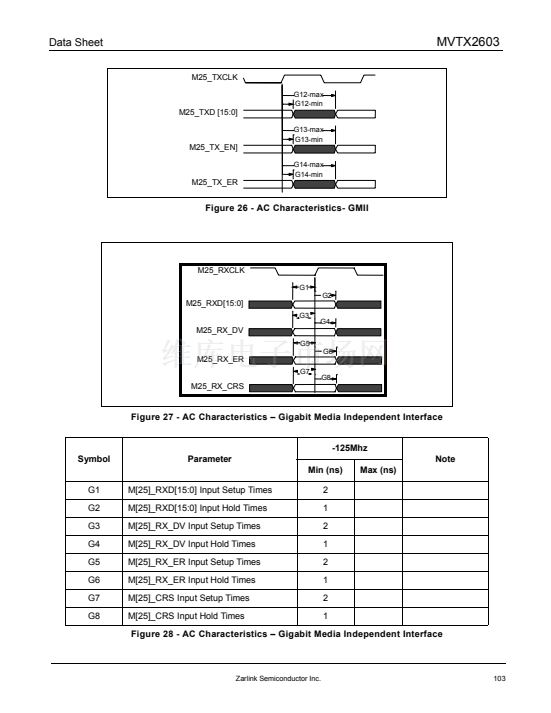

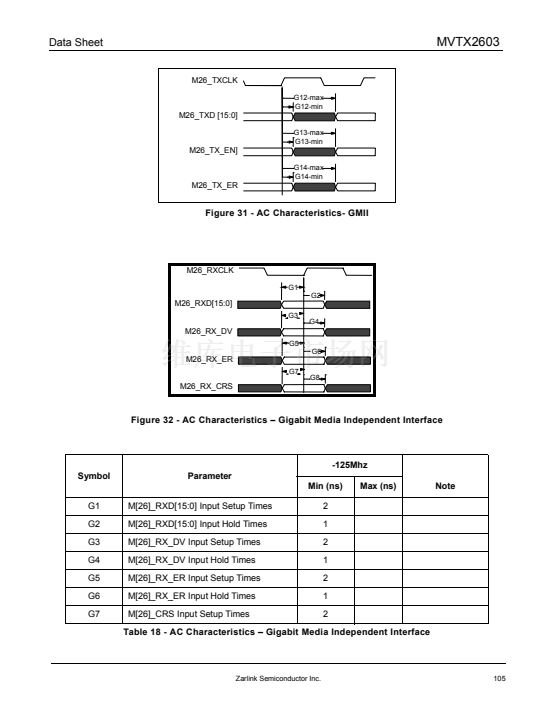

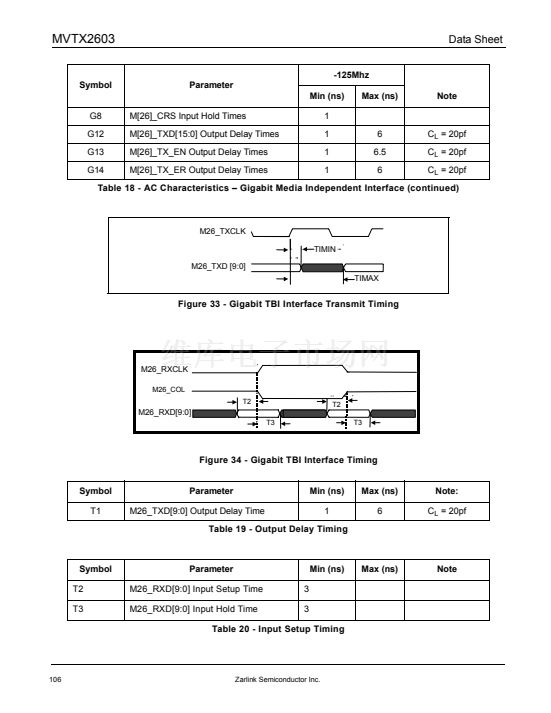

2 Gigabit Ports with GMII, PCS, 10/100 and

stacking (2G per port) interface options per port

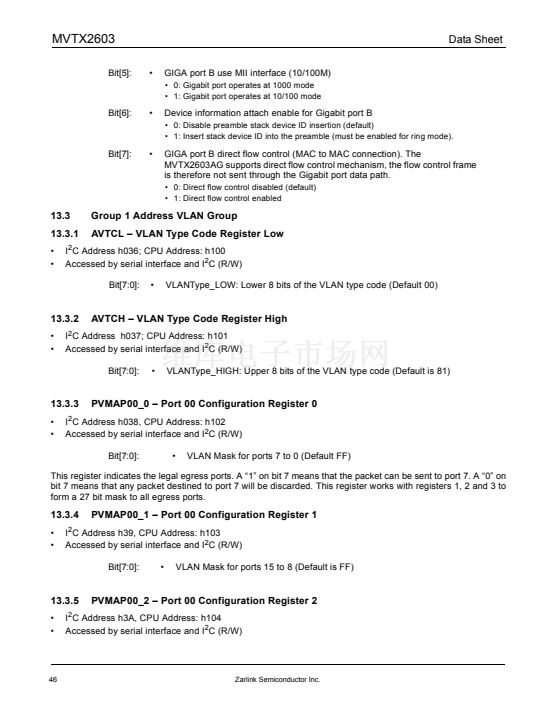

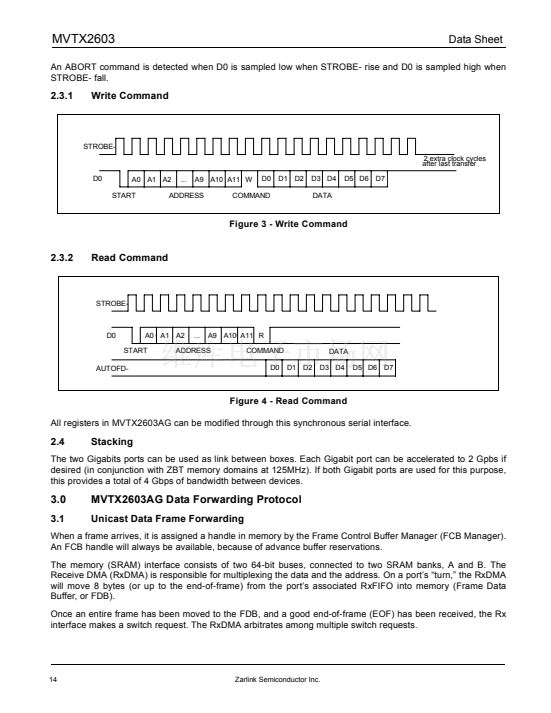

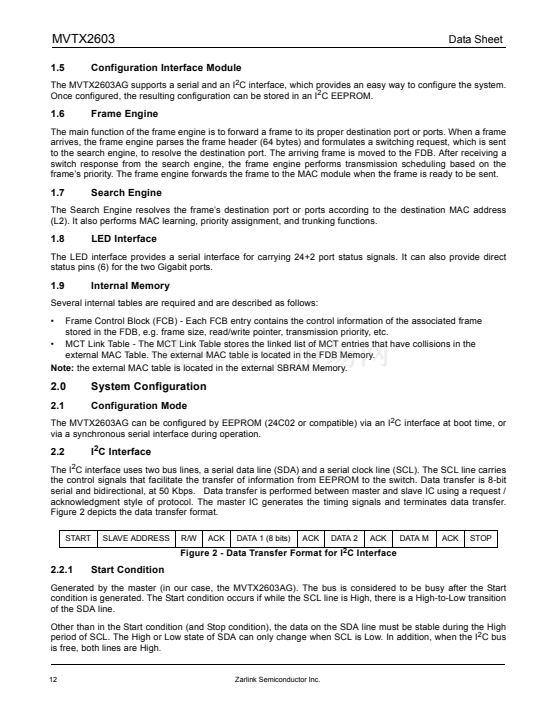

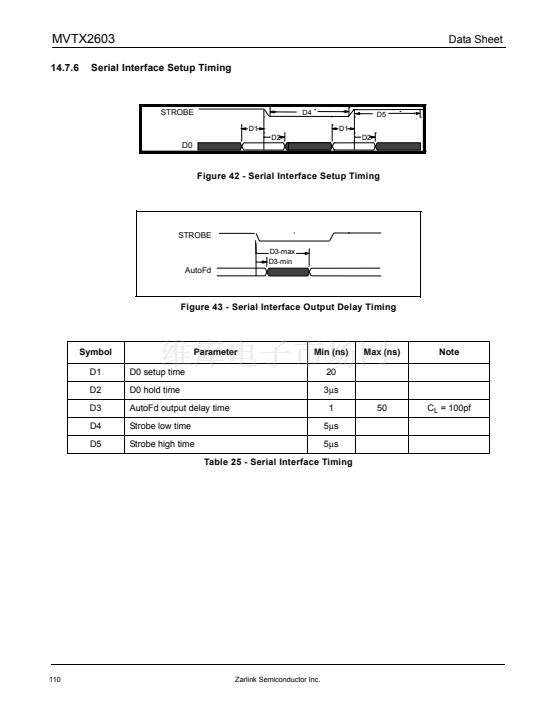

Serial interface for configuration

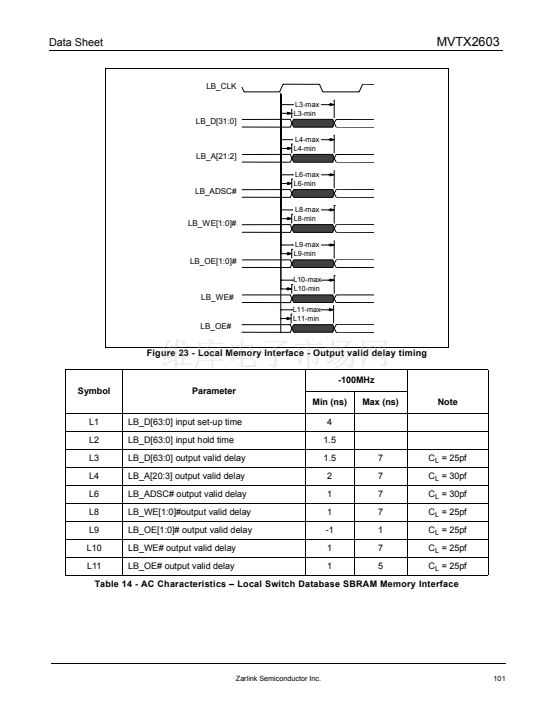

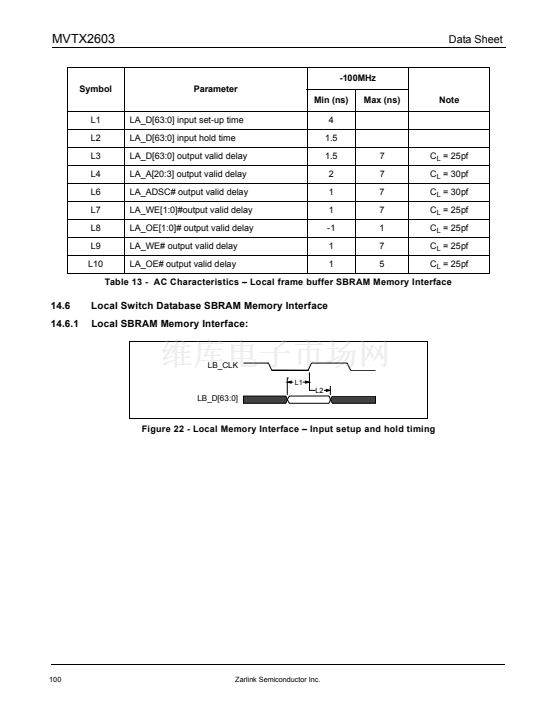

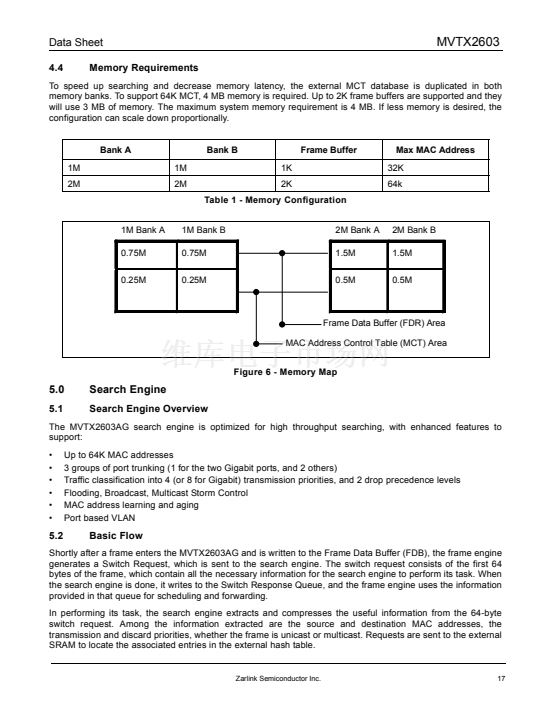

Supports two Frame Buffer Memory domains with

SRAM at 100 MHz

Supports memory size 2 MB, or 4 MB

鈥?For 24+2, two SRAM domains (2 MB or 4 MB) are

required.

鈥?For 24+2 stacking (2G per stacking port), two ZBT

domains (2 MB or 4 MB) are required.

Ordering Information

MVTX2603AG

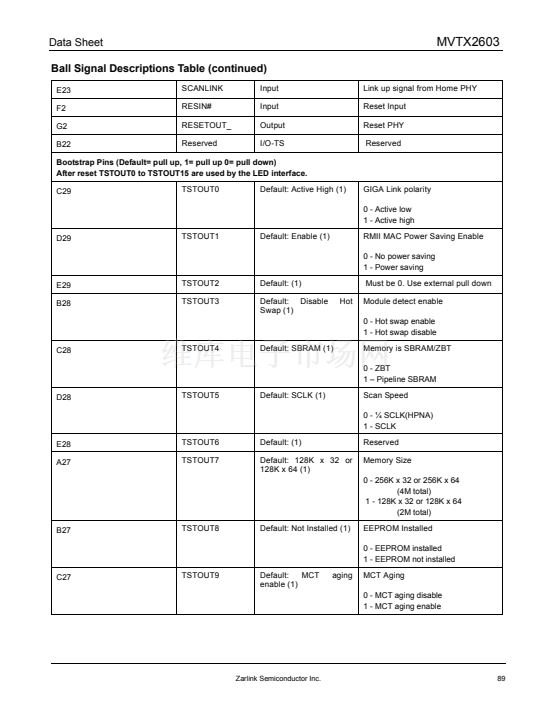

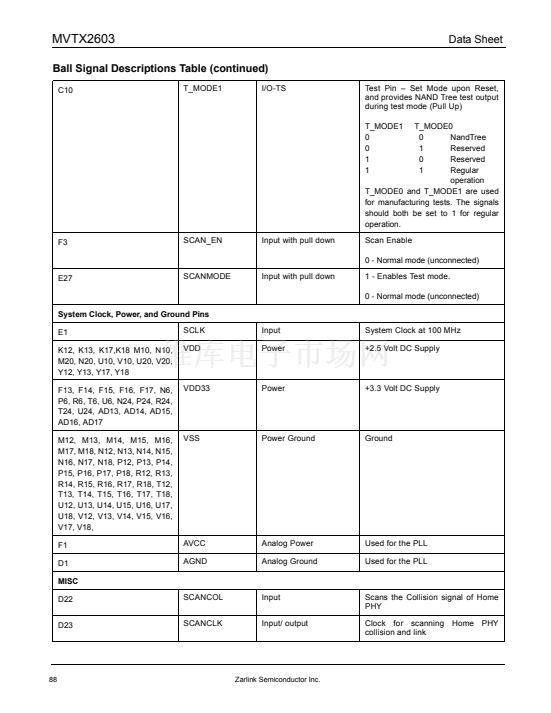

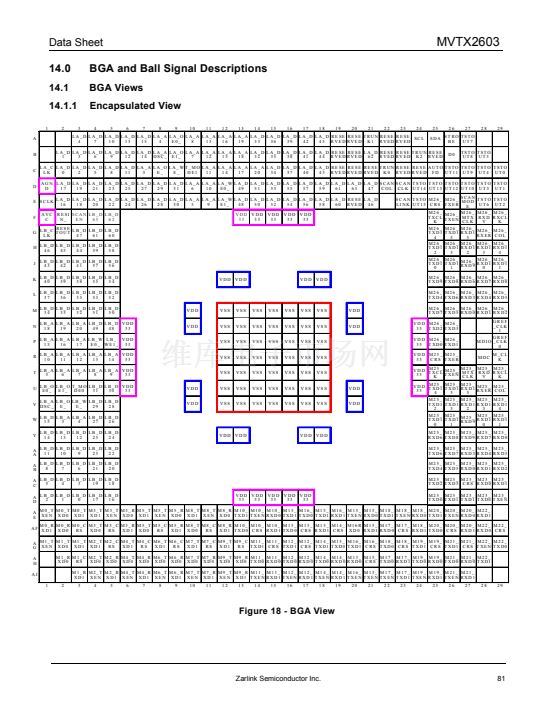

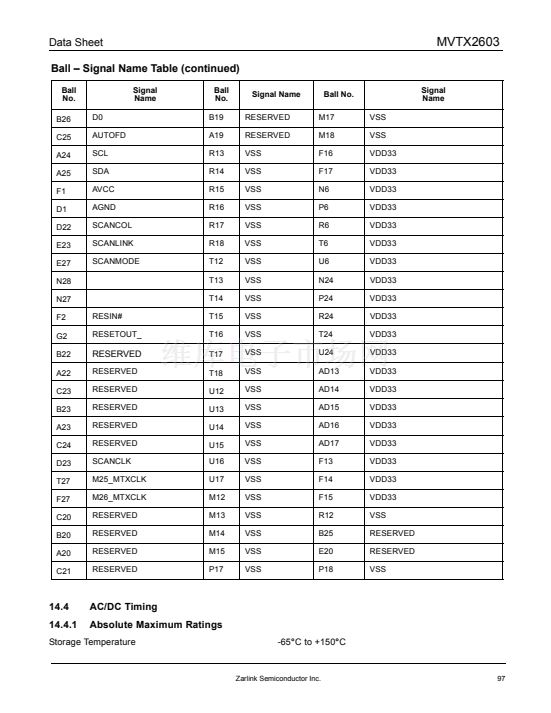

553 Pin BGA

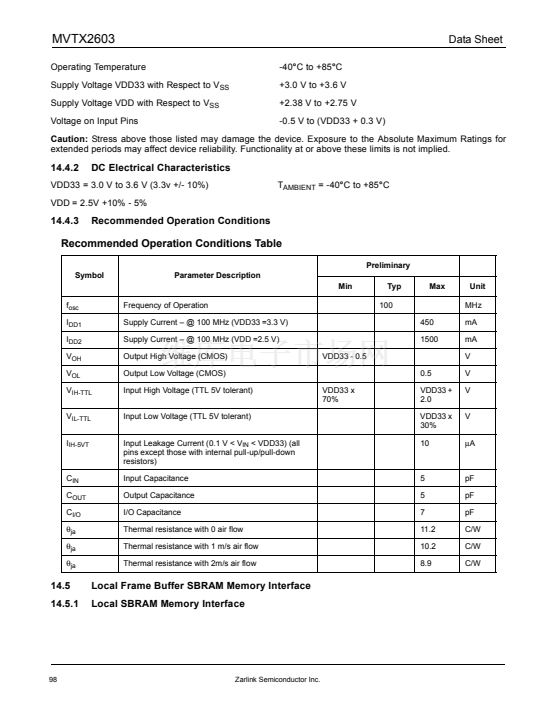

-40擄C to +85擄C

鈥?/div>

Supports per-system option to enable flow control

for best effort frames even on QoS-enabled ports

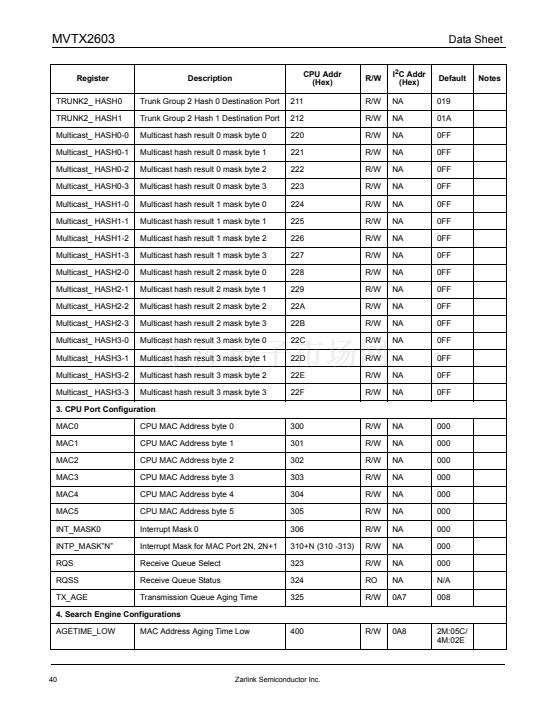

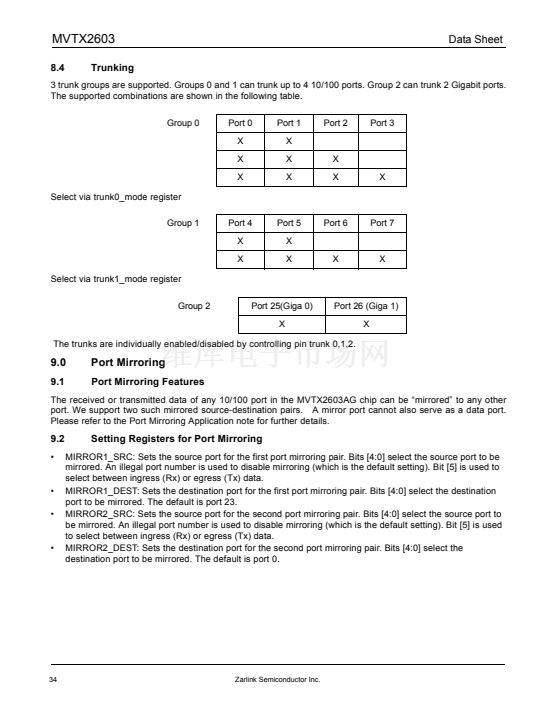

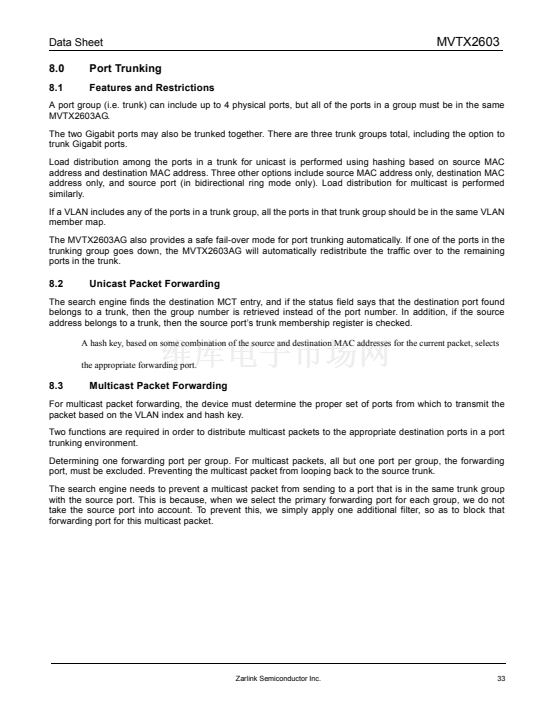

Load sharing among trunked ports can be based

on source MAC and/or destination MAC. The

Gigabit trunking group has one more option,

based on source port.

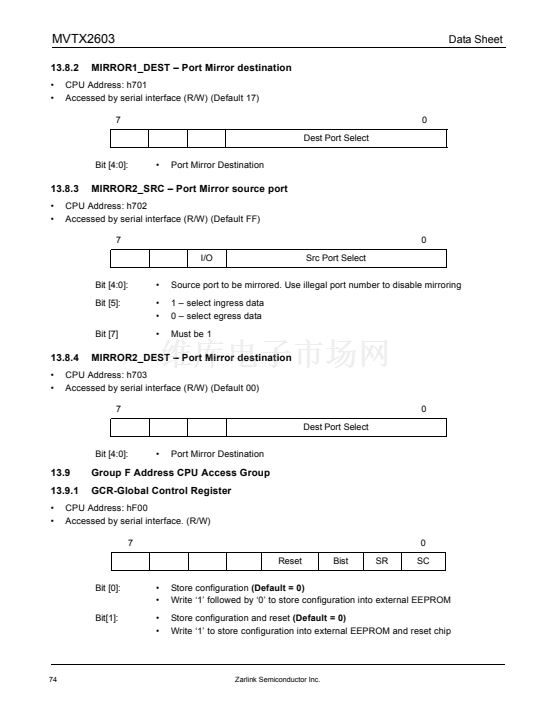

Port Mirroring to a dedicated port or port 23

Built-in reset logic triggered by system

malfunction

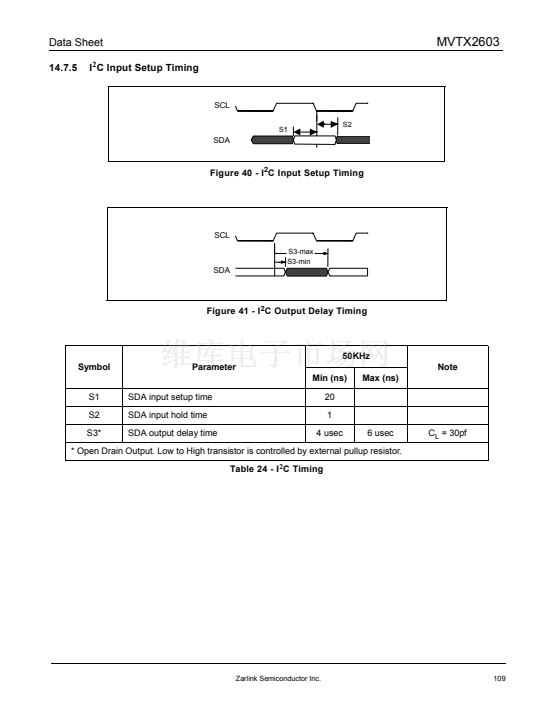

C EEPROM for configuration

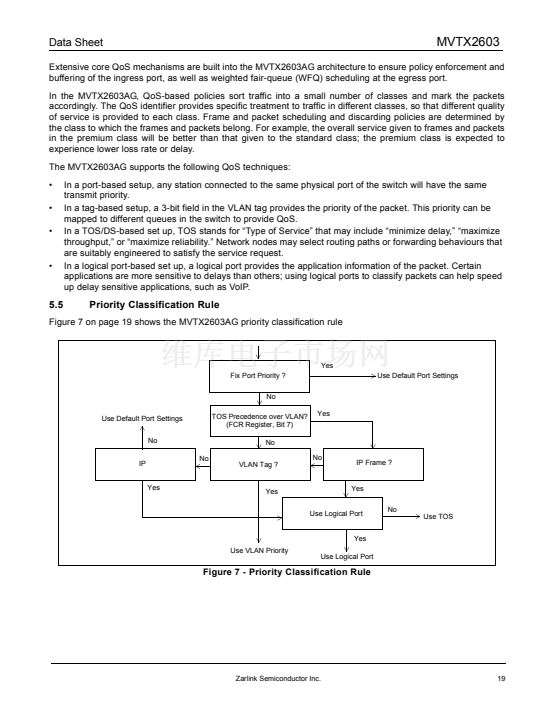

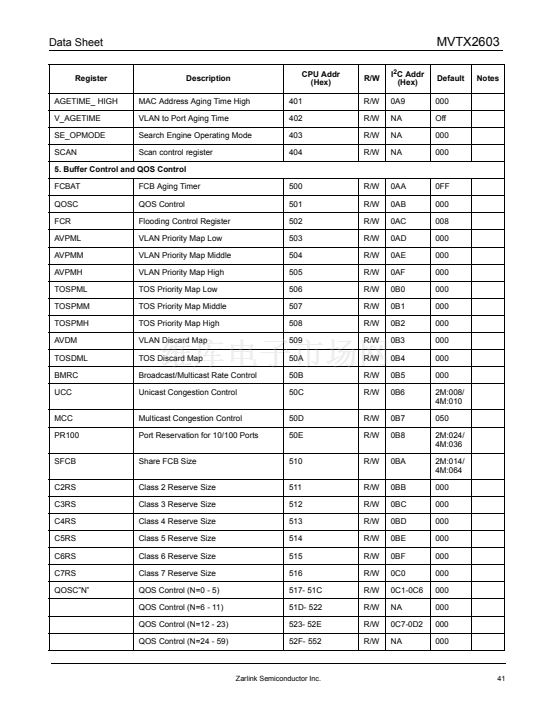

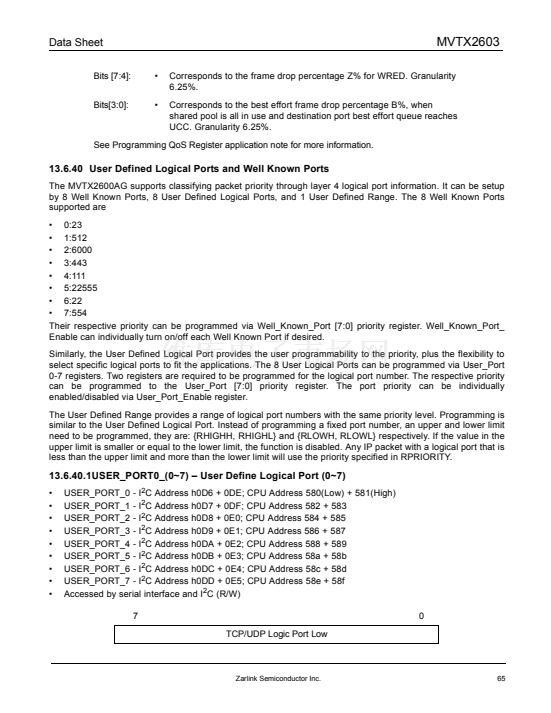

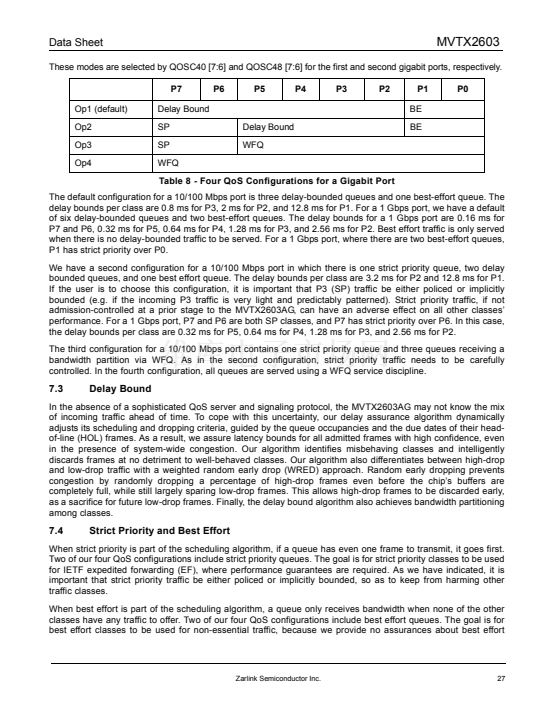

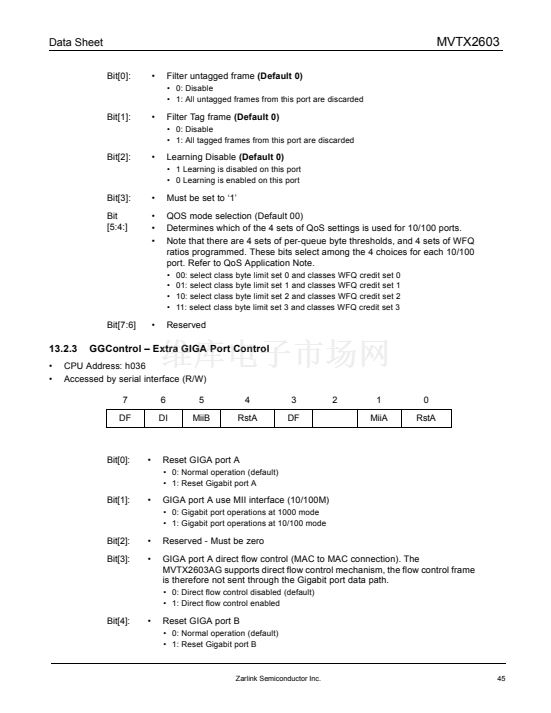

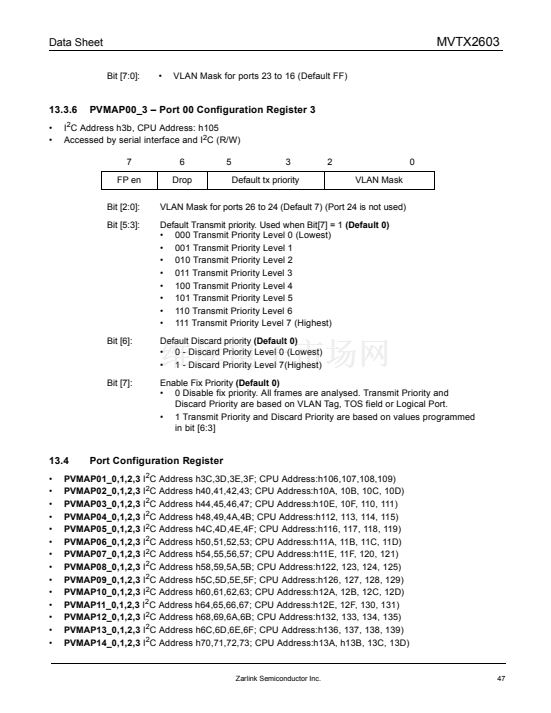

Traffic Classification

鈥?4 transmission priorities for Fast Ethernet ports with 2

dropping levels

鈥?Classification based on:

- Port based priority

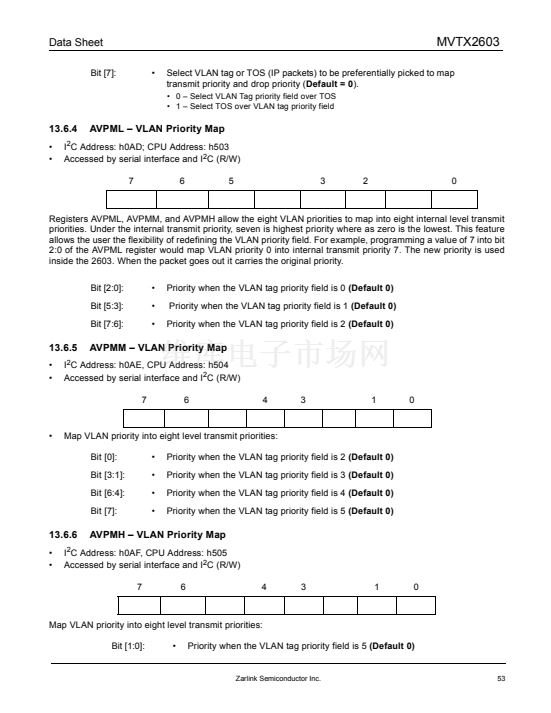

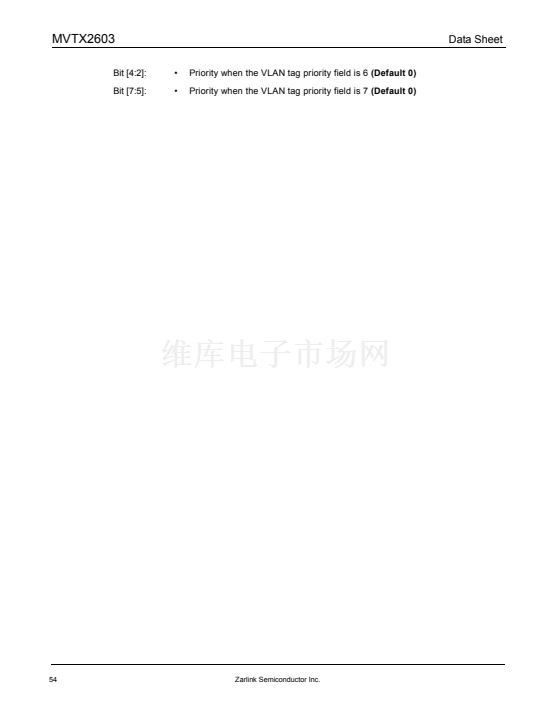

- VLAN Priority field in VLAN tagged frame

- DS/TOS field in IP packet

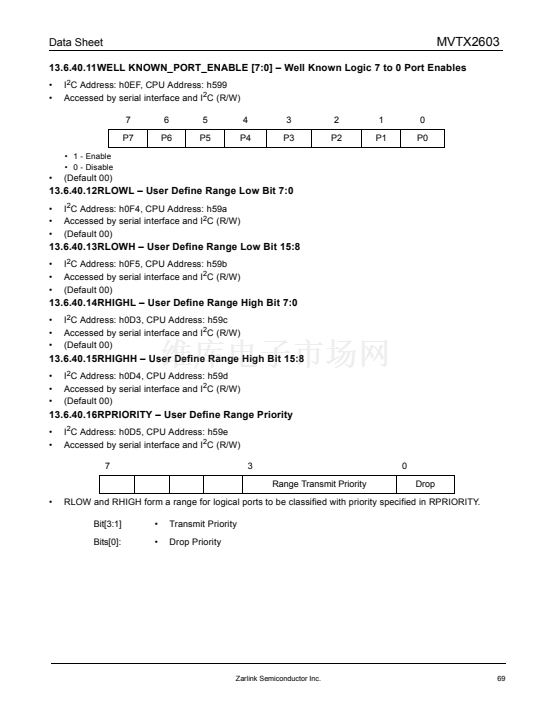

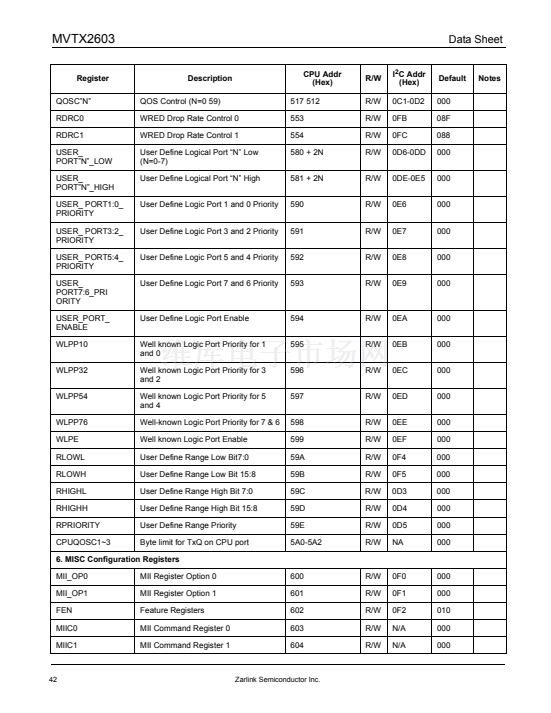

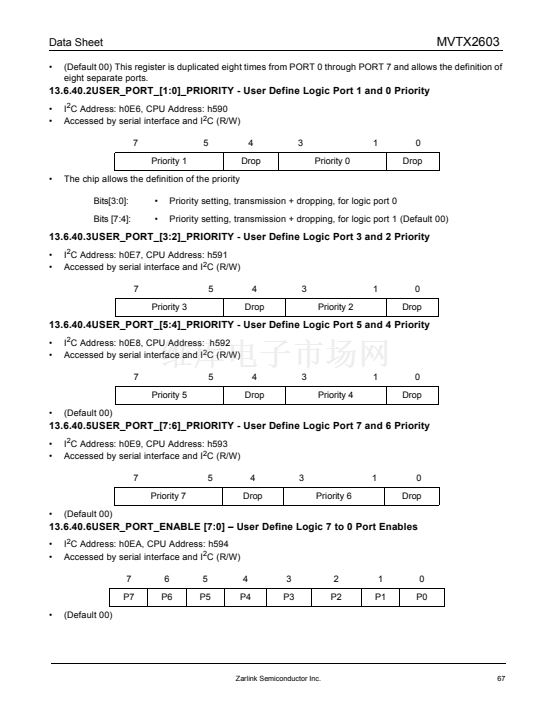

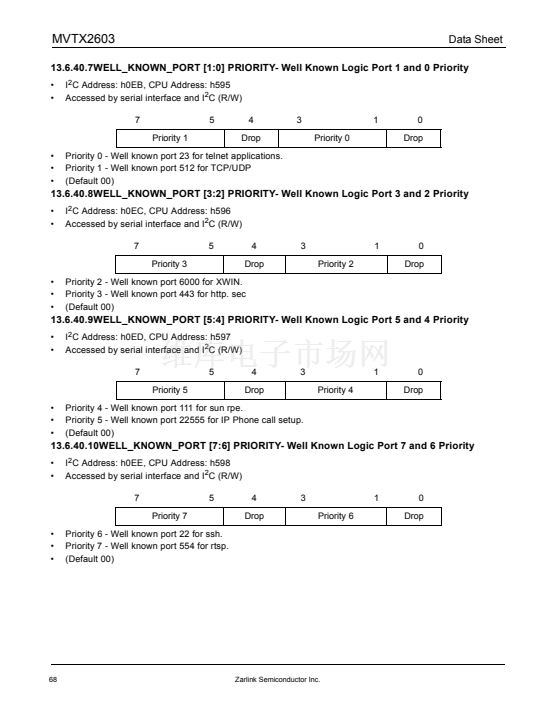

- UDP/TCP logical ports: 8 hard-wired and 8

鈥?/div>

Applies centralized shared memory architecture

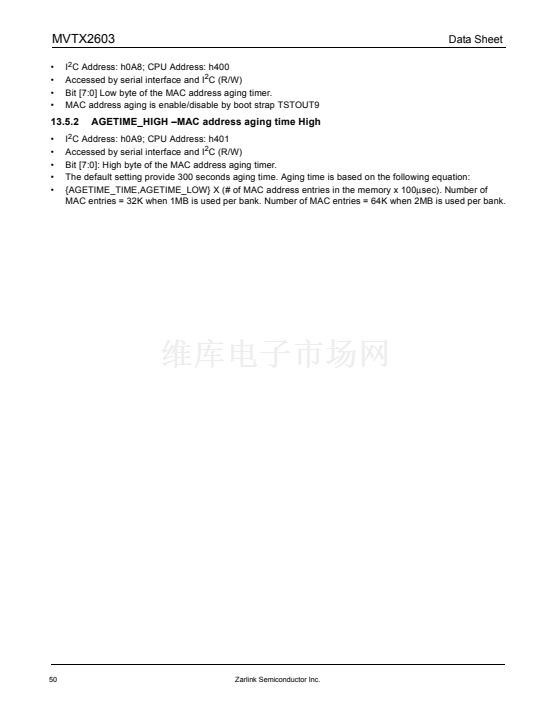

Up to 64K MAC addresses

Maximum throughput is 6.4 Gbps non-blocking

High performance packet forwarding (9.524M

packets per second) at full wire speed

Full Duplex Ethernet IEEE 802.3x Flow Control

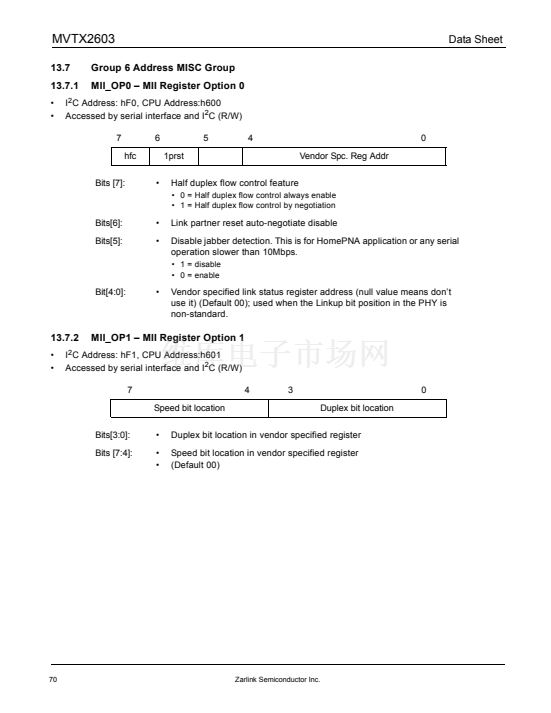

Backpressure flow control for Half Duplex ports

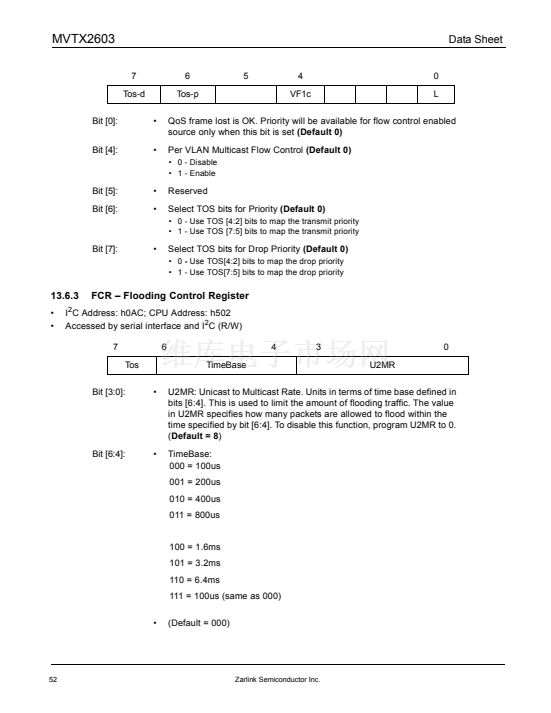

Supports Ethernet multicasting and broadcasting

and flooding control

VLAN 1 MCT

Frame Data Buffer A

SRAM (1M / 2M)

VLAN 1 MCT

Frame Data Buffer B

SRAM (1M / 2M)

FDB Interface

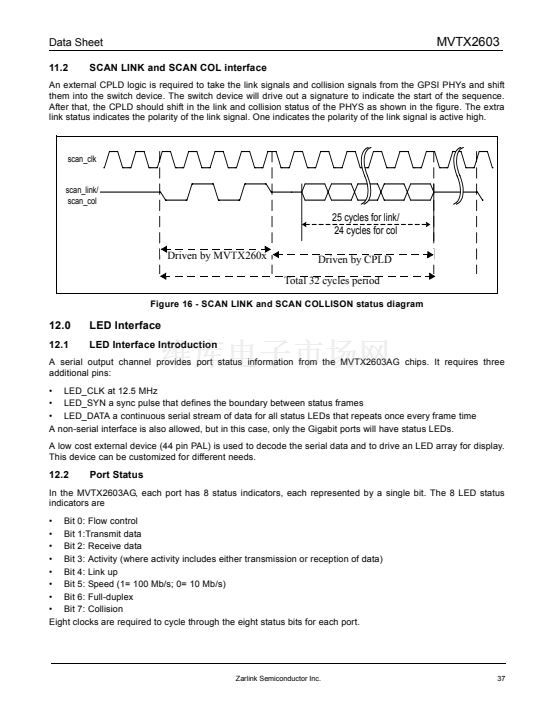

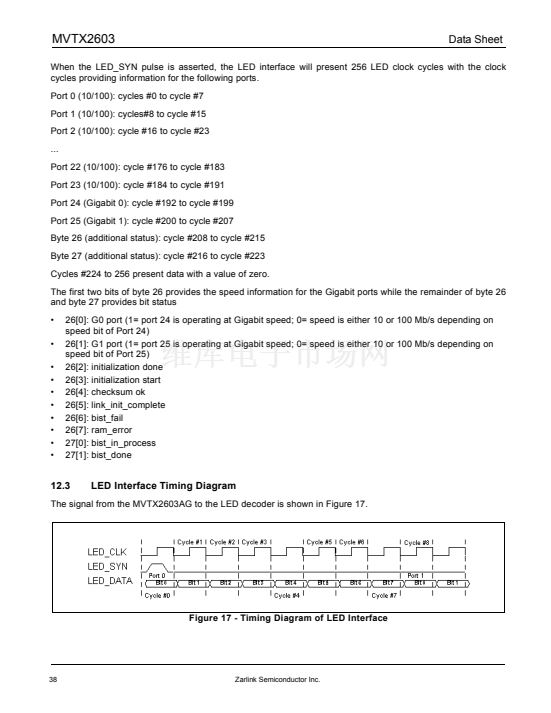

LED

FCB

Frame Engine

Engine

MCT

Link

24 x 10 /100

RMII

Ports 0 - 23

GMII/

PCS

Port

GMII/

PCS

Port

Management

Module

Parallel/

Serial

Figure 1 - MVTX2603AG System Block Diagram
