MURP20040CT Datasheet

  • MURP20040CT

  • ULTRAFAST RECTIFIER 200 AMPERES

  • 140.32KB

  • 6頁

  • MOTOROLA   MOTOROLA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document
by MURP20040CT/D
鈩?/div>
Data Sheet
SWITCHMODE
鈩?/div>
Designer's
MURP20040CT
Ultrafast Power Rectifier
POWERTAP鈩?II Package
Features mesa epitaxial construction with glass passivation. Ideally suited
high frequency switching power supplies; free wheeling diodes and polarity
protection diodes.
鈥?/div>
Stable, High Temperature, Glass Passivated Junction
鈥?/div>
Monolithic Dual Die Construction. May be Paralleled for High Current
Output
Mechanical Characteristics:
鈥?/div>
Case: Molded Epoxy with Metal Heatsink Base
鈥?/div>
Weight: 80 grams (approximately)
鈥?/div>
Finish: All External Surfaces Corrosion Resistant
鈥?/div>
Base Plate Torques: See procedure given in the Package Outline Section
鈥?/div>
Shipped 25 units per tray
鈥?/div>
Marking: URP20040CT
MAXIMUM RATINGS
Rating
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
(At Rated VR, TC = 115擄C)
Peak Repetitive Forward Current
(At Rated VR, Square Wave, 20 kHz, TC = 115擄C)
Per Leg
Per Package
Per Leg
Symbol
VRRM
VRWM
VR
IO
IFRM
IFSM
Tstg, TC
TJ
Per Leg
Rtjc
Value
400
Unit
Volts
1
2
3
ULTRAFAST
RECTIFIER
200 AMPERES
CASE 357C鈥?03
POWERTAP II
100
200
200
800
鈥?55 to +150
鈥?55 to +175
Amps
Amps
Amps
擄C
擄C
擄C/W
Non-Repetitive Peak Surge Current
Per Package
(Surge applied at rated load conditions, halfwave, single phase, 60 Hz)
Storage/Operating Case Temperature
Operating Junction Temperature
THERMAL CHARACTERISTICS
Thermal Resistance 鈥?Junction鈥搕o鈥揅ase
0.5
ELECTRICAL CHARACTERISTICS

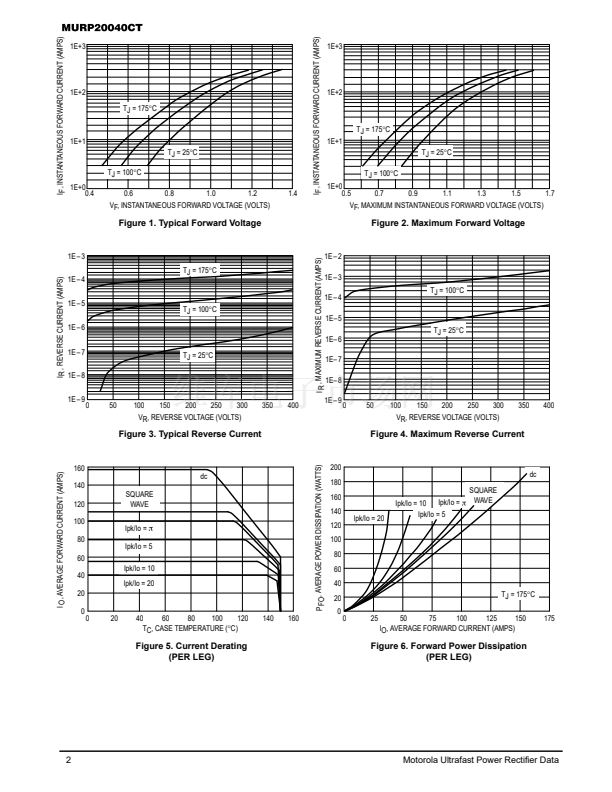

Maximum Instantaneous Forward Voltage ( ) see Figure 2
g (1),
g
(IF = 100 A)
(IF = 200 A)
Maximum Instantaneous Reverse Current, see Figure 4
g
(VR = 400 V)
(VR = 200 V)
Typical Reverse Recovery Time ( )
yp
y
(2)
(IF = 1.0 A, di/dt = 50 A/
m
s)
1 0 A di/d
)
Typical Peak Reverse Recovery Current
yp
y
(IF = 1.0 A, di/dt = 50 A/
m
s)
1 0 A di/d
)
(1) Pulse Test: Pulse Width
鈮?/div>
250
碌s,
Duty Cycle
鈮?/div>
2%.
(2) TRR measured projecting from 25% of IRM to ground.
POWERTAP and SWITCHMODE are trademarks of Motorola, Inc.
This document contains information on a product under development. Motorola reserves the right to change or discontinue this product without notice.
Per Leg
g
VF
TJ = 25擄C
1.3
1.5
TJ = 25擄C
5.0
0.8
TJ = 25擄C
85
TJ = 25擄C
鈥?.0
TJ = 100擄C
1.2
1.4
TJ = 100擄C
193
61
Volts
Per Leg
g
IR
m
A
Per Leg
g
Per Leg
g
TRR
IRM
ns
Amps
p
漏
Motorola Ultrafast Power Rectifier Data
Motorola, Inc. 1995
1
