MURHB840CT

Preferred Device

MEGAHERTZ鈩?/div>

Power Rectifier

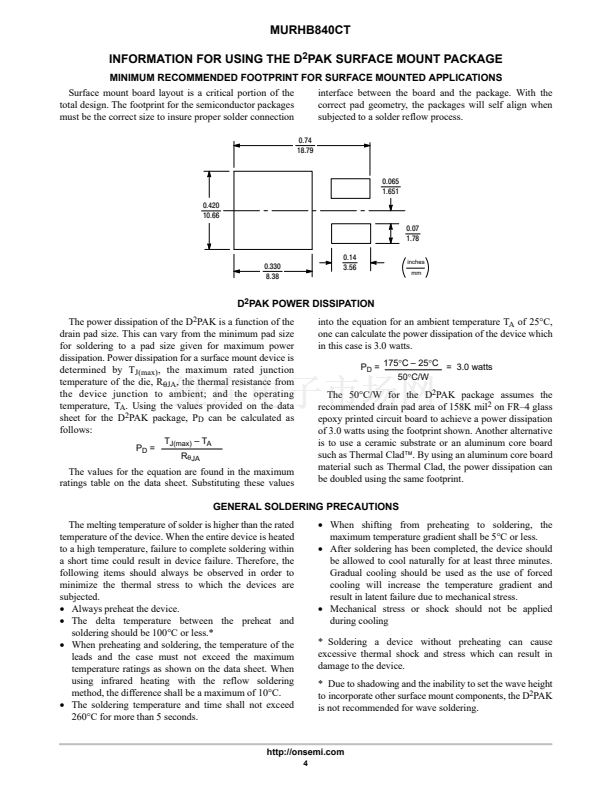

PAK Power Surface Mount Package

Designed for use in switching power supplies, inverters and as free

wheeling diodes, these state鈥搊f鈥搕he鈥揳rt devices have the following

features:

http://onsemi.com

鈥?/div>

Package Designed for Power Surface Mount Applications

Ultrafast 28 Nanosecond Recovery Times

175擄C Operating Junction Temperature

Epoxy Meets UL94, V

@ 1/8鈥?/div>

High Temperature Glass Passivated Junction

High Voltage Capability

Low Leakage Specified @ 150擄C Case Temperature

Short Heat Sink Tab Manufactured 鈥?Not Sheared!

Similar in Size to Industrial Standard TO鈥?20 Package

ULTRAFAST

RECTIFIER

8.0 AMPERES

400 VOLTS

Mechanical Characteristics

鈥?/div>

Case: Epoxy, Molded

鈥?/div>

Weight: 1.7 grams (approximately)

鈥?/div>

Finish: All External Surfaces Corrosion Resistant and Terminal

鈥?/div>

Leads are Readily Solderable

Lead and Mounting Surface Temperature for Soldering Purposes:

260擄C Max. for 10 Seconds

Shipped 50 units per plastic tube

Available in 24 mm Tape and Reel, 800 units per reel by adding a

鈥淭4鈥?suffix to the part number

Marking: UH840

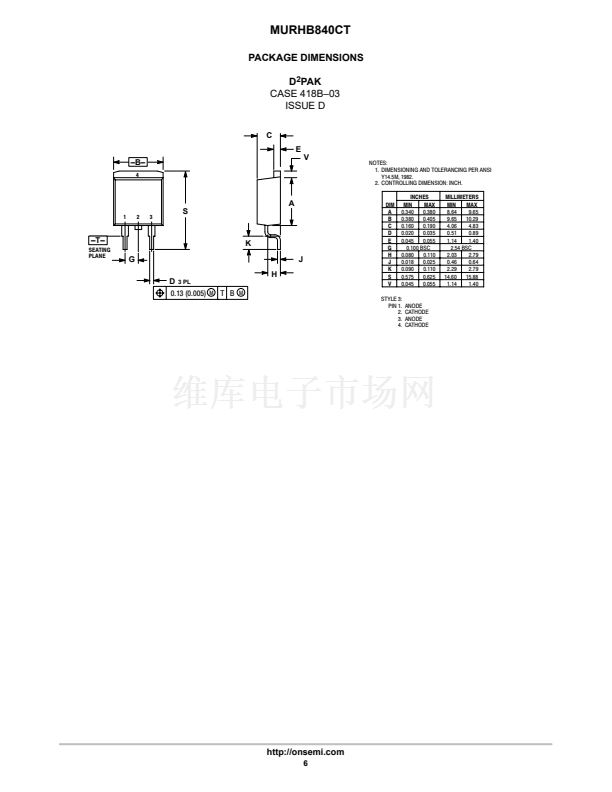

PAK

CASE 418B

STYLE 3

MARKING DIAGRAM

MAXIMUM RATINGS

(Per Leg)

Rating

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

Average Rectified Forward Current

(Rated V

, T

= 120擄C) Total Device

Peak Repetitive Forward Current

(Rated V

, Square Wave,

20 kHz, T

= 120擄C)

Non鈥揜epetitive Peak Surge Current

(Surge Applied at Rated Load

Conditions Halfwave, Single

Phase, 60 Hz)

Controlled Avalanche Energy

Operating Junction and Storage

Temperature Range

Symbol

RRM

RWM

F(AV)

Value

400

Unit

UH840

4.0

8.0

UH840 = Device Code

ORDERING INFORMATION

FSM

100

Device

MURHB840CT

AVAL

, T

stg

鈥?5 to +175

擄C

Preferred

devices are recommended choices for future use

and best overall value.

Package

PAK

Shipping

50 Units/Rail

800/Tape & Reel

MURHB840CTT4

漏

Semiconductor Components Industries, LLC, 2000

October, 2000 鈥?Rev. 2

Publication Order Number:

MURHB840CT/D
