MURH860CT/D Datasheet

  • MURH860CT/D

  • MEGAHERTZ? Power Rectifier

  • 4頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

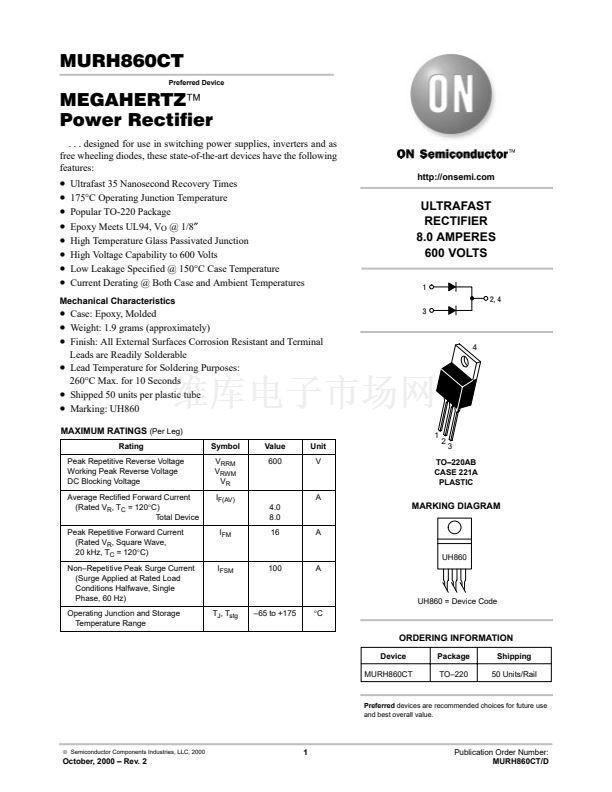

MURH860CT
Preferred Device
MEGAHERTZ鈩?/div>
Power Rectifier
. . . designed for use in switching power supplies, inverters and as
free wheeling diodes, these state-of-the-art devices have the following
features:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Ultrafast 35 Nanosecond Recovery Times
175擄C Operating Junction Temperature
Popular TO-220 Package
Epoxy Meets UL94, V
O
@ 1/8鈥?/div>
High Temperature Glass Passivated Junction
High Voltage Capability to 600 Volts
Low Leakage Specified @ 150擄C Case Temperature
Current Derating @ Both Case and Ambient Temperatures
http://onsemi.com
ULTRAFAST
RECTIFIER
8.0 AMPERES
600 VOLTS
1
2, 4
3
Mechanical Characteristics
鈥?/div>
Case: Epoxy, Molded
鈥?/div>
Weight: 1.9 grams (approximately)
鈥?/div>
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
鈥?/div>
Lead Temperature for Soldering Purposes:
260擄C Max. for 10 Seconds
鈥?/div>
Shipped 50 units per plastic tube
鈥?/div>
Marking: UH860
MAXIMUM RATINGS
(Per Leg)
Rating
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
(Rated V
R
, T
C
= 120擄C)
Total Device
Peak Repetitive Forward Current
(Rated V
R
, Square Wave,
20 kHz, T
C
= 120擄C)
Non鈥揜epetitive Peak Surge Current
(Surge Applied at Rated Load
Conditions Halfwave, Single
Phase, 60 Hz)
Operating Junction and Storage
Temperature Range
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
4.0
8.0
I
FM
16
A
Value
600
Unit
V
4
1
2
3
TO鈥?20AB
CASE 221A
PLASTIC
A
MARKING DIAGRAM
UH860
I
FSM
100
A
UH860 = Device Code
T
J
, T
stg
鈥?5 to +175
擄C
ORDERING INFORMATION
Device
MURH860CT
Package
TO鈥?20
Shipping
50 Units/Rail
Preferred
devices are recommended choices for future use
and best overall value.
漏
Semiconductor Components Industries, LLC, 2000
1
October, 2000 鈥?Rev. 2
Publication Order Number:
MURH860CT/D
