MURF1660CT

Preferred Device

SWITCHMODE鈩?/div>

Power Rectifier

Designed for use in switching power supplies, inverters and as free

wheeling diodes, these state鈥搊f鈥搕he鈥揳rt devices have the following

features:

鈥?/div>

Ultrafast 60 Nanosecond Recovery Times

150擄C Operating Junction Temperature

Epoxy Meets UL94, V

@ 1/8鈥?/div>

High Temperature Glass Passivated Junction

Low Leakage Specified @ 150擄C Case Temperature

Current Derating @ Both Case and Ambient Temperatures

Electrically Isolated. No Isolation Hardware Required.

UL Recognized File #E69369 (Note 1.)

http://onsemi.com

ULTRAFAST

RECTIFIER

16 AMPERES

600 VOLTS

Mechanical Characteristics

鈥?/div>

Case: Epoxy, Molded

鈥?/div>

Weight: 1.9 grams (approximately)

鈥?/div>

Finish: All External Surfaces Corrosion Resistant and Terminal

Leads are Readily Solderable

鈥?/div>

Lead Temperature for Soldering Purposes:

260擄C Max. for 10 Seconds

鈥?/div>

Shipped 50 units per plastic tube

鈥?/div>

Marking: U1660

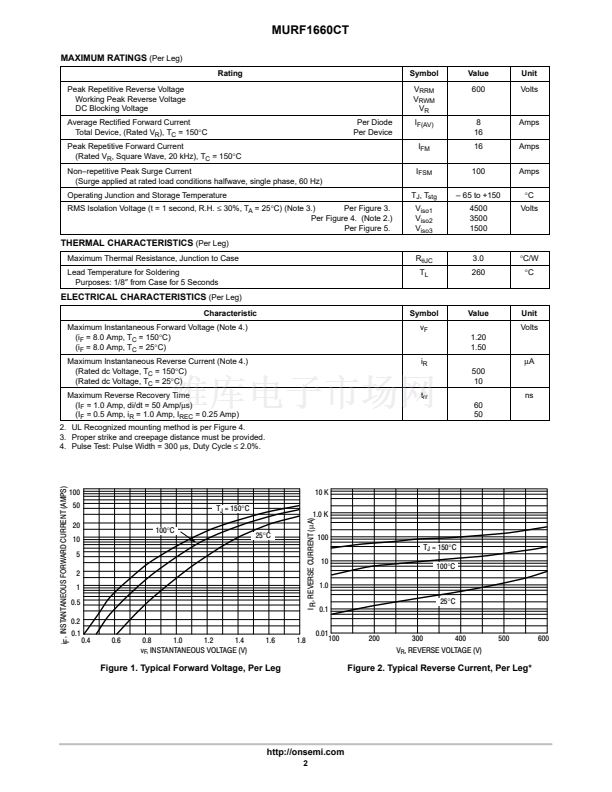

MAXIMUM RATINGS

Please See the Table on the Following Page

1. UL Recognized mounting method is per Figure 4.

ISOLATED TO鈥?20

CASE 221D

STYLE 3

MARKING DIAGRAM

U1660

U1660 = Device Code

ORDERING INFORMATION

Device

MURF1660CT

Package

TO鈥?20

Shipping

50 Units/Rail

Preferred

devices are recommended choices for future use

and best overall value.

漏

Semiconductor Components Industries, LLC, 2000

October, 2000 鈥?Rev. 2

Publication Order Number:

MURF1660CT/D
