MUR820/D Datasheet

  • MUR820/D

  • SWITCHMODE? Power Rectifier

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MUR805, MUR810, MUR815,
MUR820, MUR840, MUR860
Preferred Devices
SWITCHMODE鈩?/div>
Power Rectifiers
. . . designed for use in switching power supplies, inverters and as
free wheeling diodes, these state鈥搊f鈥搕he鈥揳rt devices have the
following features:
http://onsemi.com
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Ultrafast 25, 50 and 75 Nanosecond Recovery Time
175擄C Operating Junction Temperature
Popular TO鈥?20 Package
Epoxy Meets UL94, V
O
@ 1/8鈥?/div>
Low Forward Voltage
Low Leakage Current
High Temperature Glass Passivated Junction
Reverse Voltage to 600 Volts
ULTRAFAST
RECTIFIERS
8.0 AMPERES
50鈥?00 VOLTS
1
4
3
Mechanical Characteristics:
鈥?/div>
Case: Epoxy, Molded
鈥?/div>
Weight: 1.9 grams (approximately)
鈥?/div>
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
鈥?/div>
Lead Temperature for Soldering Purposes:
260擄C Max. for 10 Seconds
鈥?/div>
Shipped 50 units per plastic tube
鈥?/div>
Marking: U805, U810, U815, U820, U840, U860

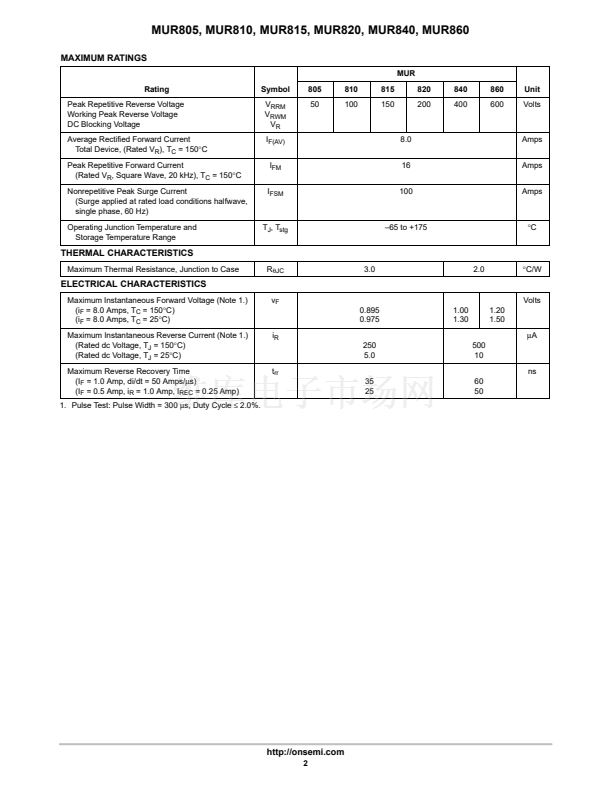

MAXIMUM RATINGS
Please See the Table on the Following Page
1
3
CASE 221B
TO鈥?20AC
PLASTIC
U8xx = Device Code
xx
= 05, 10, 15,
=
20, 40 or 60
4
MARKING DIAGRAM
U8xx
ORDERING INFORMATION
Device
MUR805
MUR810
MUR815
MUR820
MUR840
MUR860
Package
TO鈥?20
TO鈥?20
TO鈥?20
TO鈥?20
TO鈥?20
TO鈥?20
Shipping
50 Units/Rail
50 Units/Rail
50 Units/Rail
50 Units/Rail
50 Units/Rail
50 Units/Rail
Preferred
devices are recommended choices for future use
and best overall value.
漏
Semiconductor Components Industries, LLC, 2000
1
October, 2000 鈥?Rev. 4
Publication Order Number:
MUR820/D
