MUR420/D Datasheet

  • MUR420/D

  • SWITCHMODE? Power Rectifiers

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MUR405, MUR410, MUR415,
MUR420, MUR440, MUR460
MUR420 and MUR460 are Preferred Devices
Switchmode鈩?/div>
Power Rectifiers
. . . designed for use in switching power supplies, inverters and as
free wheeling diodes, these state鈥搊f鈥搕he鈥揳rt devices have the
following features:
http://onsemi.com
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Ultrafast 25, 50 and 75 Nanosecond Recovery Times
175擄C Operating Junction Temperature
Low Forward Voltage
Low Leakage Current
High Temperature Glass Passivated Junction
Reverse Voltage to 600 Volts
ULTRAFAST RECTIFIERS
4.0 AMPERES
50鈥?00 VOLTS
Mechanical Characteristics:
鈥?/div>
Case: Epoxy, Molded
鈥?/div>
Weight: 1.1 gram (approximately)
鈥?/div>
Finish: All External Surfaces Corrosion Resistant and Terminal
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes:
220擄C Max. for 10 Seconds, 1/16鈥?from case
Shipped in plastic bags, 5,000 per bag
Available Tape and Reeled, 1500 per reel, by adding a 鈥淩L鈥欌€?suffix to
the part number
Polarity: Cathode indicated by Polarity Band
Marking: MUR405, MUR410, MUR415, MUR420, MUR440,
MUR460
AXIAL LEAD
CASE 267鈥?3
STYLE 1
MARKING DIAGRAM
MUR4xx
MUR4xx = Device Code
xx
= 05, 10, 15, 20, 40, 60
ORDERING INFORMATION
Device
MUR405
MUR405RL
MUR410
MUR410RL
MUR415
MUR415RL
MUR420
MUR420RL
MUR440
MUR440RL
MUR460
MUR460RL
Package
Axial Lead
Axial Lead
Axial Lead
Axial Lead
Axial Lead
Axial Lead
Axial Lead
Axial Lead
Axial Lead
Axial Lead
Axial Lead
Axial Lead
Shipping
5000 Units/Bag
1500/Tape & Reel
5000 Units/Bag
1500/Tape & Reel
5000 Units/Bag
1500/Tape & Reel
5000 Units/Bag
1500/Tape & Reel
5000 Units/Bag
1500/Tape & Reel
5000 Units/Bag
1500/Tape & Reel

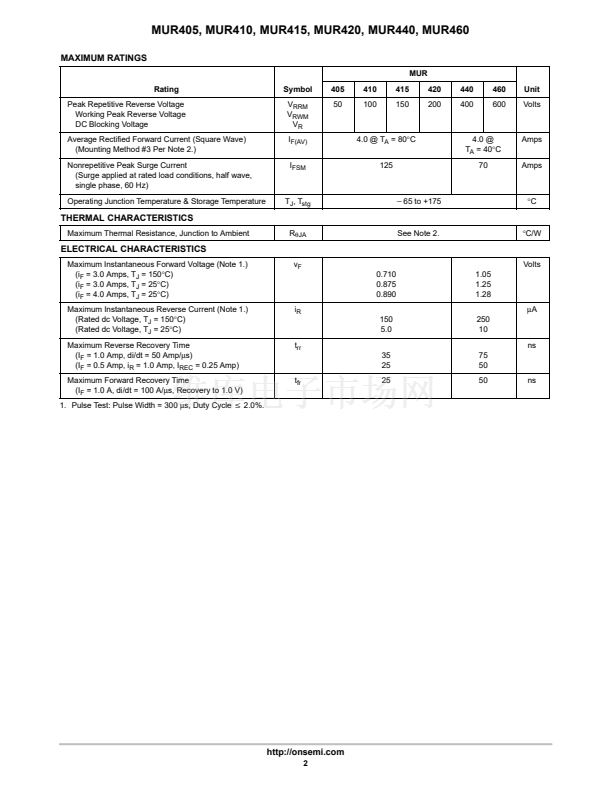

MAXIMUM RATINGS
Please See the Table on the Following Page
Preferred
devices are recommended choices for future use
and best overall value.
漏
Semiconductor Components Industries, LLC, 2000
1
October, 2000 鈥?Rev. 4
Publication Order Number:
MUR420/D
