MUR3040/D Datasheet

  • MUR3040/D

  • SWITCHMODE? Power Rectifier

  • 4頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MUR3040
Preferred Device
SWITCHMODE鈩?/div>
Power Rectifier
. . . designed for use in switching power supplies, inverters and as
free wheeling diodes, these state鈥搊f鈥搕he鈥揳rt devices have the
following features:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Ultrafast 100 Nanosecond Recovery Time
175擄C Operating Junction Temperature
High Voltage Capability to 400 Volts
Low Forward Voltage Drop
High Temperature Glass Passivated Junction
http://onsemi.com
Mechanical Characteristics
ULTRAFAST
RECTIFIER
30 AMPERES
400 VOLTS
1
4
3
鈥?/div>
Case: Epoxy, Molded
鈥?/div>
Weight: 4.3 grams (approximately)
鈥?/div>
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
鈥?/div>
Lead Temperature for Soldering Purposes:
260擄C Max. for 10 Seconds
鈥?/div>
Shipped 30 Units Per Plastic Tube
鈥?/div>
Marking: U3040
MAXIMUM RATINGS
Rating
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
T
C
= 70擄C
Peak Repetitive Forward Current
(Rated V
R
, Square Wave,
20 kHz, T
C
= 150擄C)
Non鈥揜epetitive Peak Surge Current
(Surge Applied at Rated Load
Conditions Halfwave, Single
Phase, 60 Hz)
Operating Junction and Storage
Temperature Range
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FRM
Max
400
Unit
V
4
1
3

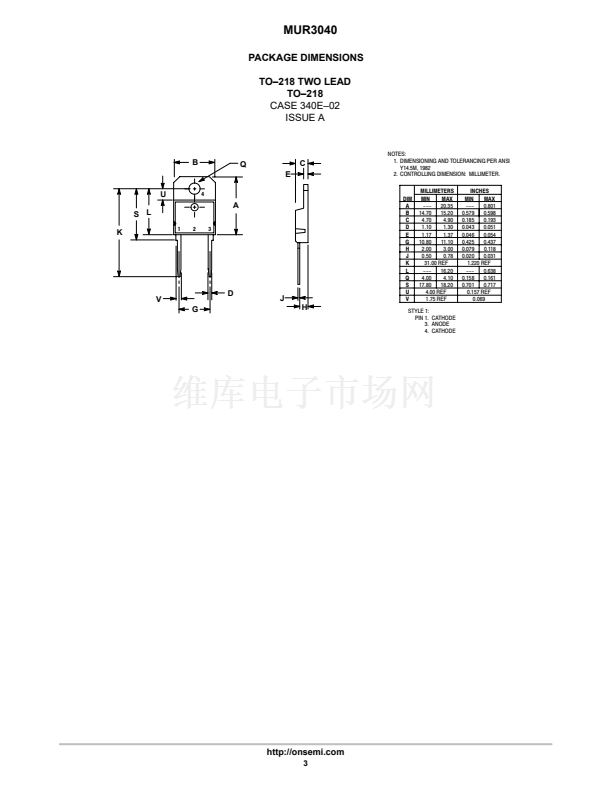

TO鈥?18
CASE 340E
STYLE 1
30
30
A
A
MARKING DIAGRAM
I
FSM
300
A
U3040
T
J
, T
stg
鈥?5 to +175
擄C
U3040 = Device Code
ORDERING INFORMATION
Device
MUR3040
Package
TO鈥?18
Shipping
30 Units/Rail
Preferred
devices are recommended choices for future use
and best overall value.
漏
Semiconductor Components Industries, LLC, 2000
1
October, 2000 鈥?Rev. 4
Publication Order Number:
MUR3040/D
