MUR3020WT/D Datasheet

  • MUR3020WT/D

  • SWITCHMODE? Power Rectifier

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MUR3020WT, MUR3060WT
Preferred Devices
SWITCHMODE鈩?/div>
Power Rectifiers
. . . designed for use in switching power supplies, inverters and as
free wheeling diodes, these state鈥搊f鈥搕he鈥揳rt devices have the
following features:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Ultrafast 35 and 60 Nanosecond Recovery Time
175擄C Operating Junction Temperature
Popular TO鈥?47 Package
High Voltage Capability to 600 Volts
Low Forward Drop
Low Leakage Specified @ 150擄C Case Temperature
Current Derating Specified @ Both Case and Ambient Temperatures
Epoxy Meets UL94, V
O
@ 1/8鈥?/div>
High Temperature Glass Passivated Junction
http://onsemi.com
ULTRAFAST
RECTIFIERS
30 AMPERES
200鈥?00 VOLTS
1
2, 4
3
Mechanical Characteristics
鈥?/div>
Case: Epoxy, Molded
鈥?/div>
Weight: 4.3 grams (approximately)
鈥?/div>
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
鈥?/div>
Lead Temperature for Soldering Purposes:
260擄C Max. for 10 Seconds
鈥?/div>
Shipped 30 units per plastic tube
鈥?/div>
Marking: U3020, U3060

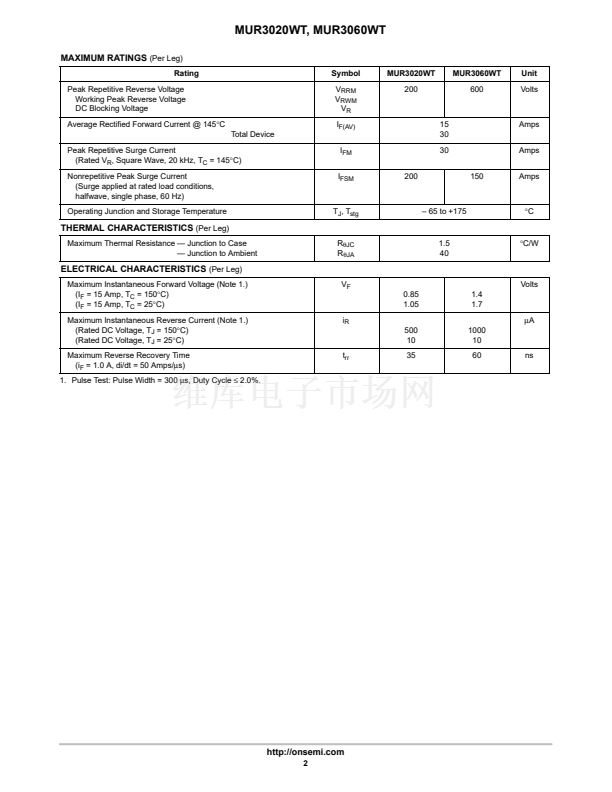

MAXIMUM RATINGS
Please See the Table on the Following Page
1
2
3
TO鈥?47 PSI
CASE 340L
PLASTIC
MARKING DIAGRAM
U30x0
U30x0 = Device Code
x
= 2 or 6
ORDERING INFORMATION
Device
MUR3020WT
MUR3060WT
Package
TO鈥?47
TO鈥?47
Shipping
30 Units/Rail
30 Units/Rail
Preferred
devices are recommended choices for future use
and best overall value.
漏
Semiconductor Components Industries, LLC, 2000
1
October, 2000 鈥?Rev. 3
Publication Order Number:
MUR3020WT/D
