MUR120/D Datasheet

  • MUR120/D

  • SWITCHMODE? Power Rectifier

  • 83.96KB

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MUR120 Series
Preferred Devices
SWITCHMODEt
Power Rectifiers
MUR105, MUR110, MUR115, MUR120,
MUR130, MUR140, MUR160
http://onsemi.com
. . . designed for use in switching power supplies, inverters and as
free wheeling diodes, these state鈥搊f鈥搕he鈥揳rt devices have the
following features:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Ultrafast 25, 50 and 75 Nanosecond Recovery Times
175擄C Operating Junction Temperature
Low Forward Voltage
Low Leakage Current
High Temperature Glass Passivated Junction
Reverse Voltage to 600 Volts
ULTRAFAST RECTIFIERS
1.0 AMPERE
50鈥?00 VOLTS
Mechanical Characteristics:
鈥?/div>
Case: Epoxy, Molded
鈥?/div>
Weight: 0.4 gram (approximately)
鈥?/div>
Finish: All External Surfaces Corrosion Resistant and Terminal
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes:
220擄C Max. for 10 Seconds, 1/16鈥?from case
Shipped in plastic bags, 1000 per bag
Available Tape and Reeled, 5000 per reel, by adding a 鈥淩L鈥欌€?suffix to
the part number
Polarity: Cathode Indicated by Polarity Band
Marking: MUR105, MUR110, MUR115, MUR120, MUR130,
MUR140, MUR160
AXIAL LEAD
CASE 59鈥?4
PLASTIC
MARKING DIAGRAM
MUR1xx

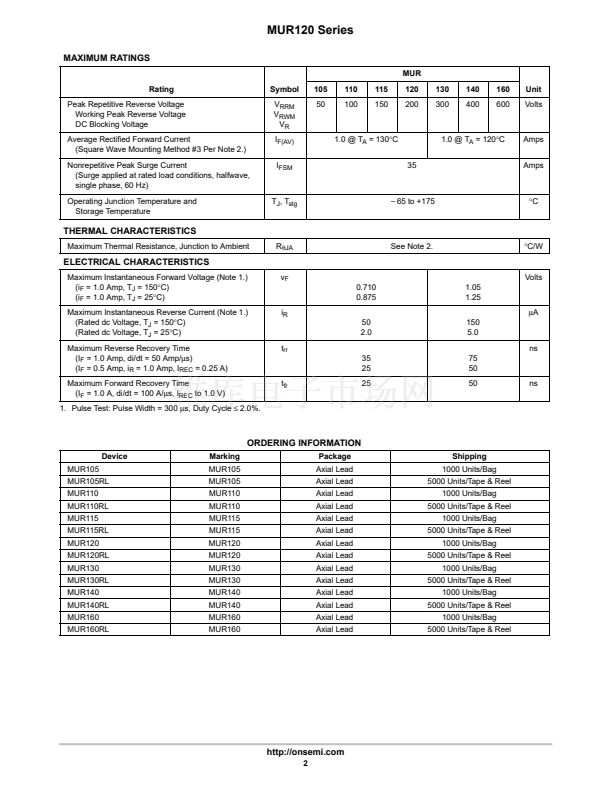

MAXIMUM RATINGS
Please See the Table on the Following Page
MUR1 = Device Code
xx
= Specific Device Code
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
Preferred
devices are recommended choices for future use
and best overall value.
漏
Semiconductor Components Industries, LLC, 2000
1
October, 2000 鈥?Rev. 5
Publication Order Number:
MUR120/D
