MT9160AS Datasheet

  • MT9160AS

  • ISO2-CMOS 5 Volt Multi-Featured Codec (MFC)

  • 405.09KB

  • 28頁

  • MITEL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
ISO
2
-CMOS
MT9160
5 Volt Multi-Featured Codec (MFC)
Preliminary Information
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Programmable
碌-Law/A-Law
Codec and Filters
Programmable CCITT (G.711)/sign-magnitude
coding
Programmable transmit, receive and side-tone
gains
Fully differential interface to handset
transducers - including 300 ohm receiver driver
Flexible digital interface including ST-BUS/SSI
Serial microport or default controllerless mode
Single 5 volt supply
Low power operation
CCITT G.714 compliant
ISSUE 3
May 1995
Ordering Information
MT9160AE
MT9160AS
24 Pin Plastic DIP
20 Pin SOIC
-40擄C to +85擄C
Description
The MT9160 5V Multi-featured Codec incorporates a
built-in Filter/Codec, gain control and programmable
sidetone path as well as on-chip anti-alias filters,
reference voltage and bias source. The device
supports both A-Law and
碌-Law
requirements.
Complete telephony interfaces are provided for
connection to handset transducers. Internal register
access is provided through a serial microport
compatible
with
various
industry
standard
micro-controllers.
The device also supports
controllerless operation utilizing the default register
conditions.
The MT9160 is fabricated in Mitel's ISO
2
-CMOS
technology ensuring low power consumption and
high reliability.
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Digital telephone sets
Cellular radio sets
Local area communications stations
Pair Gain Systems
Line cards
VSSD
VDD
VSSA
VBias
VRef
FILTER/CODEC GAIN
AAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAA
ENCODER
7dB
AAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAA
DECODER -7dB
AAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAA
M-
M+
Transducer
Interface
HSPKR +
HSPKR -
Din
Dout
STB/F0i
CLOCKin
Flexible
Digital
Interface
Timing
ST-BUS
C&D
Channels
Serial Microport
A/碌/IRQ
PWRST
IC
CS
DATA1
DATA2
SCLK

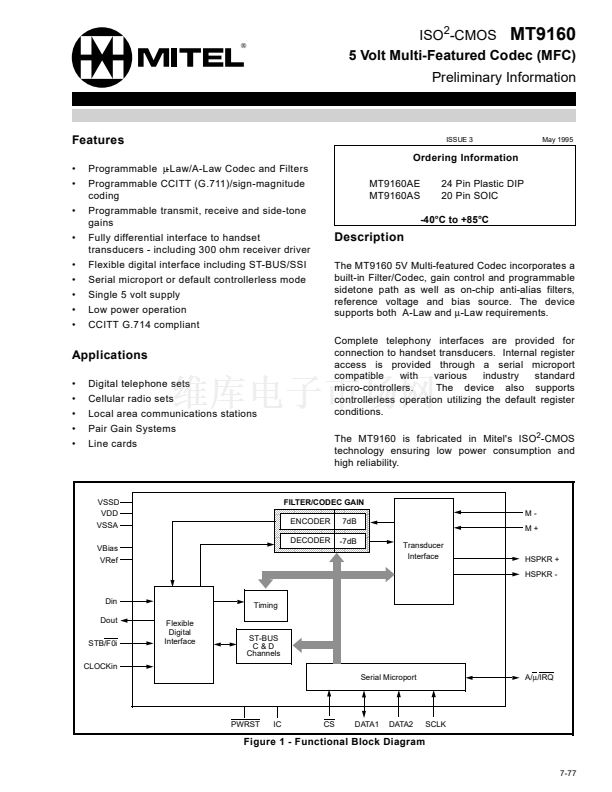

Figure 1 - Functional Block Diagram
7-77
