MT90866AG2 Datasheet

  • MT90866AG2

  • Flexible 4 K x 2.4 K Channel Digital Switch with H.110 Inter...

  • 695.42KB

  • 86頁

  • ZARLINK   ZARLINK

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

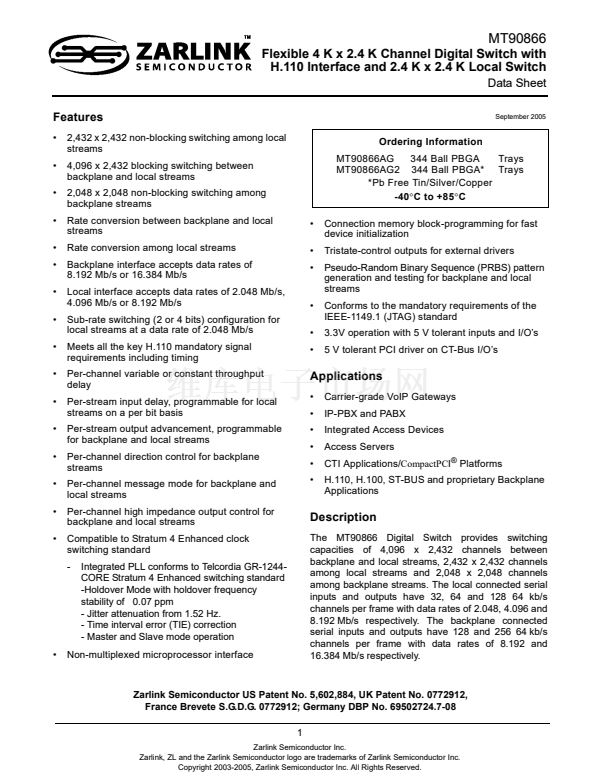

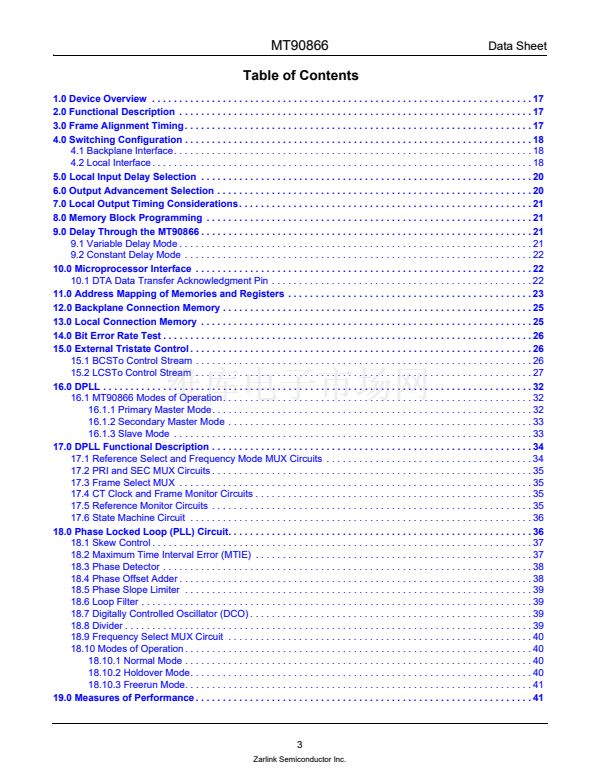

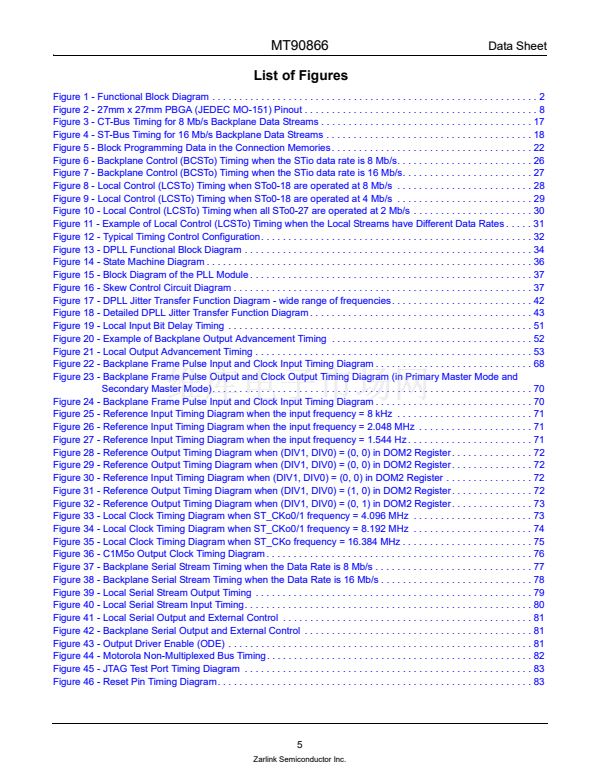

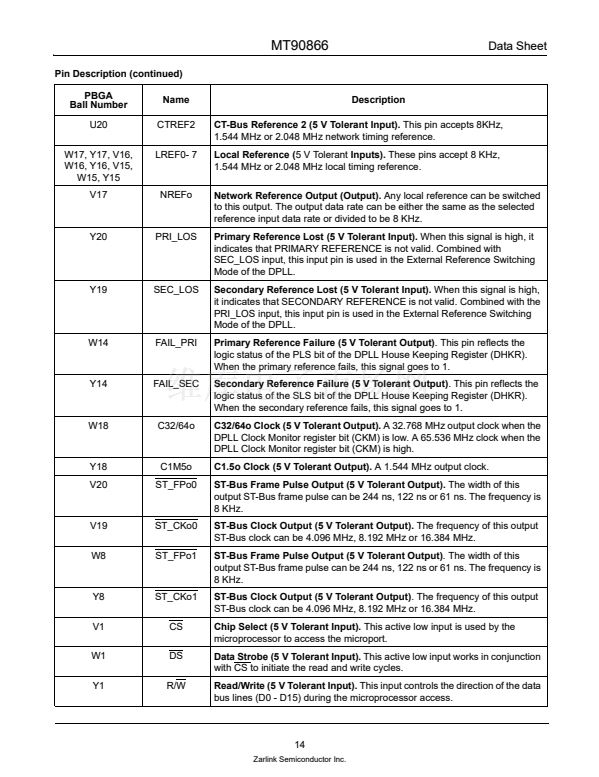

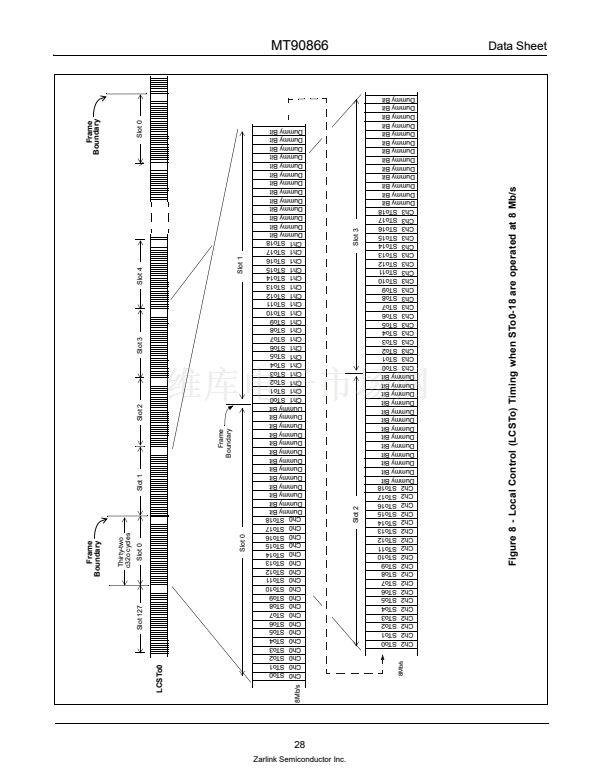

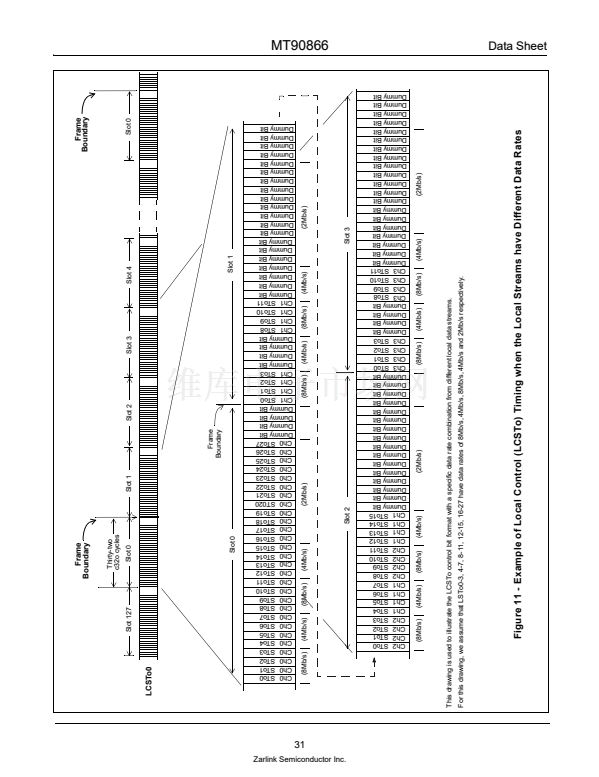

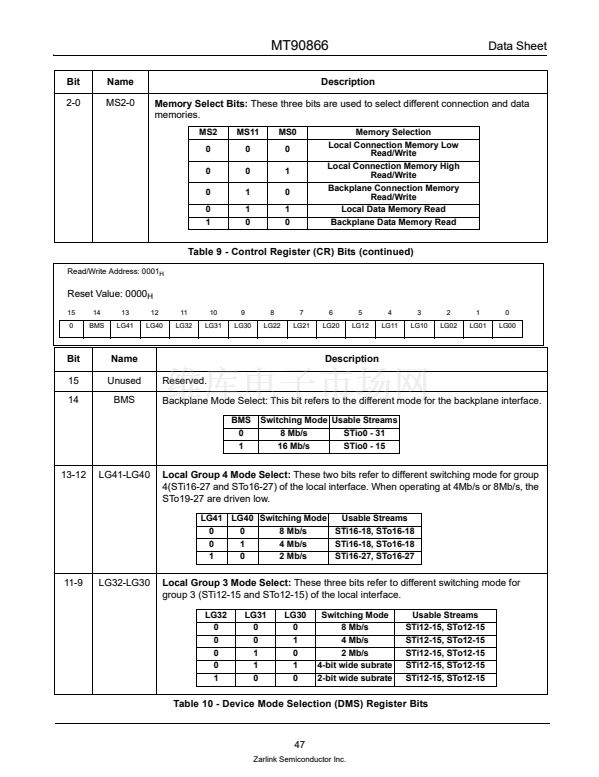

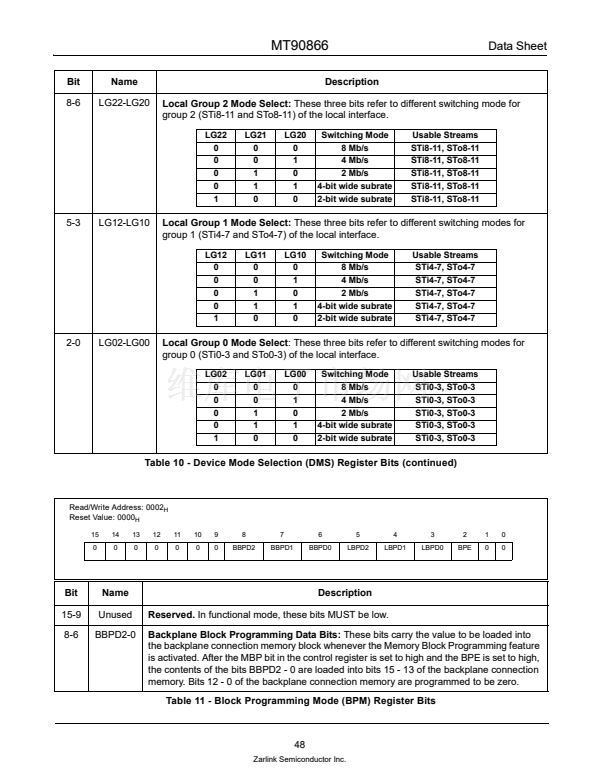

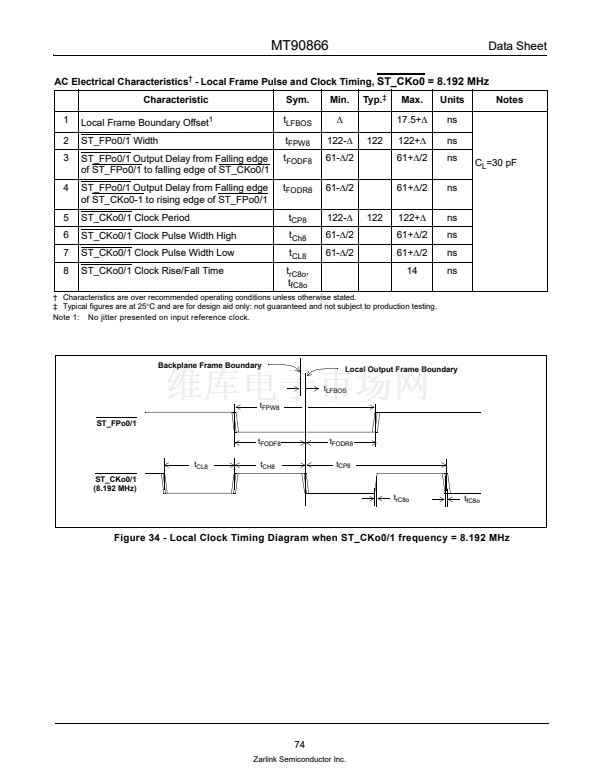

MT90866
Flexible 4 K x 2.4 K Channel Digital Switch with
H.110 Interface and 2.4 K x 2.4 K Local Switch
Data Sheet
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
2,432 x 2,432 non-blocking switching among local
streams
4,096 x 2,432 blocking switching between
backplane and local streams
2,048 x 2,048 non-blocking switching among
backplane streams
Rate conversion between backplane and local
streams
Rate conversion among local streams

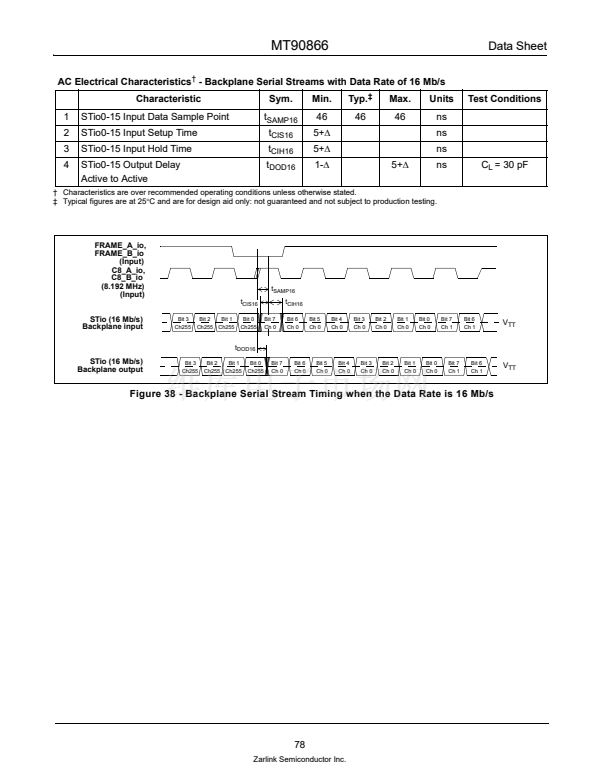

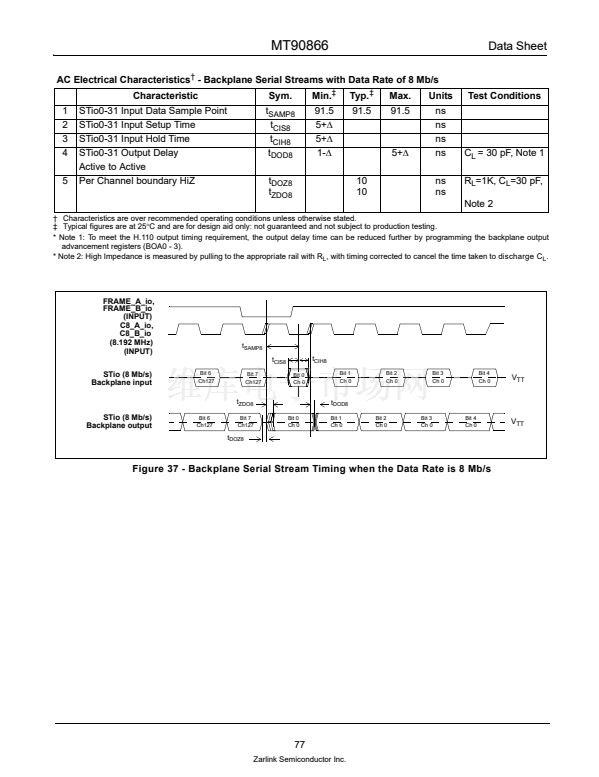

Backplane interface accepts data rates of
8.192 Mb/s or 16.384 Mb/s

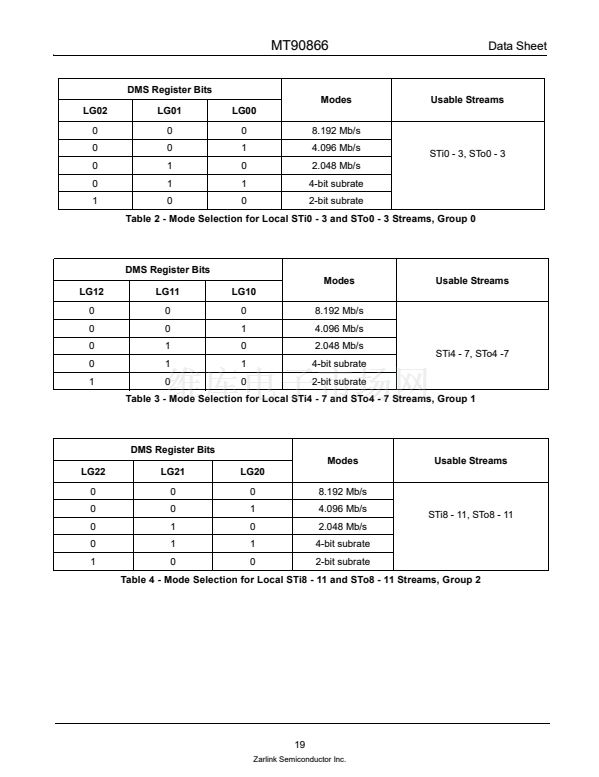

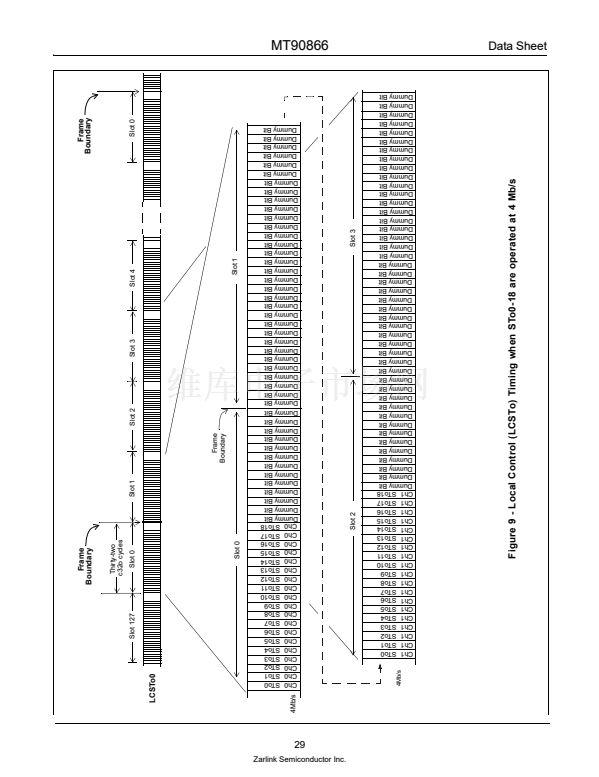

Local interface accepts data rates of 2.048 Mb/s,
4.096 Mb/s or 8.192 Mb/s

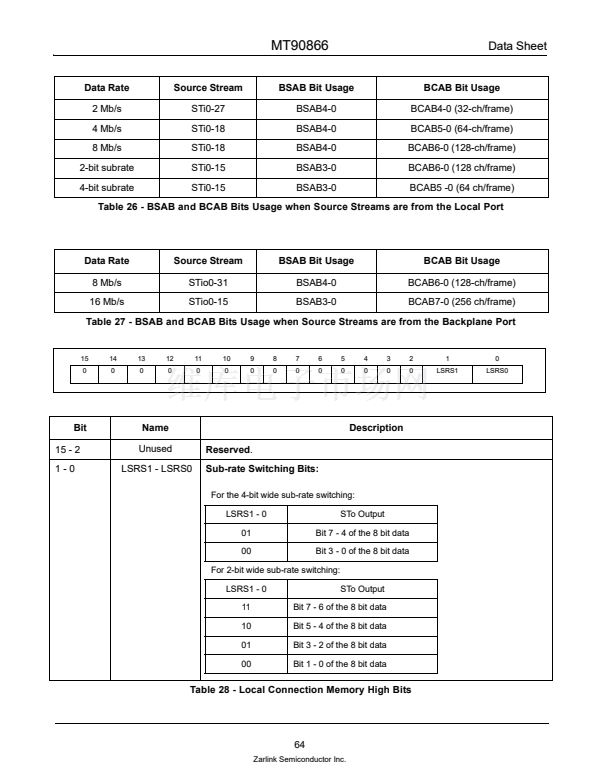

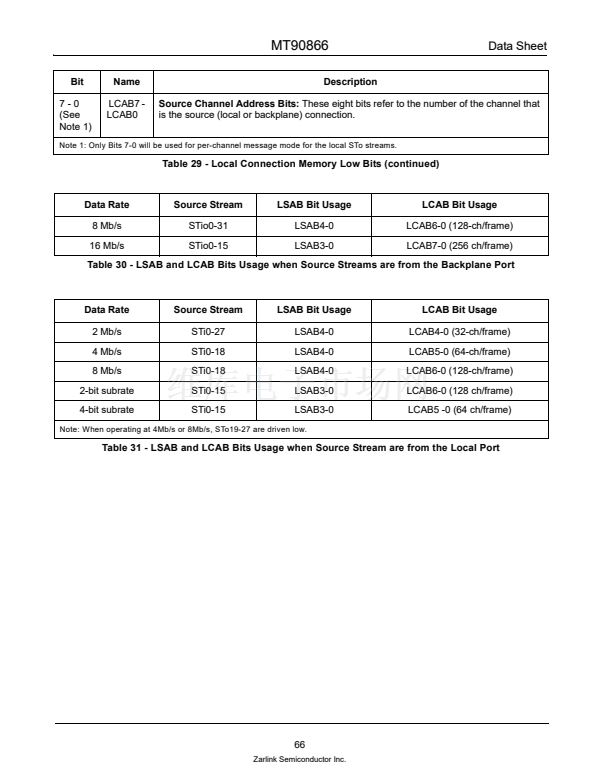

Sub-rate switching (2 or 4 bits) configuration for
local streams at a data rate of 2.048 Mb/s

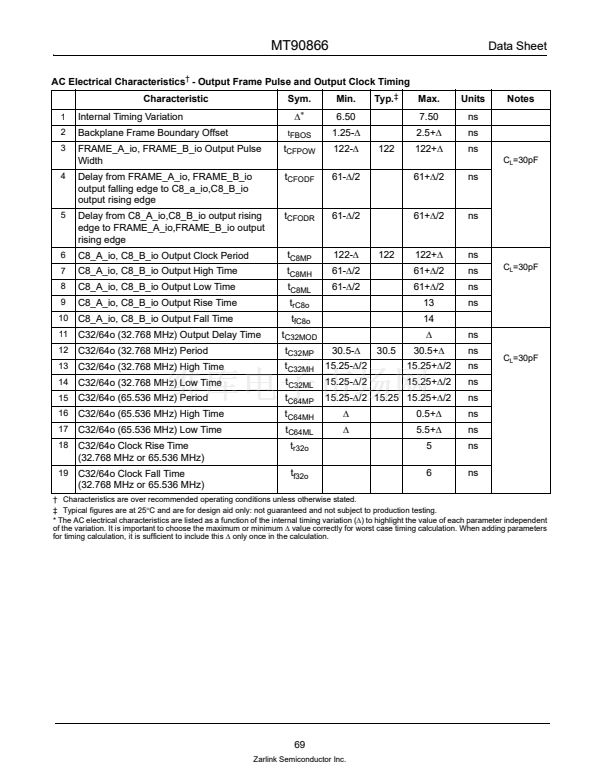

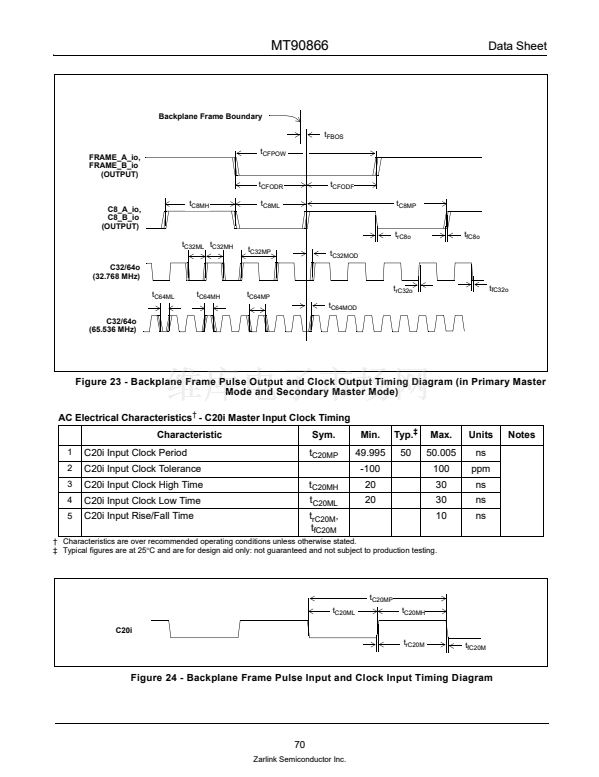

Meets all the key H.110 mandatory signal
requirements including timing

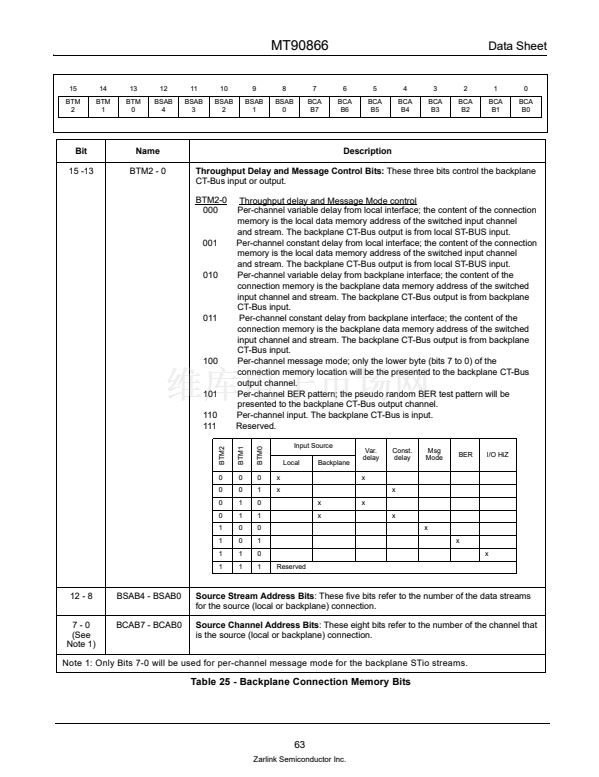

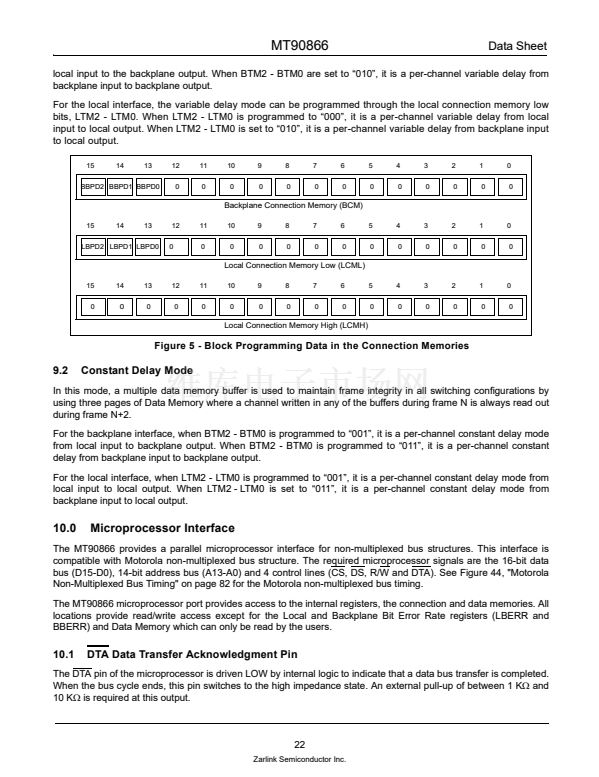

Per-channel variable or constant throughput
delay

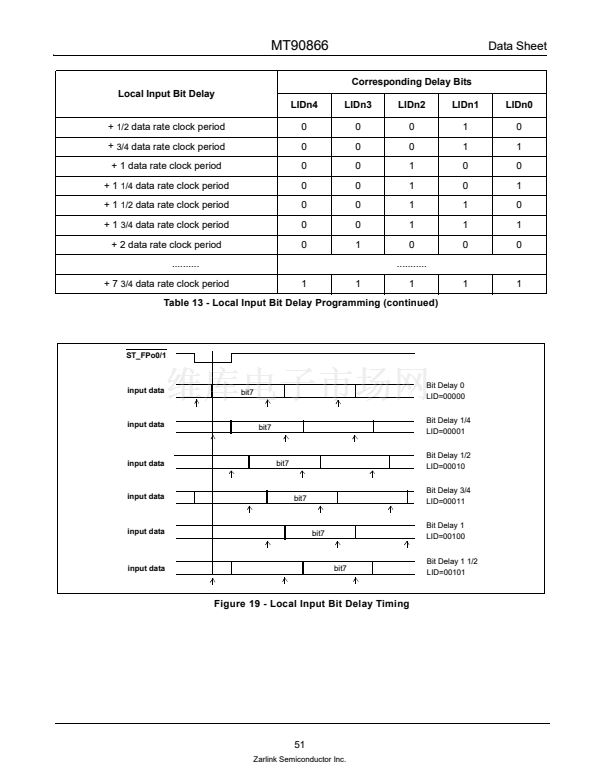

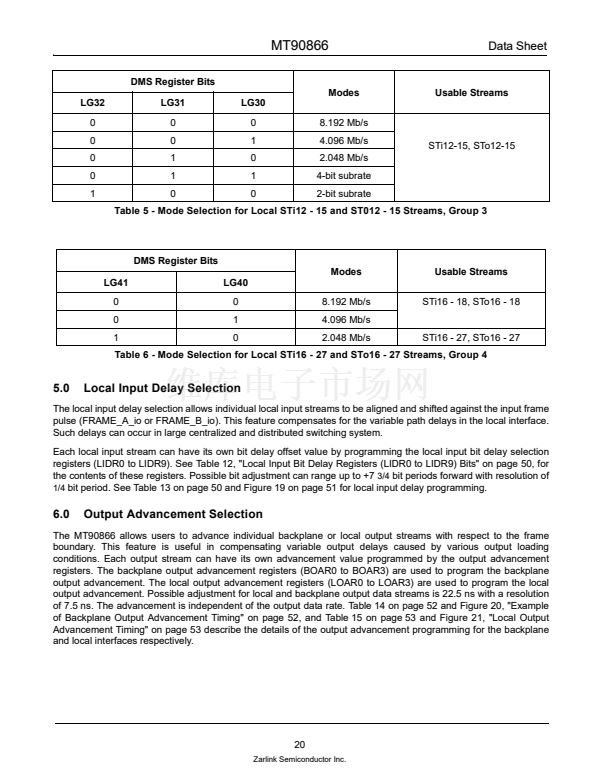

Per-stream input delay, programmable for local
streams on a per bit basis

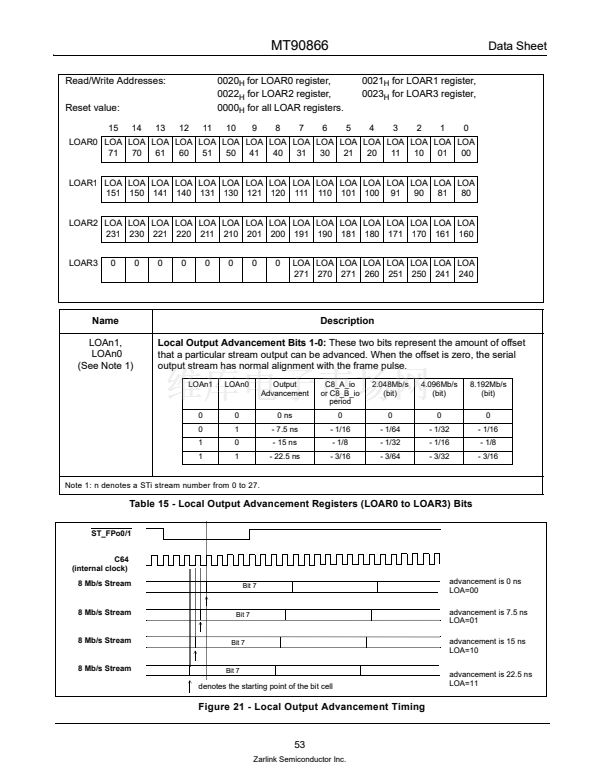

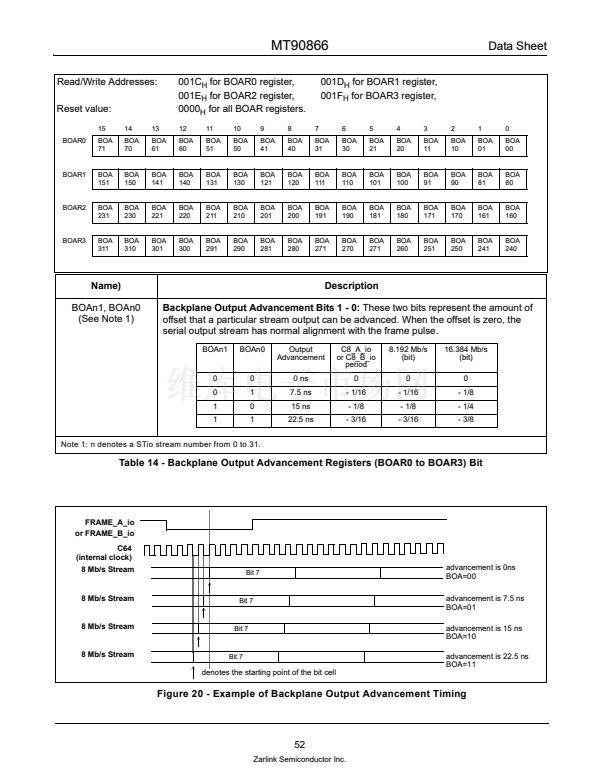

Per-stream output advancement, programmable
for backplane and local streams
Per-channel direction control for backplane
streams
Per-channel message mode for backplane and
local streams
Per-channel high impedance output control for
backplane and local streams

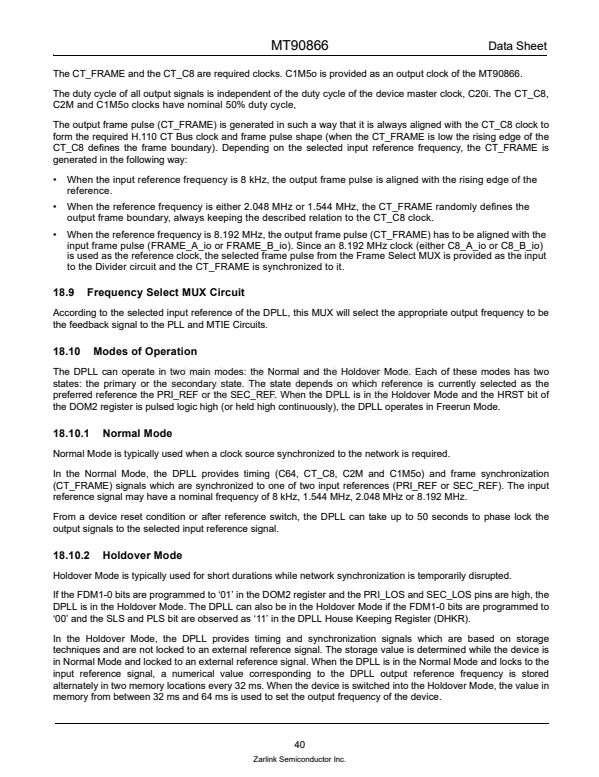

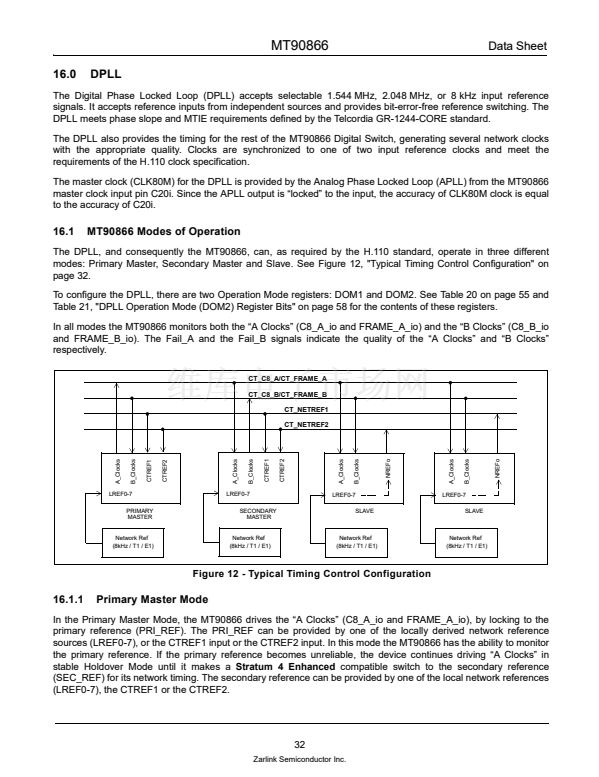

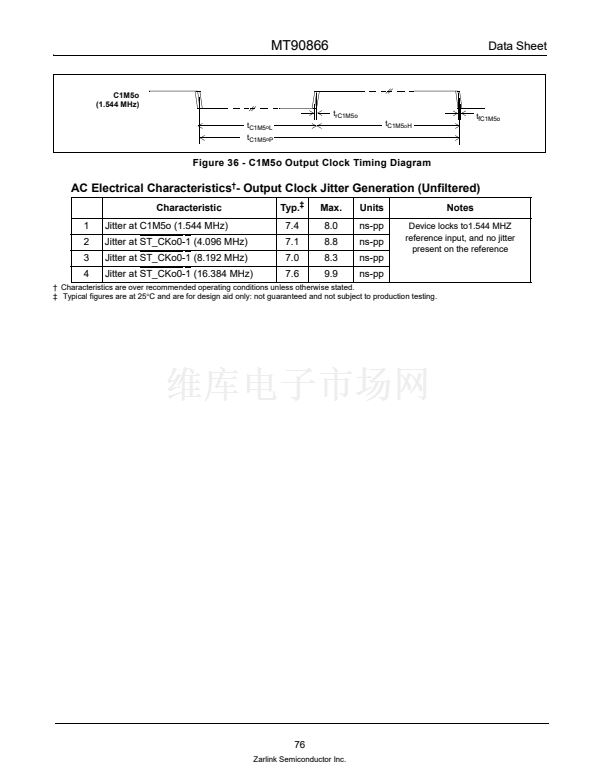

Compatible to Stratum 4 Enhanced clock
switching standard
-

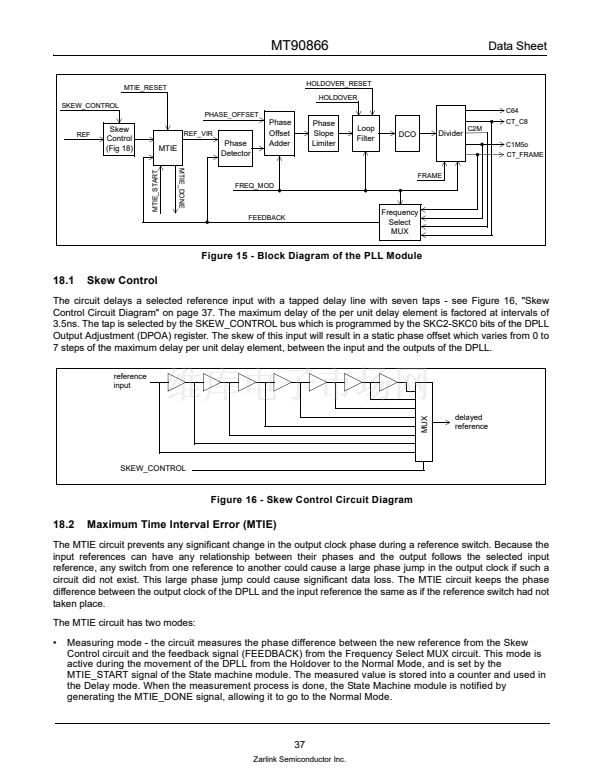

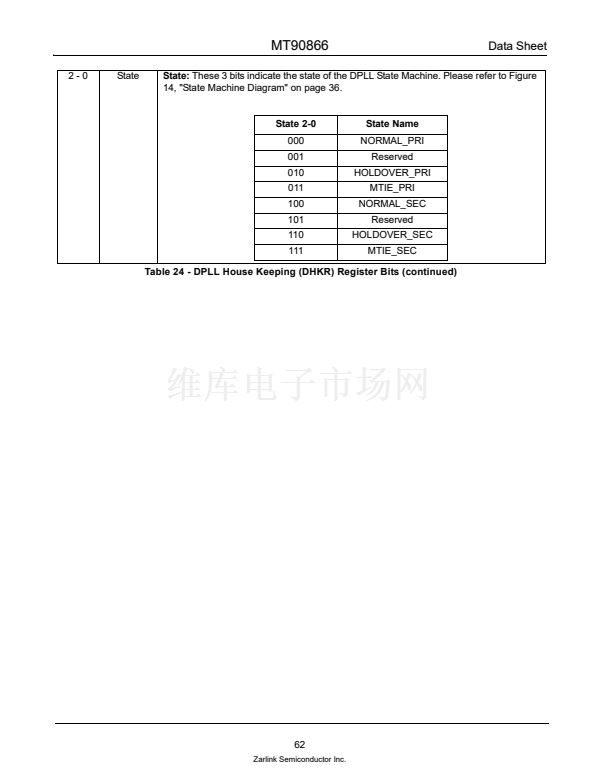

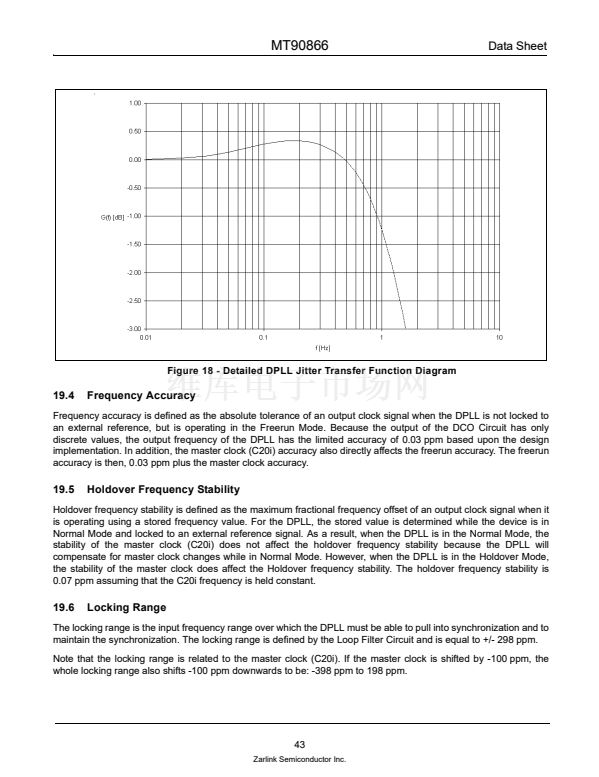

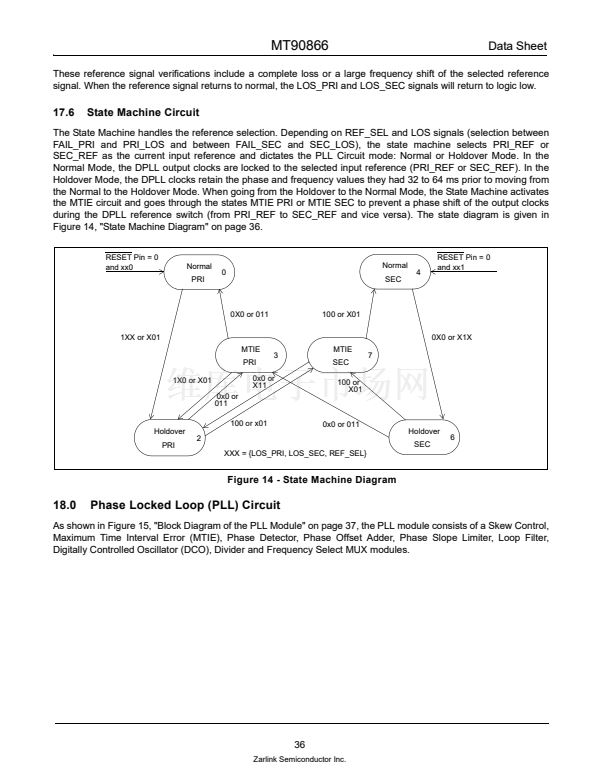

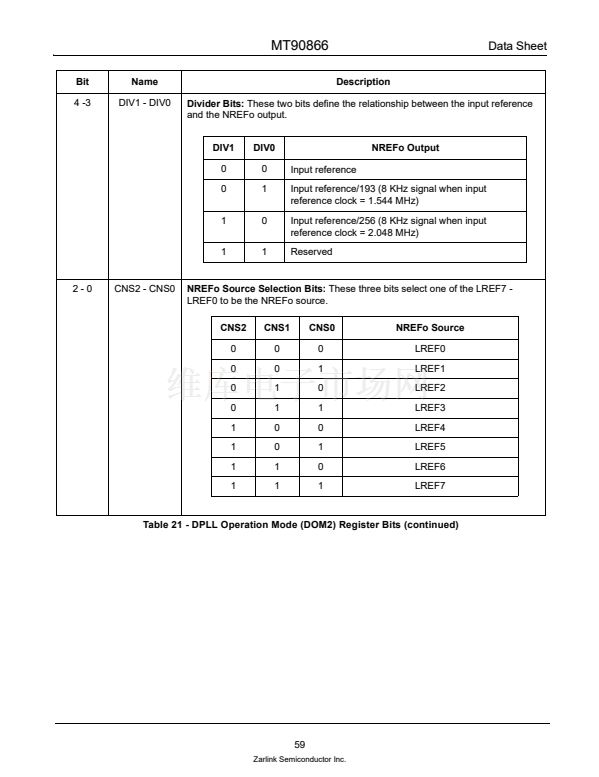

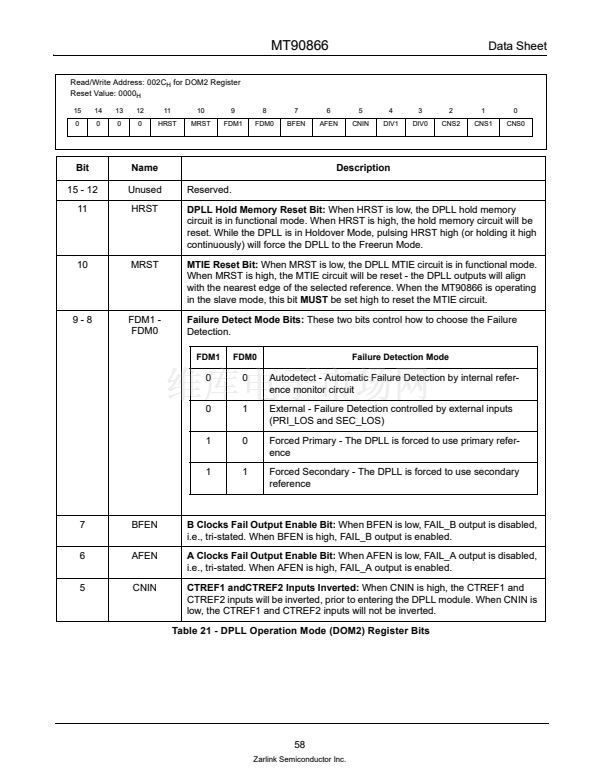

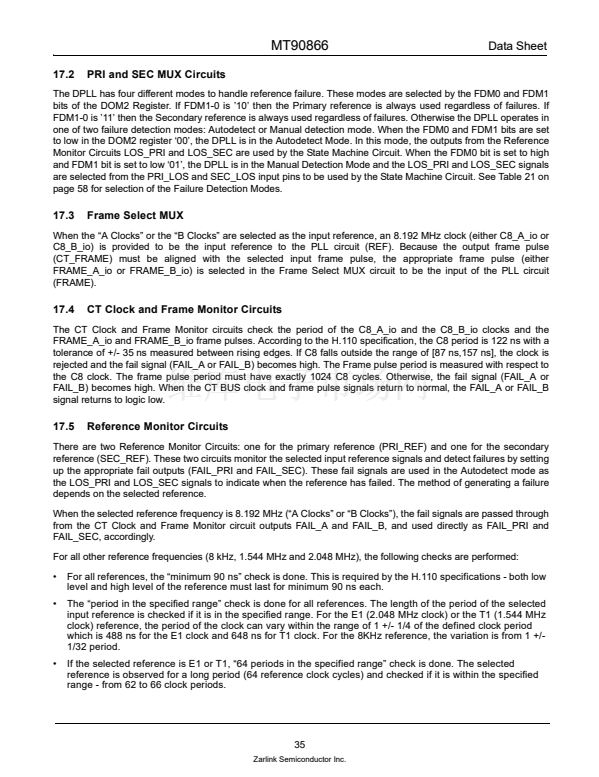

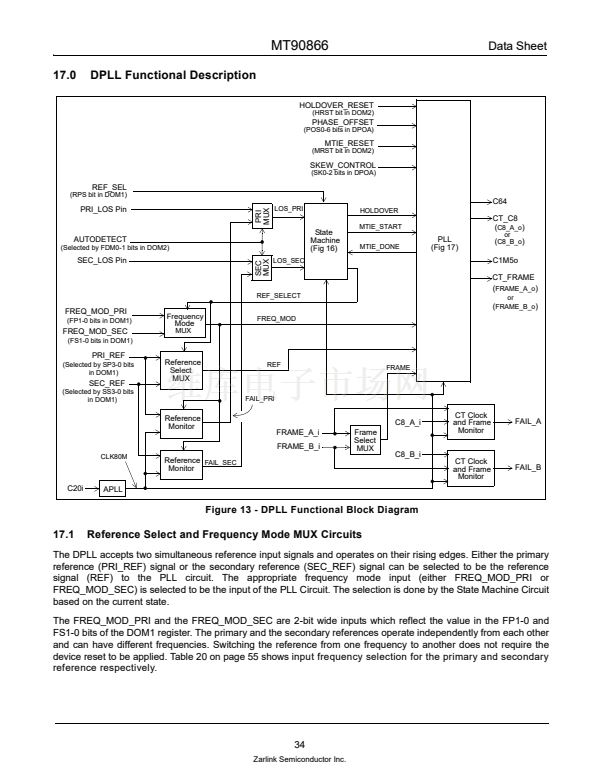

Integrated PLL conforms to Telcordia GR-1244-
CORE Stratum 4 Enhanced switching standard

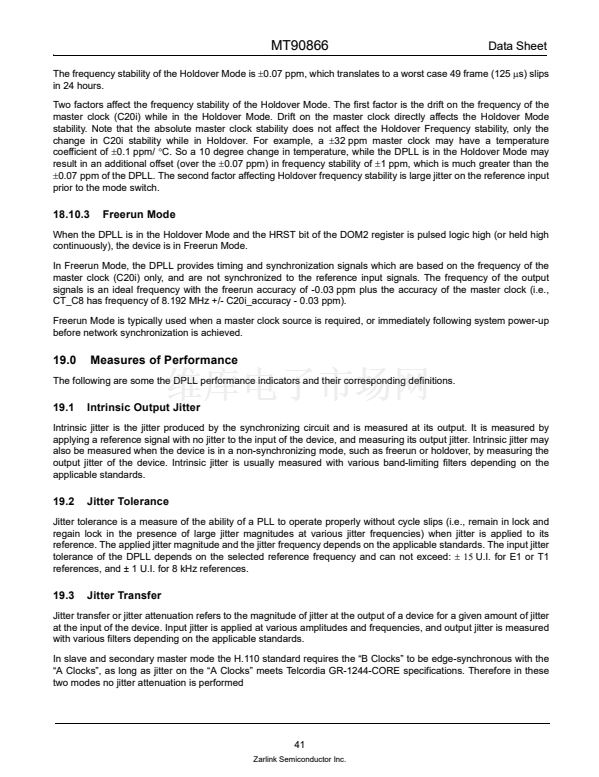

-Holdover Mode with holdover frequency
stability of 0.07 ppm

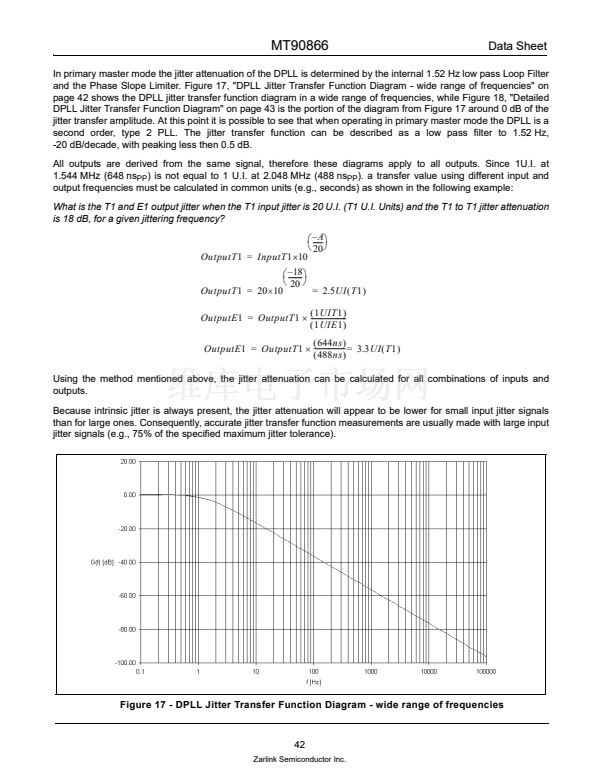

- Jitter attenuation from 1.52 Hz.
- Time interval error (TIE) correction

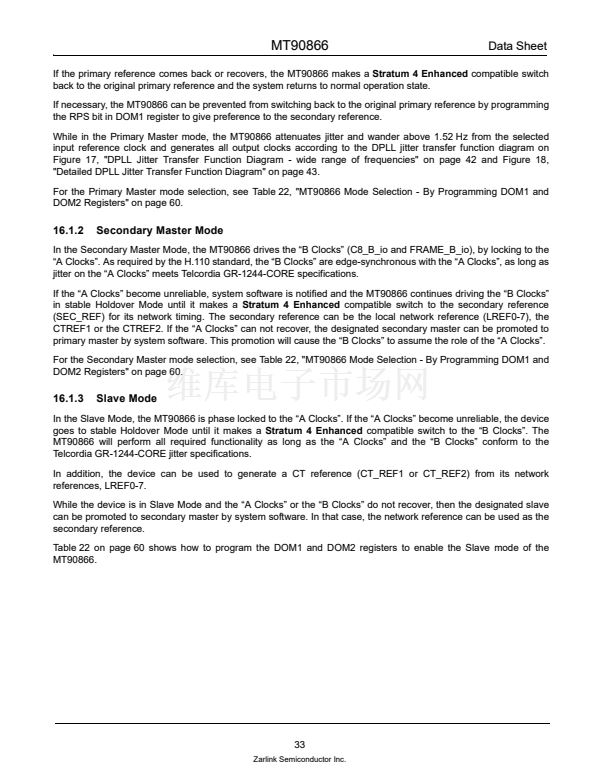

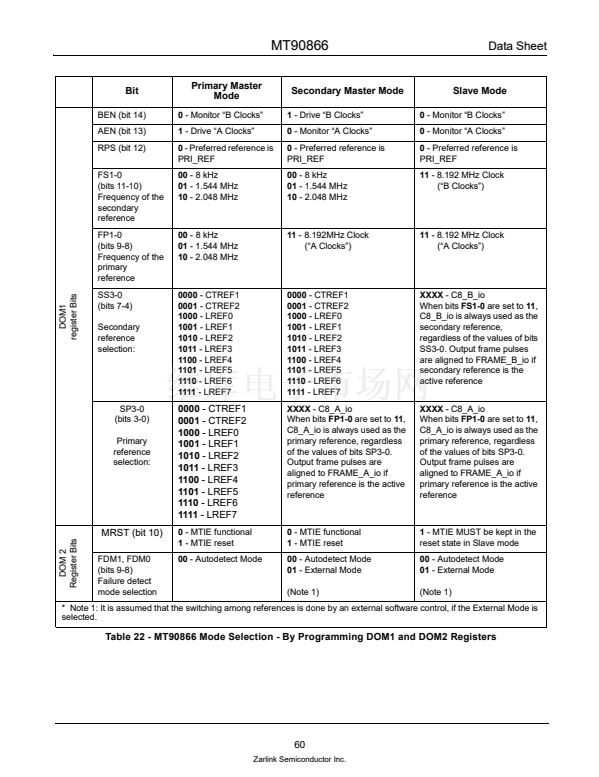

- Master and Slave mode operation
鈥?/div>
鈥?/div>
鈥?/div>

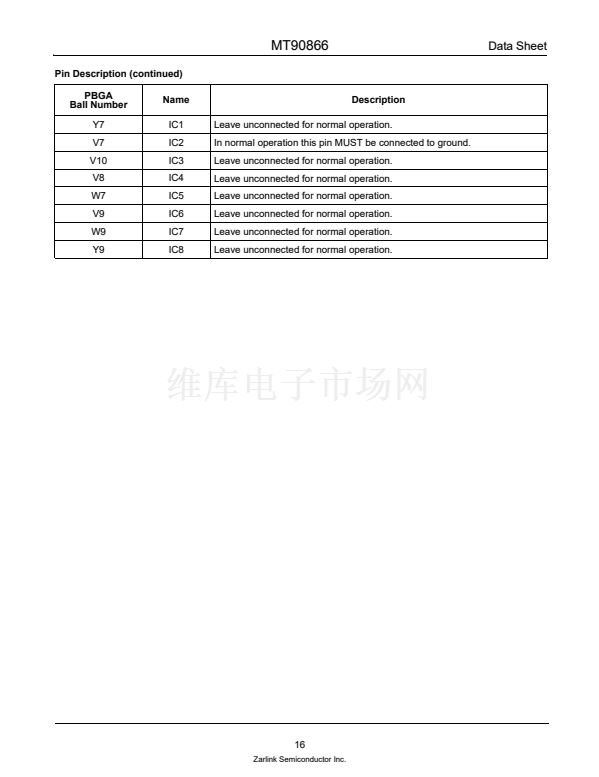

Ordering Information
MT90866AG

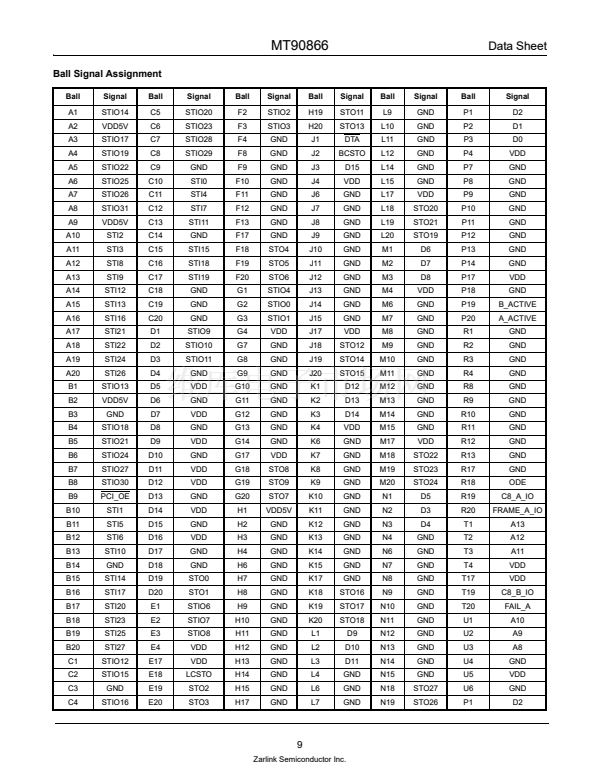

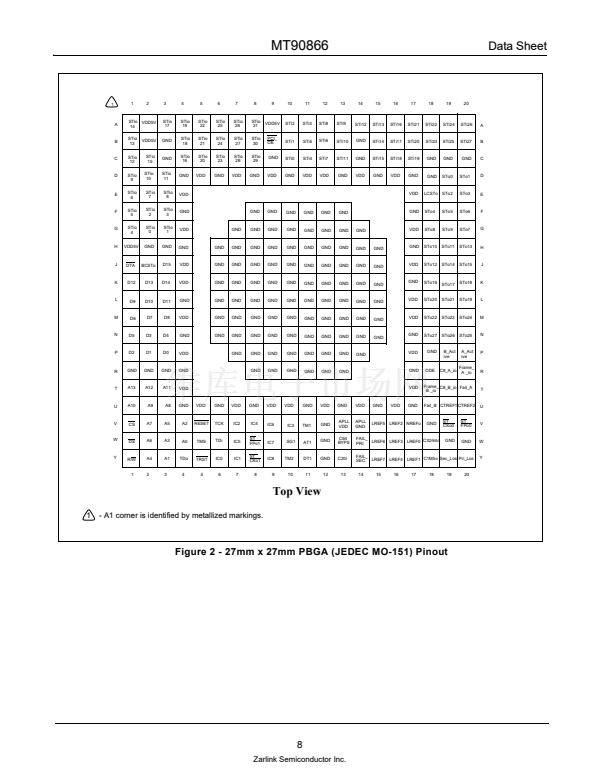

344 Ball PBGA
Trays
MT90866AG2 344 Ball PBGA* Trays
*Pb Free Tin/Silver/Copper
-40擄C to +85擄C

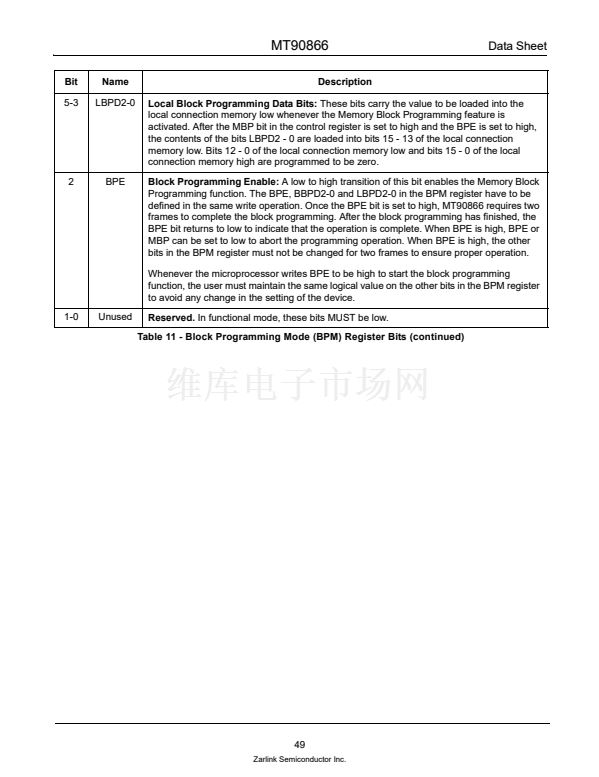

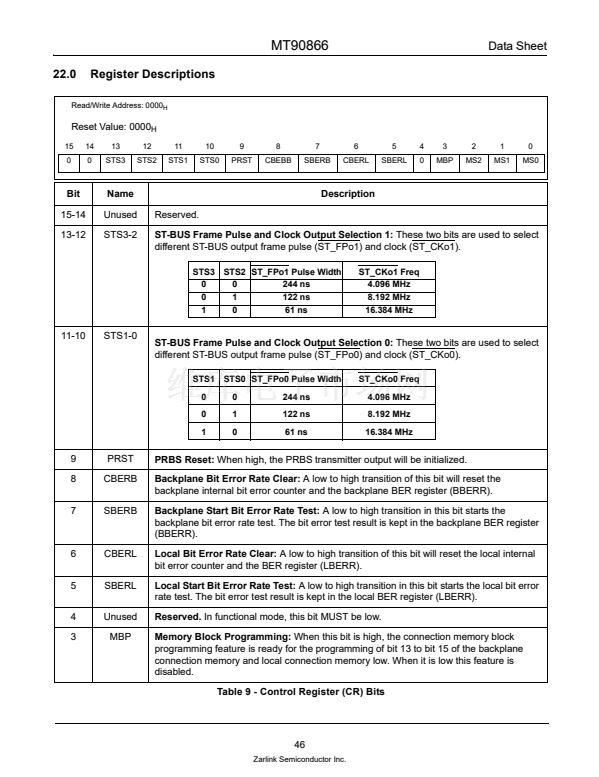

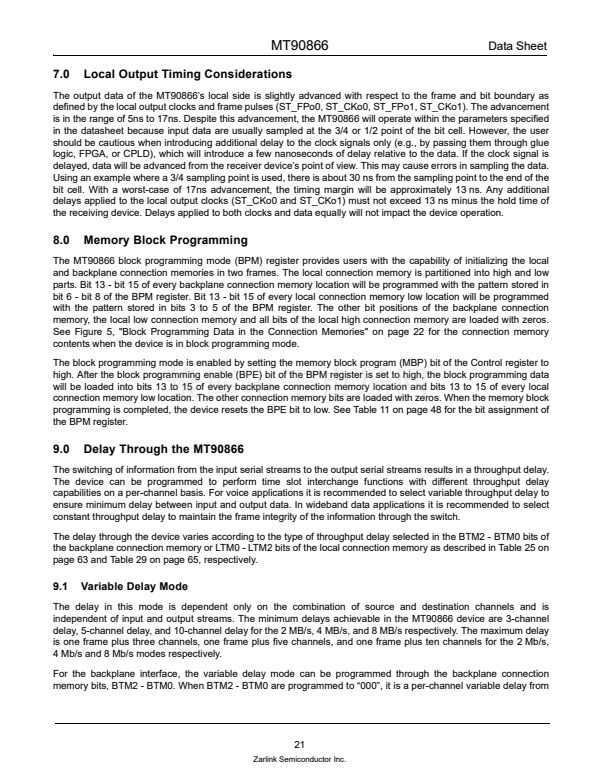

Connection memory block-programming for fast
device initialization

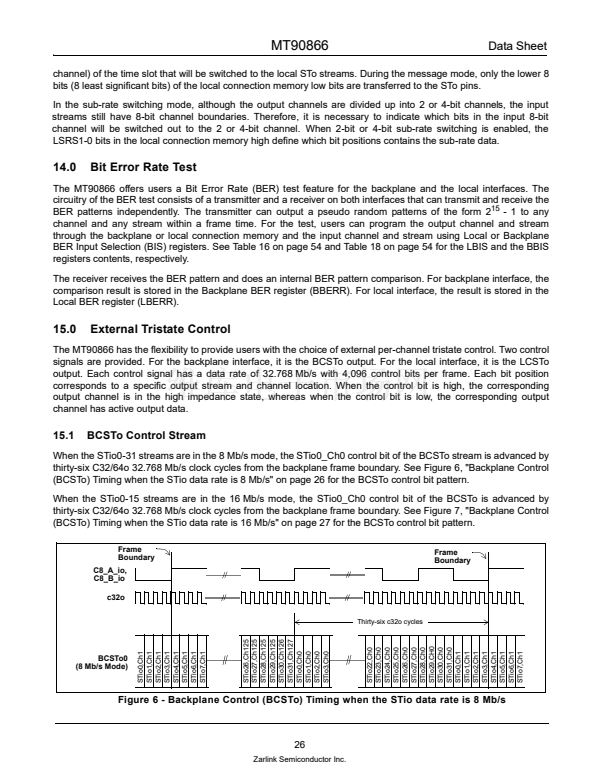

Tristate-control outputs for external drivers
Pseudo-Random Binary Sequence (PRBS) pattern
generation and testing for backplane and local
streams
Conforms to the mandatory requirements of the

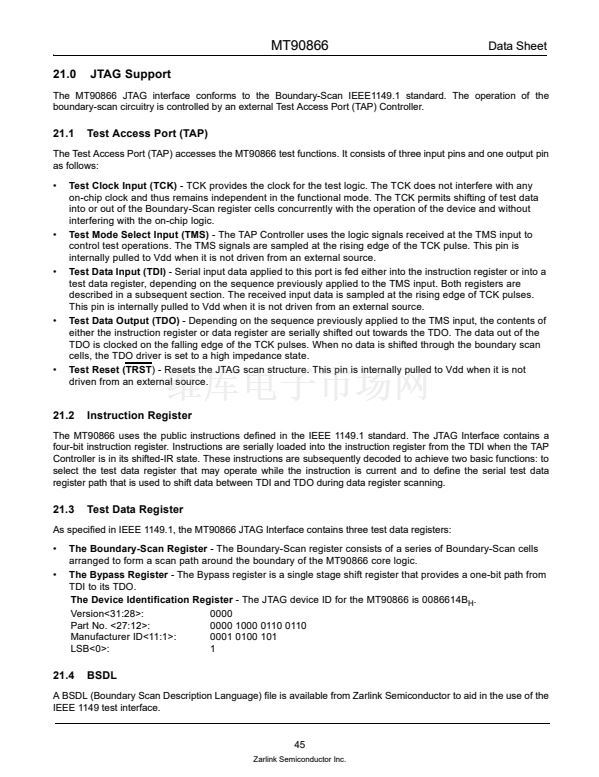

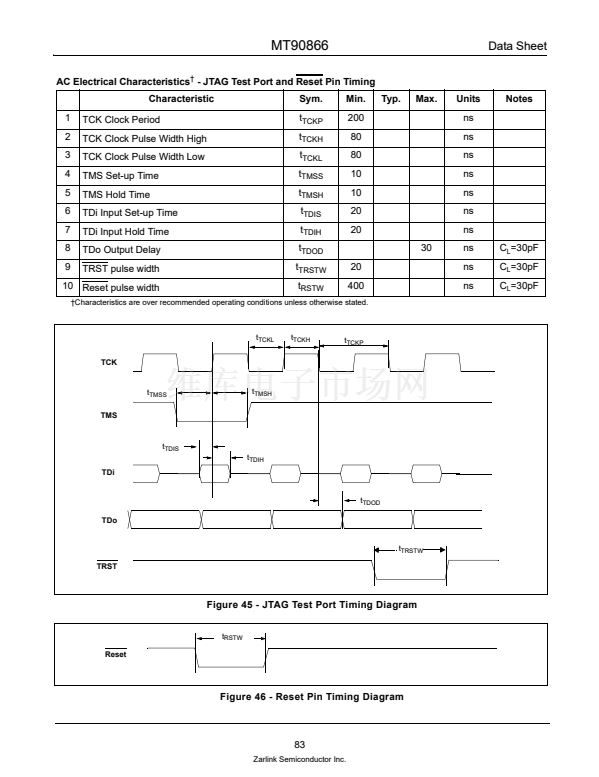

IEEE-1149.1 (JTAG) standard

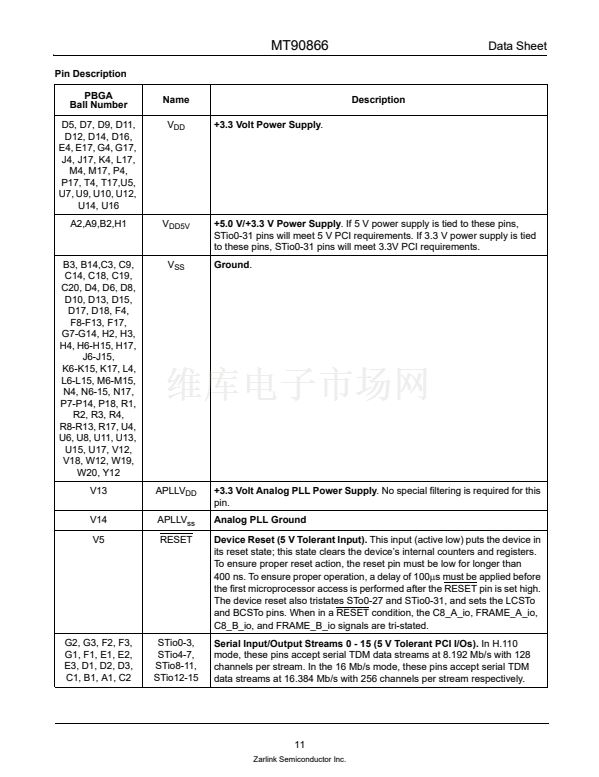

3.3V operation with 5 V tolerant inputs and I/O鈥檚
5 V tolerant PCI driver on CT-Bus I/O鈥檚
September 2005
鈥?/div>
鈥?/div>
鈥?/div>
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Carrier-grade VoIP Gateways
IP-PBX and PABX
Integrated Access Devices
Access Servers
CTI Applications/CompactPCI
廬
Platforms
H.110, H.100, ST-BUS and proprietary Backplane
Applications
Description

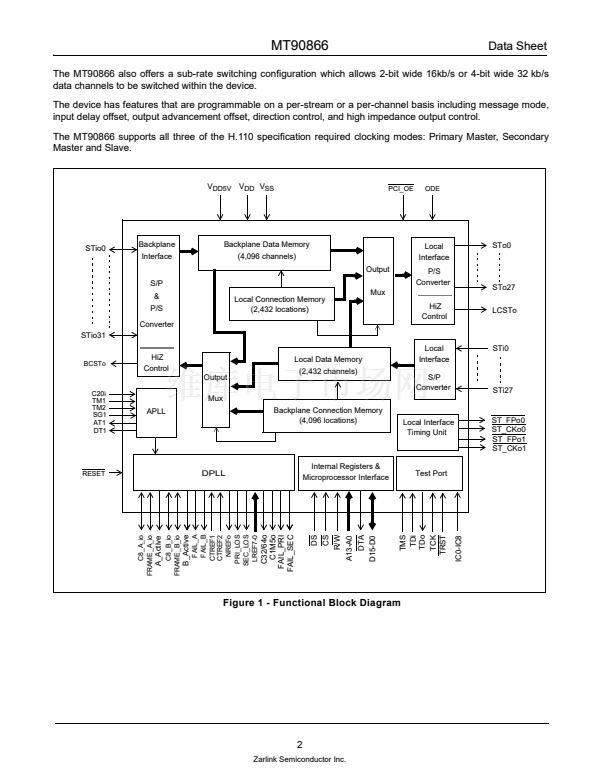

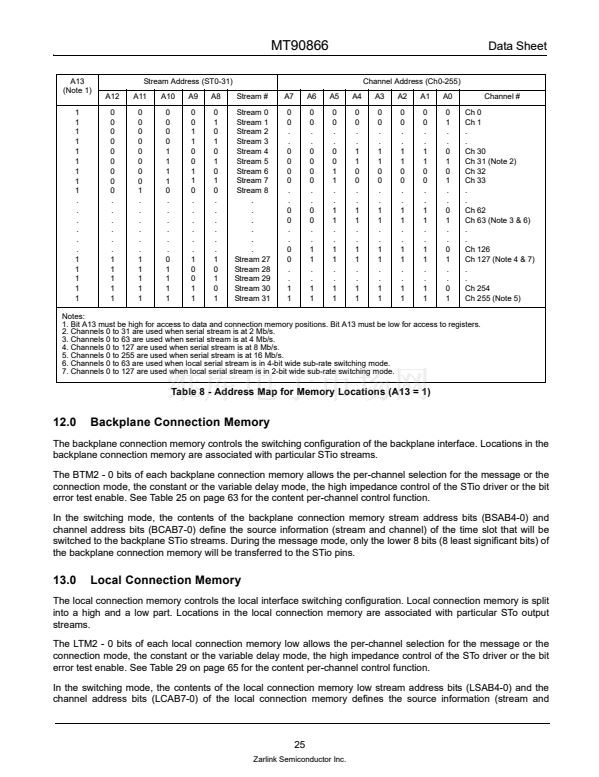

The MT90866 Digital Switch provides switching
capacities of 4,096 x 2,432 channels between
backplane and local streams, 2,432 x 2,432 channels
among local streams and 2,048 x 2,048 channels
among backplane streams. The local connected serial
inputs and outputs have 32, 64 and 128 64 kb/s
channels per frame with data rates of 2.048, 4.096 and
8.192 Mb/s respectively. The backplane connected
serial inputs and outputs have 128 and 256 64 kb/s
channels per frame with data rates of 8.192 and
16.384 Mb/s respectively.
鈥?/div>

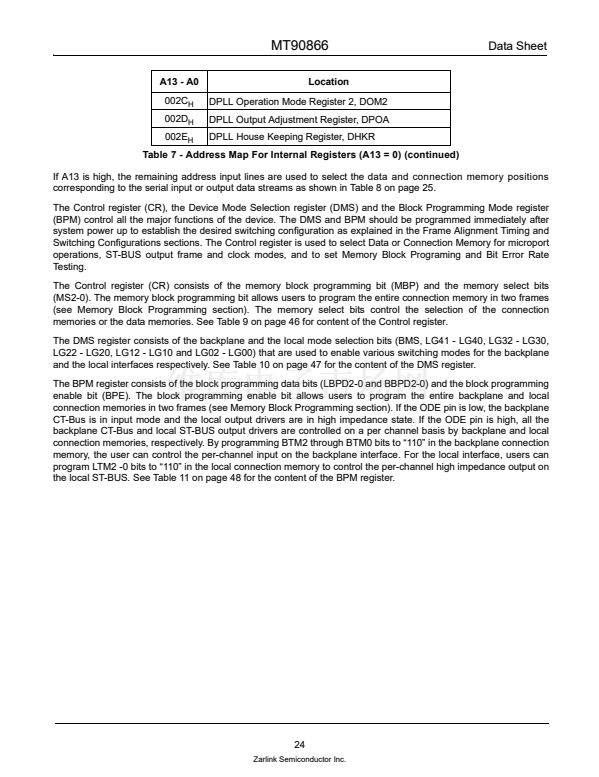

Non-multiplexed microprocessor interface
Zarlink Semiconductor US Patent No. 5,602,884, UK Patent No. 0772912,
France Brevete S.G.D.G. 0772912; Germany DBP No. 69502724.7-08
1
Zarlink Semiconductor Inc.
Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.
Copyright 2003-2005, Zarlink Semiconductor Inc. All Rights Reserved.

MT90866AG2 產品屬性

  • 0現貨

  • 停產

  • -

  • 托盤

  • 停產

  • 開關

  • -

  • 1

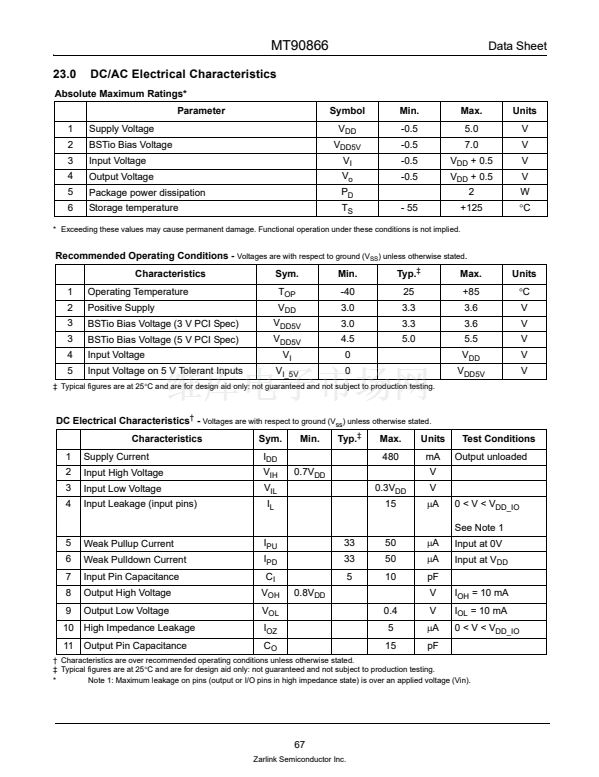

  • 3V ~ 3.6V

  • 480mA

  • -

  • -40°C ~ 85°C

  • 表面貼裝型

  • 344-BBGA

  • 344-PBGA（27x27）
