MT88E45AS Datasheet

  • MT88E45AS

  • 4-Wire Calling Number Identification Circuit 2(4-Wire CNIC2)

  • 27頁

  • MITEL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MT88E45
4-Wire Calling Number Identi鏗乧ation Circuit 2
Advance Information
Features
鈥?/div>
Compatible with:
鈥?Bellcore GR-30-CORE, SR-TSV-002476,
ANSI/TIA/EIA-716, draft TIA/EIA-777;
鈥?ETSI ETS 300 778-1 (FSK only variant) & -2;
鈥?BT (British Telecom) SIN227 & SIN242
Bellcore 鈥楥PE Alerting Signal鈥?(CAS), ETSI
鈥楧ual Tone Alerting Signal鈥?(DT-AS), BT Idle
State and Loop State 鈥楾one Alert Signal鈥?/div>
detection
1200 baud Bell 202 and CCITT V.23 FSK
demodulation
Separate differential input ampli鏗乪rs with
adjustable gain for Tip/Ring and telephone
hybrid or speech IC connections
Selectable 3-wire FSK data interface (bit
stream or 1 byte buffer)
Facility to monitor the stop bit for framing error
check
FSK Carrier detect status output
3 to 5V +/- 10% supply voltage
Uses 3.579545MHz crystal or ceramic
resonator
Low power CMOS with power down
Bellcore CID (Calling Identity Delivery) and
CIDCW (Calling Identity Delivery on Call
Waiting) telephones and adjuncts
ETSI, BT CLIP (Calling Line Identity
Presentation) and CLIP with Call Waiting
telephones and adjuncts
Fax and answering machines
Computer Telephony Integration (CTI) systems
FSKen+Tip/Ring CASen
IN1+
IN1-
GS1
PWDN
(4-Wire CNIC2)
ISSUE 2
March 1999
DS5143
Ordering Information
MT88E45AS
20 Pin SOIC
-40擄C to 85擄C
鈥?/div>
Description
The MT88E45 is a low power CMOS integrated
circuit suitable for receiving the physical layer signals
used in North American (Bellcore) Calling Identity
Delivery on Call Waiting (CIDCW) and Calling
Identity Delivery (CID) services. It is also suitable for
ETSI and BT Calling Line Identity Presentation
(CLIP) and CLIP with Call Waiting services.
The MT88E45 contains a 1200 baud Bell 202/CCITT
V.23 FSK demodulator and a CAS/DT-AS detector.
Two input op-amps allow the MT88E45 to be
connected to both Tip/Ring and the telephone hybrid
or speech IC receive pair for optimal CIDCW
telephone
architectural
implementation.
FSK
demodulation is always on Tip/Ring, while CAS
detection can be on Tip/Ring or Hybrid Receive. Tip/
Ring CAS detection is required for Bellcore鈥檚
proposed Multiple Extension Interworking (MEI) and
BT鈥檚 on-hook CLIP. A selectable FSK data interface
allows the data to be processed as a bit stream or
extracted from a 1 byte on chip buffer. Power
management has been incorporated to power down
the FSK or CAS section when not required. Full chip
power down is also available. The MT88E45 is
suitable for applications using a 鏗亁ed power source
(with a +/-10% variation) between 3 and 5V.
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Applications
鈥?/div>
鈥?/div>
鈥?/div>
MODE
FSK
Bandpass
FSKen
CASen
Mux
Carrier
Detector
DR
STD
Tone
Detection
Algorithm
Guard
Time
FSK
Demodulator
Data Timing
Recovery
DATA
DCLK
+
-
PWDN
Anti-Alias
Filter
PWDN
CD
DR/STD
IN2+
IN2-
GS2
V
REF
+
-
Hybrid CASen
MODE
PWDN
CASen
2130Hz
Bandpass
2750Hz
Bandpass
Bias
Generator
PWDN
Oscillator
FSKen
ST/GT
EST
Vdd
Vss
Control Bit
Decode
CASen
OSC1
OSC2
CB0 CB1 CB2

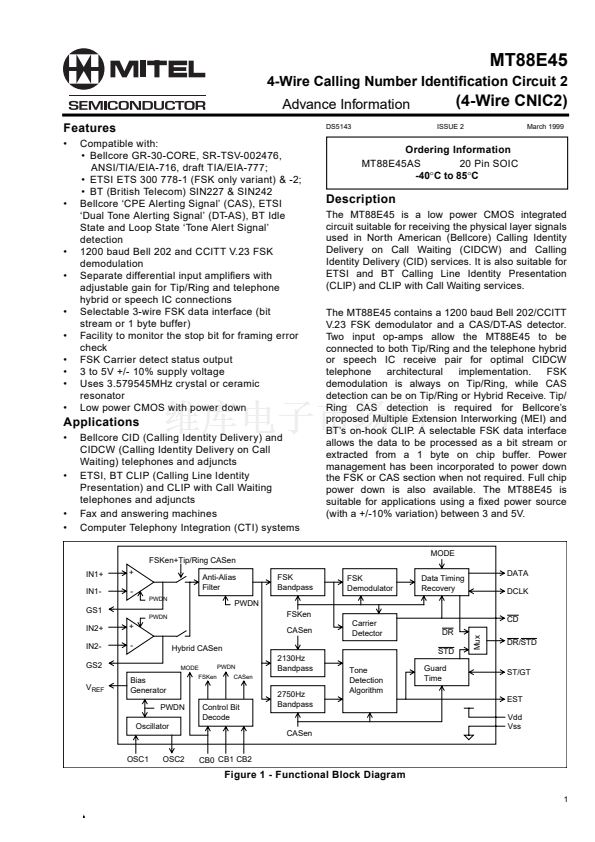

Figure 1 - Functional Block Diagram
