MSM5718B70 Datasheet

  • MSM5718B70

  • 18-Megabit RDRAM (2M x 9)

  • 261.15KB

  • 40頁

  • OKI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

隆 Semiconductor
MSM5718B70
隆 Semiconductor
18-Megabit RDRAM (2M
樓
9)
MSM5718B70
E2G1033-17-54

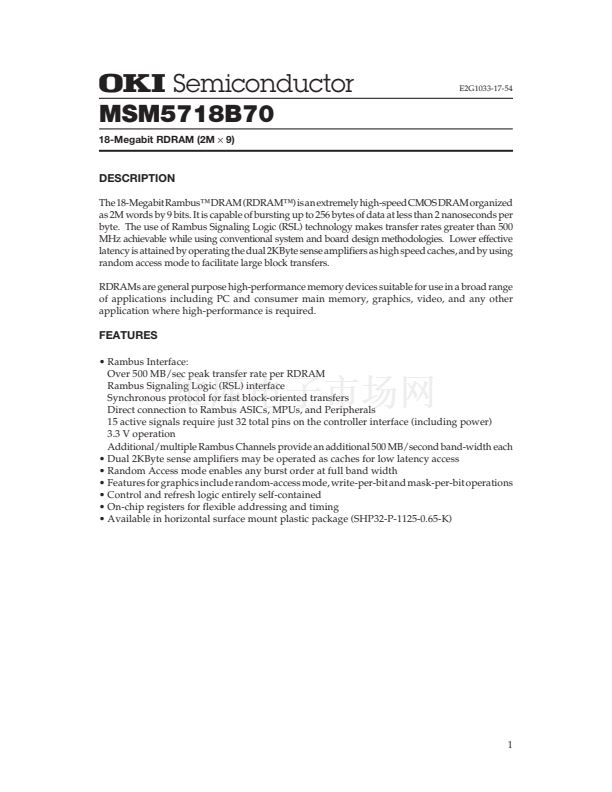

DESCRIPTION
The 18-Megabit Rambus鈩?DRAM (RDRAM鈩? is an extremely high-speed CMOS DRAM organized
as 2M words by 9 bits. It is capable of bursting up to 256 bytes of data at less than 2 nanoseconds per
byte. The use of Rambus Signaling Logic (RSL) technology makes transfer rates greater than 500
MHz achievable while using conventional system and board design methodologies. Lower effective
latency is attained by operating the dual 2KByte sense amplifiers as high speed caches, and by using
random access mode to facilitate large block transfers.
RDRAMs are general purpose high-performance memory devices suitable for use in a broad range
of applications including PC and consumer main memory, graphics, video, and any other
application where high-performance is required.
FEATURES
鈥?Rambus Interface:
Over 500 MB/sec peak transfer rate per RDRAM
Rambus Signaling Logic (RSL) interface
Synchronous protocol for fast block-oriented transfers
Direct connection to Rambus ASICs, MPUs, and Peripherals
15 active signals require just 32 total pins on the controller interface (including power)
3.3 V operation
Additional/multiple Rambus Channels provide an additional 500 MB/second band-width each
鈥?Dual 2KByte sense amplifiers may be operated as caches for low latency access
鈥?Random Access mode enables any burst order at full band width
鈥?Features for graphics include random-access mode, write-per-bit and mask-per-bit operations
鈥?Control and refresh logic entirely self-contained
鈥?On-chip registers for flexible addressing and timing
鈥?Available in horizontal surface mount plastic package (SHP32-P-1125-0.65-K)
1
