Cascadable Silicon Bipolar

MMIC Amplifier

Technical Data

MSA-0270

Features

鈥?Cascadable 50

鈩?/div>

Gain Block

鈥?3 dB Bandwidth:

DC to 2.8 GHz

鈥?12.0 dB Typical Gain at

1.0 GHz

鈥?Unconditionally Stable

(k>1)

鈥?Hermetic Gold-ceramic

Microstrip Package

MMIC is designed for use as a

general purpose 50

鈩?/div>

gain block.

Typical applications include

narrow and broad band IF and RF

amplifiers in industrial and

military applications.

The MSA-series is fabricated using

HP鈥檚 10 GHz f

, 25 GHz f

MAX

silicon bipolar MMIC process

which uses nitride self-alignment,

ion implantation, and gold metalli-

zation to achieve excellent

performance, uniformity and

reliability. The use of an external

bias resistor for temperature and

current stability also allows bias

flexibility.

70 mil Package

Description

The MSA-0270 is a high perfor-

mance silicon bipolar Monolithic

Microwave Integrated Circuit

(MMIC) housed in a hermetic,

high reliability package. This

Typical Biasing Configuration

bias

> 7 V

RFC (Optional)

block

MSA

block

OUT

= 5 V

5965-9698E

6-278

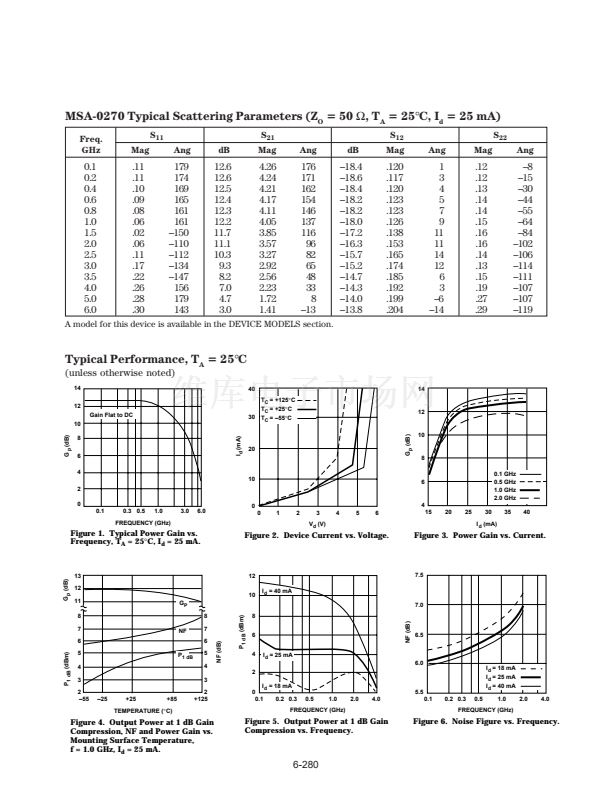

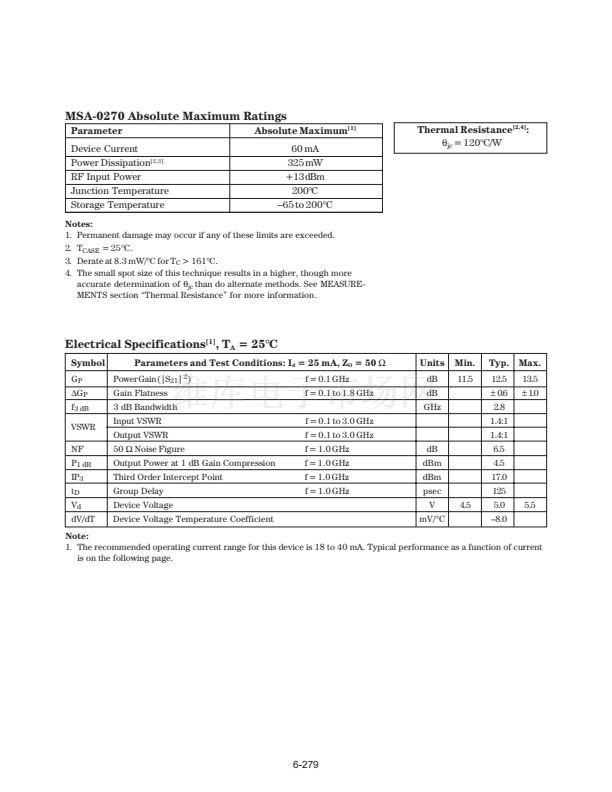

數據列表
MSA-0270
標準包裝
100
類別
RF/IF 和 RFID
家庭
RF 放大器
系列
-
頻率
0Hz ~ 2.8GHz
P1dB
4.5dBm（2.8mW）
增益
11.5dB ~ 13.5dB
噪音數據
6.5dB
RF 型
ISM
電源電壓
4.5 V ~ 5.5 V
電流 - 電源
25mA
測試頻率
1GHz
封裝/外殼
4-SMD（70 密耳）
包裝
散裝
