MS87V1021 Datasheet

  • MS87V1021

  • Recording and Playback IC with Built-in 2-Mbit DRAM

  • 63頁

  • OKI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

PEDS87V1021-01
1
Semiconductor
MS87V1021
Recording and Playback IC with Built-in 2-Mbit DRAM
This version: Sept. 2000
GENERAL DESCRIPTION
The MS87V1021 is a single chip recording and playback IC that is controlled by the microcontroller in serial mode,
compresses voice with the 4-bit OKI ADPCM algorithm or 4-bit OKI ADPCM2 algorithm with high tone quality,

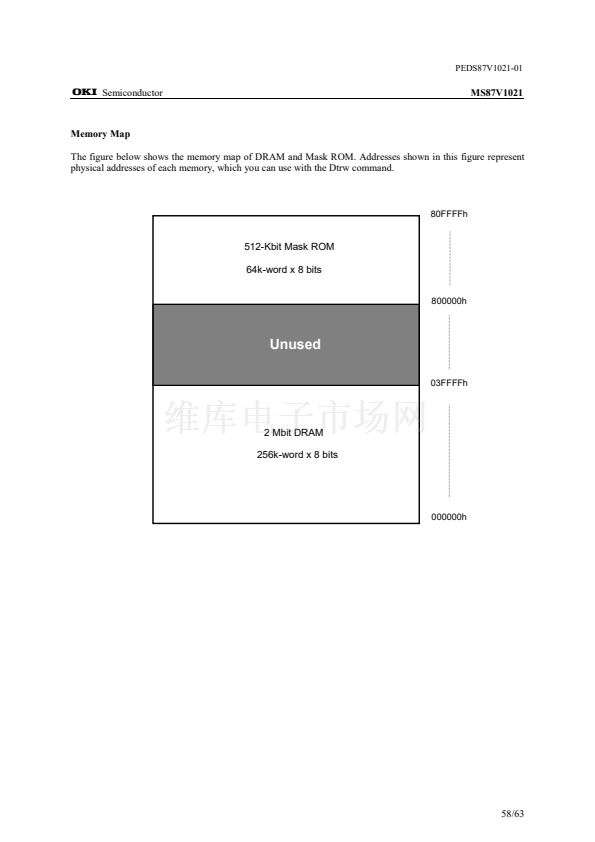

and has 2-Mbit DRAM in which recorded data is stored and 512-Kbit mask ROM in which fixed messages reside.

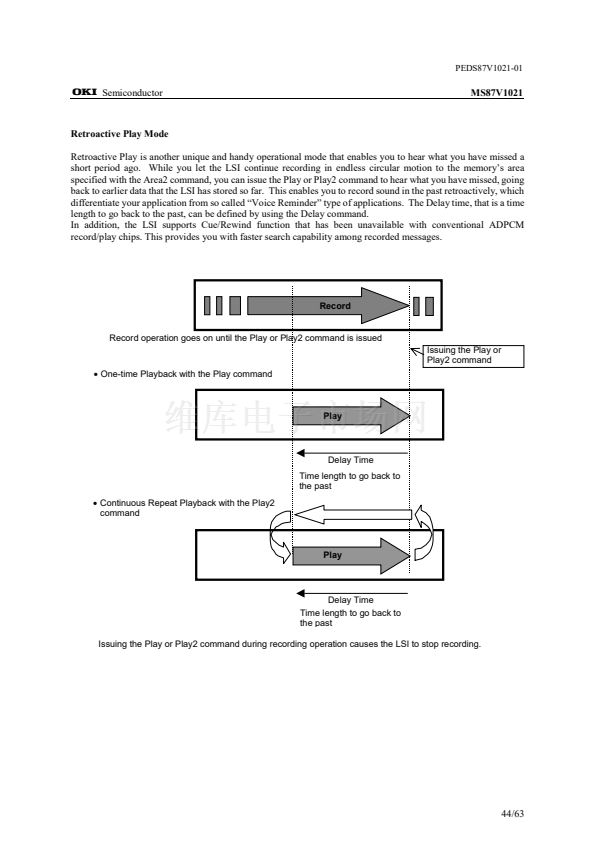

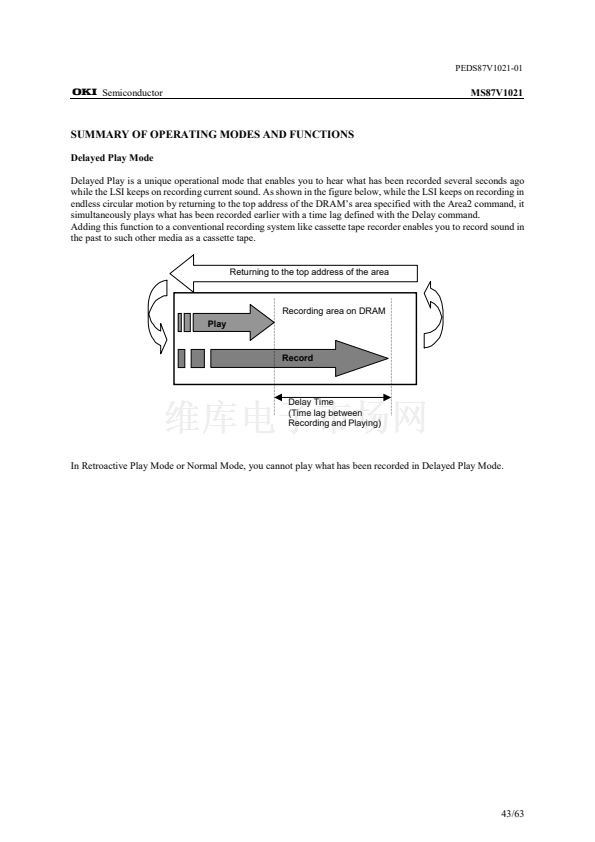

The MS87V1021 includes such features as Normal Recording and Playback, Delayed playback, Retroactive

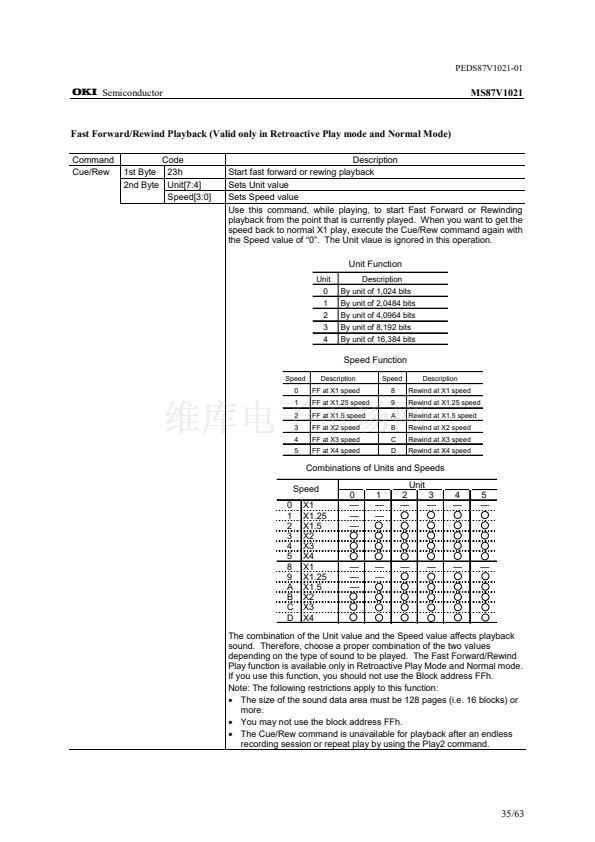

playback, Fast forwarding, and Rewinding.

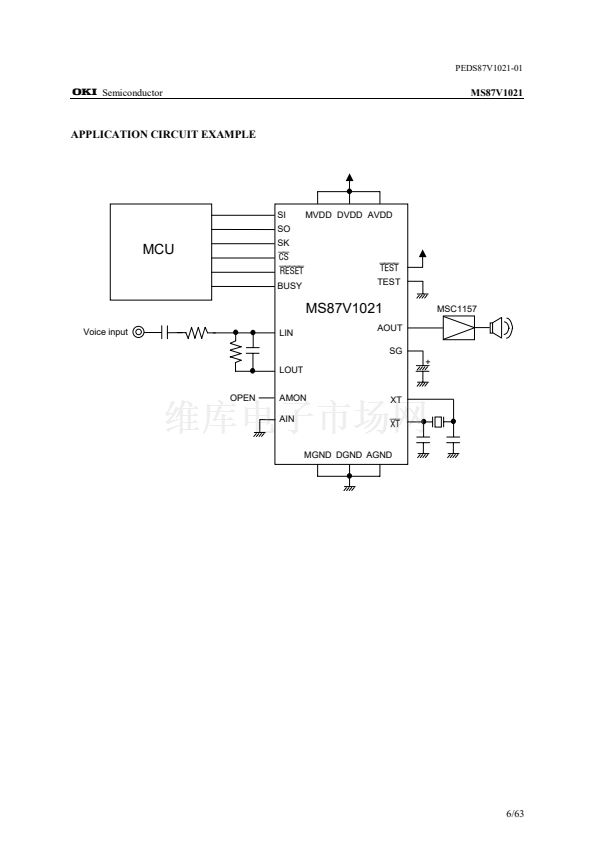

The internal memory in which voice data is stored allows a recording/playback system to be constructed merely by
externally connecting it to a microphone, a speaker driving amplifier, and a speaker.
FEATURES
鈥?/div>

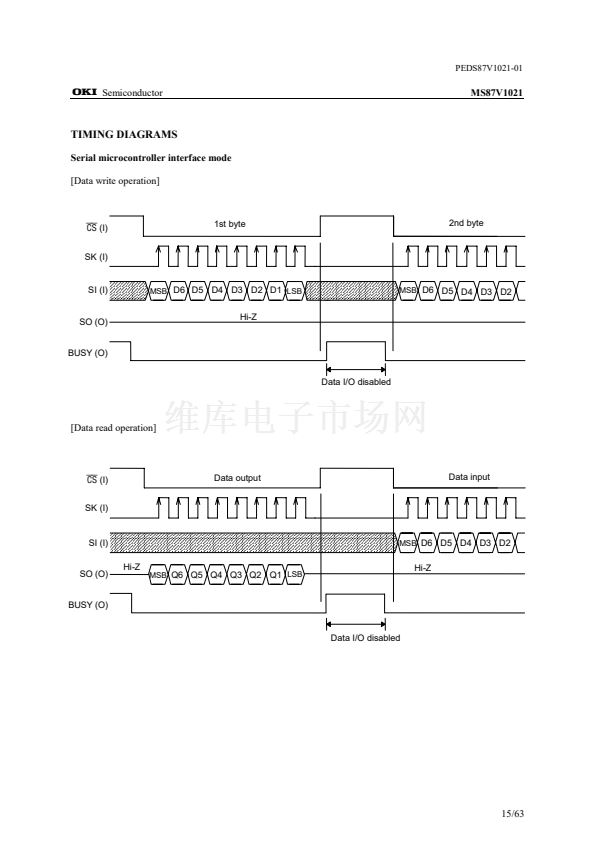

Serial microcontroller interface (clock synchronized)
鈥?/div>
Built-in 512-Kbit mask ROM for fixed messages
ROM playback time :
Approx. 15 seconds (Fsam = 8.0 kHz)
Approx. 20 seconds (Fsam = 6.4 kHz)
Approx. 30 seconds (Fsam = 4.0 kHz)
鈥?/div>
Voice analyzing and synthesizing system :
4-bit OKI ADPCM or 4-bit OKI ADPCM2 algorithm
8-bit OKI non-linear PCM algorithm (for ROM playback only)
鈥?/div>
Sampling frequency (source oscillation frequency: 4.096 MHz) :
4.0 kHz, 5.3 kHz, 6.4 kHz, 8.0 kHz, or 10.6 kHz
鈥?/div>
Recording time:
Approx. 60 seconds (Fsam = 8.0 kHz)
Approx. 80 seconds (Fsam = 6.4 kHz)
Approx. 120 seconds (Fsam = 4.0 kHz)
鈥?/div>
Built-in 14-bit A-to-D and D-to-A converters
鈥?/div>

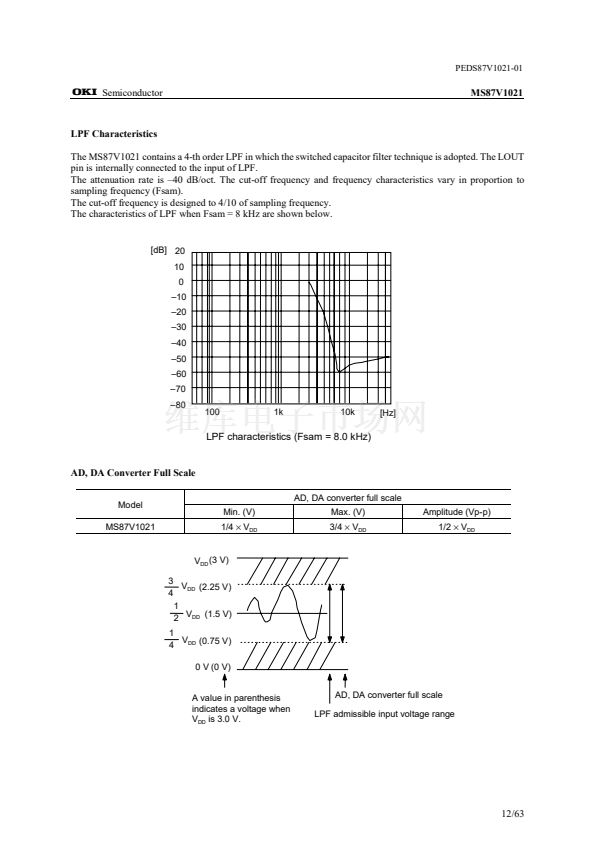

Built-in LPF: Attenuation rate 鈥?0 dB/oct
鈥?/div>
Number of phrases
Variable message: 255 phrases
Fixed phrases: 255 phrases
鈥?/div>
Source oscillation frequency: 4.096 MHz
鈥?/div>
Supply voltage: 2.7 to 3.6 V
鈥?/div>
Operating current:
15 mA max. (source oscillation frequency : 4.096 MHz, Supply voltage : 3.6 V)
鈥?/div>
Operating temperature: 鈥?0 to +70擄 C
鈥?/div>
Package: 32-pin TSOP Type I
1/63
