MRW2001 Datasheet

  • MRW2001

  • MICROWAVE POWER TRANSISTORS

  • 6頁

  • MOTOROLA   MOTOROLA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

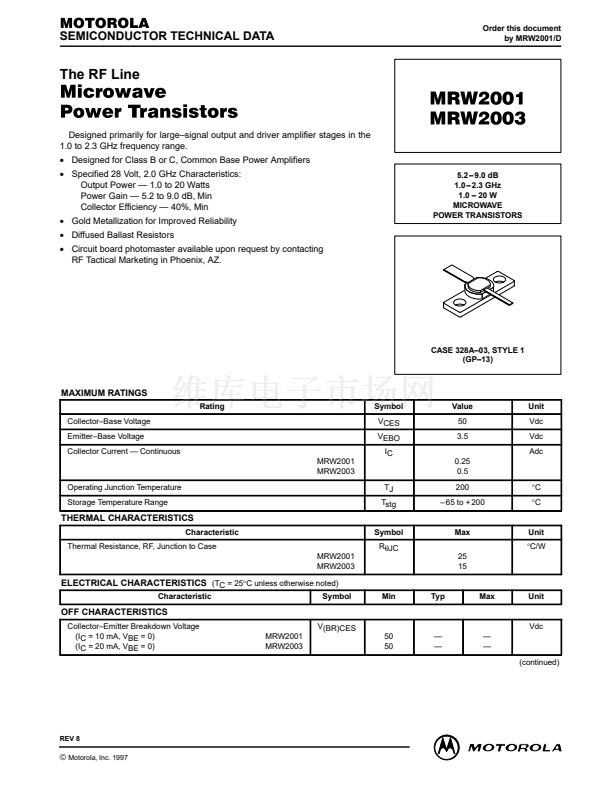

MOTOROLA
The RF Line
SEMICONDUCTOR TECHNICAL DATA
Order this document
by MRW2001/D
Microwave
Power Transistors
Designed primarily for large鈥搒ignal output and driver amplifier stages in the
1.0 to 2.3 GHz frequency range.
鈥?/div>
Designed for Class B or C, Common Base Power Amplifiers
鈥?/div>
Specified 28 Volt, 2.0 GHz Characteristics:
Output Power 鈥?1.0 to 20 Watts
Power Gain 鈥?5.2 to 9.0 dB, Min
Collector Efficiency 鈥?40%, Min
鈥?/div>
Gold Metallization for Improved Reliability
鈥?/div>
Diffused Ballast Resistors
鈥?/div>
Circuit board photomaster available upon request by contacting
RF Tactical Marketing in Phoenix, AZ.
MRW2001
MRW2003
5.2 鈥?9.0 dB
1.0 鈥?2.3 GHz
1.0 鈥?20 W
MICROWAVE
POWER TRANSISTORS

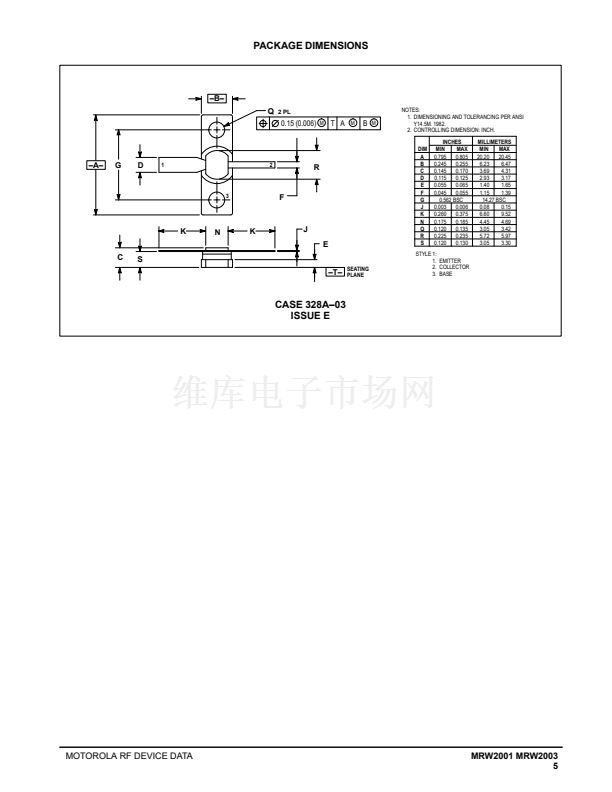

CASE 328A鈥?3, STYLE 1
(GP鈥?3)
MAXIMUM RATINGS
Rating
Collector鈥揃ase Voltage
Emitter鈥揃ase Voltage
Collector Current 鈥?Continuous
MRW2001
MRW2003
Operating Junction Temperature
Storage Temperature Range
TJ
Tstg
Characteristic
Thermal Resistance, RF, Junction to Case
MRW2001
MRW2003
Symbol
R
胃JC
Symbol
VCES
VEBO
IC
0.25
0.5
200
鈥?65 to + 200
擄C
擄C
Value
50
3.5
Unit
Vdc
Vdc
Adc
THERMAL CHARACTERISTICS
Max
25
15
Unit
擄C/W
ELECTRICAL CHARACTERISTICS
(TC = 25擄C unless otherwise noted)
Characteristic
Symbol
Min
Typ
Max
Unit
OFF CHARACTERISTICS
Collector鈥揈mitter Breakdown Voltage
(IC = 10 mA, VBE = 0)
(IC = 20 mA, VBE = 0)
V(BR)CES
MRW2001
MRW2003
50
50
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>

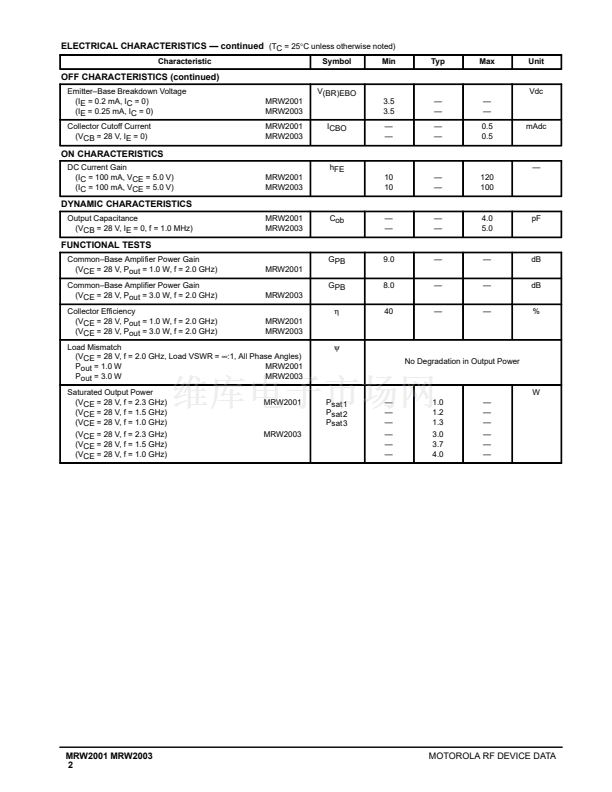

(continued)
Vdc
REV 8
漏
MOTOROLA RF DEVICE DATA
Motorola, Inc. 1997
MRW2001 MRW2003
1
