MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document
by MRFIC2101/D
The MRFIC Line
900 MHz TX Mixer/Exciter
The MRFIC2101 is a high linearity transmit mixer and exciter designed
primarily for Digital Cellular radio systems. The mixer is double-balanced for
excellent LO and spurious rejection. An on-board LO buffer is provided to
reduce LO power requirements and eliminate the need for an external LO
balun. A power down control is provided to minimize current drain with minimum
recovery/turn-on time. The design utilizes Motorola鈥檚 advanced MOSAIC 3
silicon bipolar RF process to yield superior performance in a cost effective
monolithic device.
鈥?/div>
High Linearity IP30 = 23 dBm (Typ)
鈥?/div>
Low LO Drive Required = 鈥?5 dBm (Typ)
鈥?/div>
Externally Adjustable Exciter Bias Current
鈥?/div>
Power Down Supply Current = 2.0
碌A(chǔ)
(Typ)
鈥?/div>
SO-16 Narrow Body Plastic Package
鈥?/div>
Order MRFIC2101R2 for Tape and Reel.
R2 suffix = 2,500 Units per 16 mm, 13 inch Reel.
鈥?/div>
Device Marking = M2101
MRFIC2101
900 MHz
TX-MIXER/EXCITER
SILICON MONOLITHIC
INTEGRATED CIRCUIT

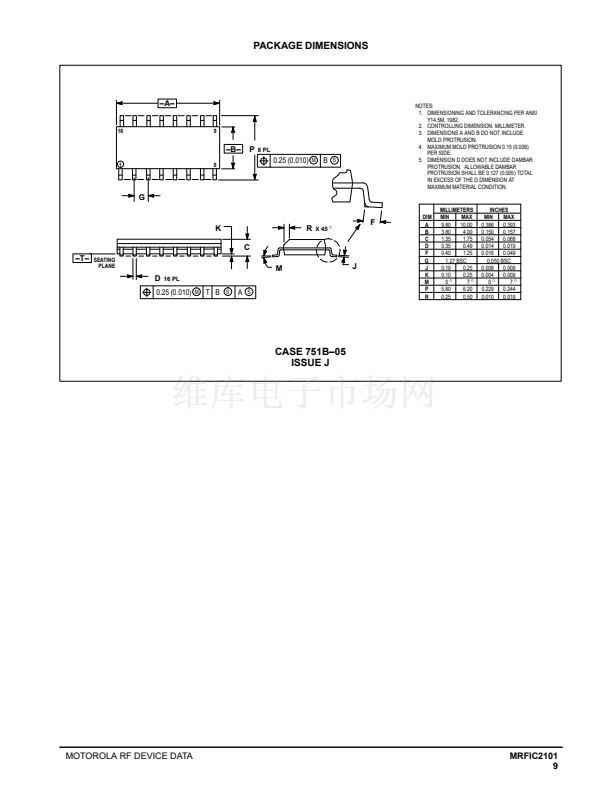

CASE 751B-05
(SO-16)
ABSOLUTE MAXIMUM RATINGS
(TA = 25擄C unless otherwise noted)
Ratings
Supply Voltage
Enable Voltages
Input Power, LO and IF Ports
Operating Ambient Temperature
Storage Temperature
RF Output Power (EX VCC < 4 V)
RF Output Power (4 V< EX VCC
鈮?/div>
5 V)
Symbol
EX VCC, MX VCC, EX BIAS
MX EN, EX EN
PLO, PIF
TA
Tstg
Pout
Pout
Value
5
6
+10
鈥?35 to + 85
鈥?65 to +150
18
38 鈥?5 EX VCC
Unit
Vdc
Vdc
dBm
擄C
擄C
dBm
dBm
IF IN +
GND
LO IN
MX VCC
GND
EX VCC/EX OUT
GND
EX EN
1
2
3
4
5
6
7
8
16 IF IN 鈥?/div>
15 MX EN
14 RF OUT +/MX VCC
13 RF OUT 鈥?MX VCC
12 GND
11 EX IN
10 GND
9
EX BIAS
Pin Connections and Functional Block Diagram
REV 3
漏
MOTOROLA RF DEVICE DATA
Motorola, Inc. 1997
MRFIC2101
1
