MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document
by MRFIC1807/D
The MRFIC Line
1.8 GHz Power Amp/Switch
Designed primarily for use in DECT, Japan Personal Handy System (PHS)
and other wireless Personal Communication Systems (PCS) applications.
The MRFIC1807 includes a single鈥搒tage power amplifier and transmit/receive
switch in a low鈥揷ost SOIC鈥?6 package. The amplifier portion employs a
depletion mode power GaAs MESFET and produces up to +27 dBm output
with +19 dBm input. On鈥揷hip power control circuitry allows bias adjustment for
optimum performance. The T/R switch is capable of handling up to +28 dBm
through the transmit path without significant increase in insertion loss. The
switch is controlled by CMOS logic level signals 鈥?no negative control voltage
required. The MRFIC1807 is sized to be driven by the MRFIC1806 Driver/
Ramp IC.
Together with the rest of the MRFIC1800 GaAs ICs, this family offers the
complete transmit and receive functions, less LO and filters, needed for a
typical 1.8 GHz cordless telephone.
鈥?/div>
Usable 1500 鈥?2200 MHz
鈥?/div>
8.0 dB Gain Including Switch
鈥?/div>
+26 dBm Minimum Output Power at Antenna Port
鈥?/div>
1.0 dB Typ RX Path Insertion Loss
鈥?/div>
Simple Off鈥揅hip Matching for Maximum Flexibility
鈥?/div>
3.0 to 5.0 V Supply
鈥?/div>
No Spurious Outputs for Load VSWR up to 8:1
鈥?/div>
CMOS Level Switching Signal for T/R Switch
鈥?/div>
Order MRFIC1807R2 for Tape and Reel.
R2 Suffix = 2,500 Units per 16 mm, 13 inch Reel.
鈥?/div>
Device Marking = M1807
MRFIC1807
1.8 GHz POWER AMPLIFIER
AND TRANSMIT/RECEIVE
SWITCH
GaAs MONOLITHIC
INTEGRATED CIRCUIT
CASE 751B鈥?5
(SO鈥?6)
ANTENNA
GND
TX IN
PA OUT
GND
GND
RF IN
GND
1
2
3
4
5
6
7
8
REG VDD
16 REG VDD
15 GND
14 RX OUT
13 VSS
12 GND
11 GND
10 TX/RX
9
PCNTRL
GATE
BIAS

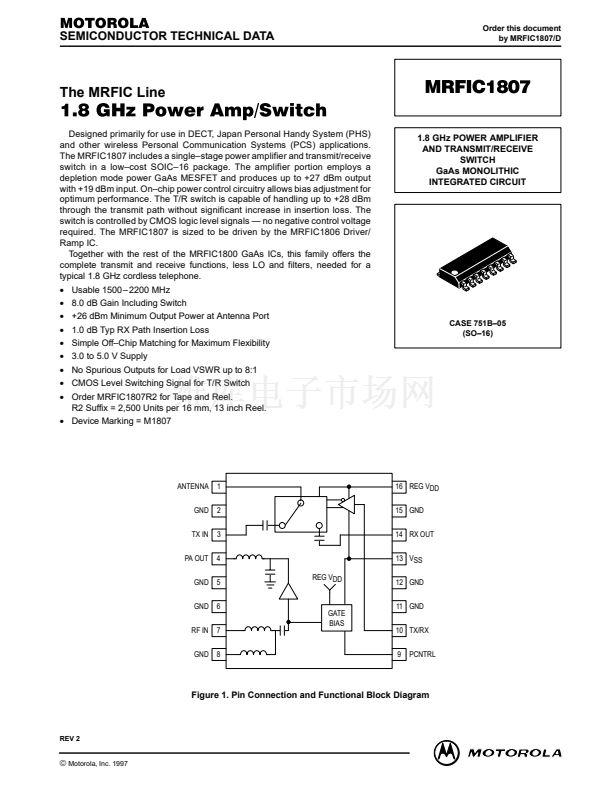

Figure 1. Pin Connection and Functional Block Diagram
REV 2
MOTOROLA RF DEVICE DATA
漏
Motorola, Inc. 1997
MRFIC1807
1
