MRFA2600 Datasheet

  • MRFA2600

  • RF POWER AMPLIFIER

  • 173.63KB

  • 4頁

  • MOTOROLA   MOTOROLA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

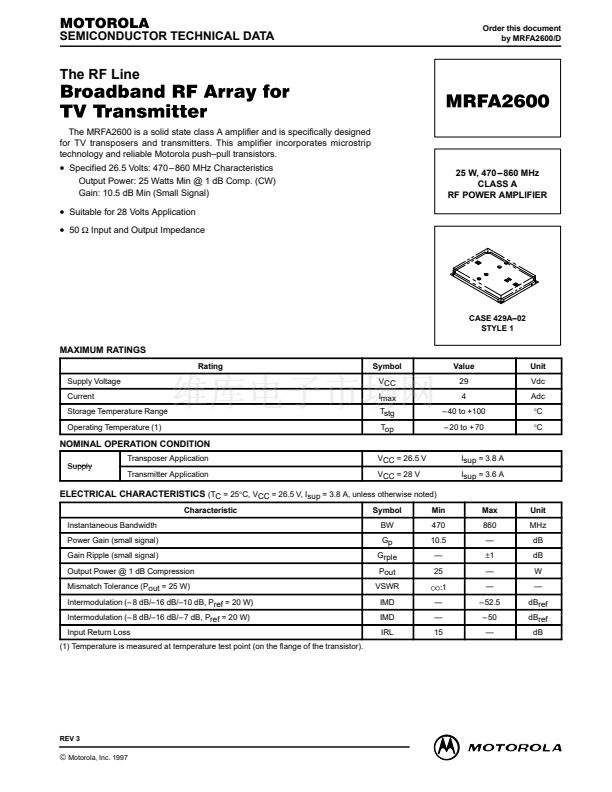

MOTOROLA
The RF Line
SEMICONDUCTOR TECHNICAL DATA
Order this document
by MRFA2600/D
Broadband RF Array for
TV Transmitter
The MRFA2600 is a solid state class A amplifier and is specifically designed
for TV transposers and transmitters. This amplifier incorporates microstrip
technology and reliable Motorola push鈥損ull transistors.
MRFA2600
25 W, 470 鈥?860 MHz
CLASS A
RF POWER AMPLIFIER
鈥?/div>
Specified 26.5 Volts: 470 鈥?860 MHz Characteristics
Output Power: 25 Watts Min @ 1 dB Comp. (CW)
Gain: 10.5 dB Min (Small Signal)
鈥?/div>
Suitable for 28 Volts Application
鈥?/div>
50
鈩?/div>
Input and Output Impedance

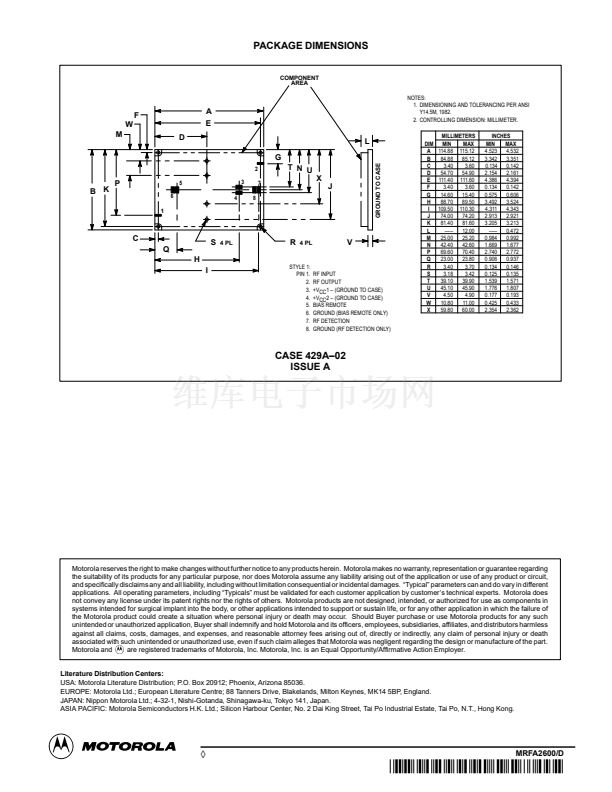

CASE 429A鈥?2
STYLE 1
MAXIMUM RATINGS
Rating
Supply Voltage
Current
Storage Temperature Range
Operating Temperature (1)
Symbol
VCC
Imax
Tstg
Top
Value
29
4
鈥?40 to +100
鈥?20 to + 70
Unit
Vdc
Adc
擄C
擄C
NOMINAL OPERATION CONDITION
Transposer Application
Supply
Transmitter Application
VCC = 26.5 V
VCC = 28 V
Isup = 3.8 A
Isup = 3.6 A
ELECTRICAL CHARACTERISTICS
(TC = 25擄C, VCC = 26.5 V, Isup = 3.8 A, unless otherwise noted)
Characteristic
Instantaneous Bandwidth
Power Gain (small signal)
Gain Ripple (small signal)
Output Power @ 1 dB Compression
Mismatch Tolerance (Pout = 25 W)
Intermodulation (鈥?8 dB/鈥?6 dB/鈥?0 dB, Pref = 20 W)
Intermodulation (鈥?8 dB/鈥?6 dB/鈥?7 dB, Pref = 20 W)
Input Return Loss
(1) Temperature is measured at temperature test point (on the flange of the transistor).
Symbol
BW
Gp
Grple
Pout
VSWR
IMD
IMD
IRL
Min
470
10.5
鈥?/div>
Max
860
鈥?/div>
鹵1
鈥?/div>
鈥?/div>
鈥?52.5
鈥?50
鈥?/div>
Unit
MHz
dB
dB
W
鈥?/div>
dBref
dBref
dB
1
:1
鈥?/div>
鈥?/div>
15
25
REV 3
漏
MOTOROLA RF DEVICE DATA
Motorola, Inc. 1997
MRFA2600
1
