In Tape and Reel. R1 Suffix = 500 Units per 24 mm, 13 inch Reel.

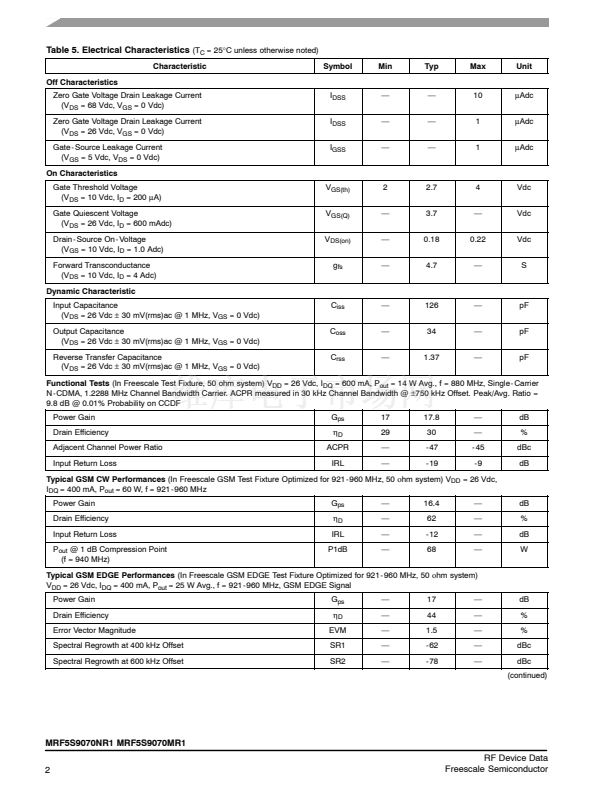

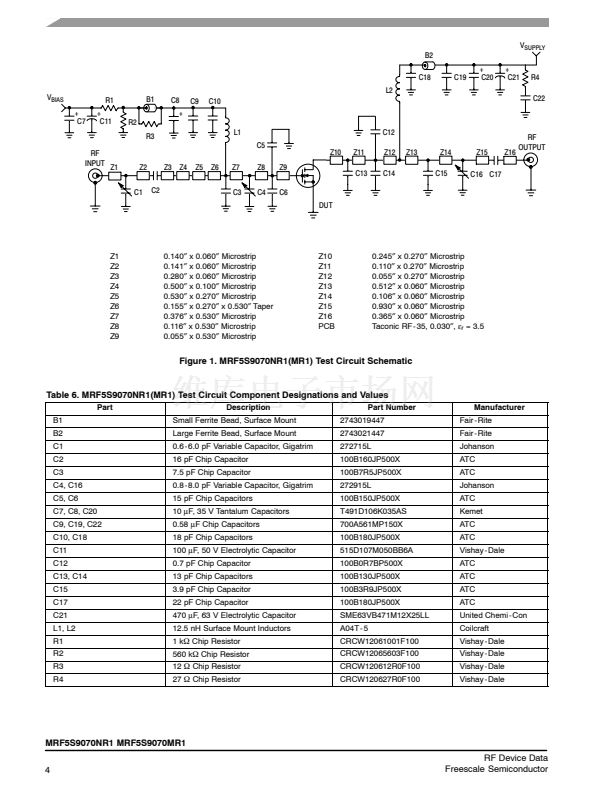

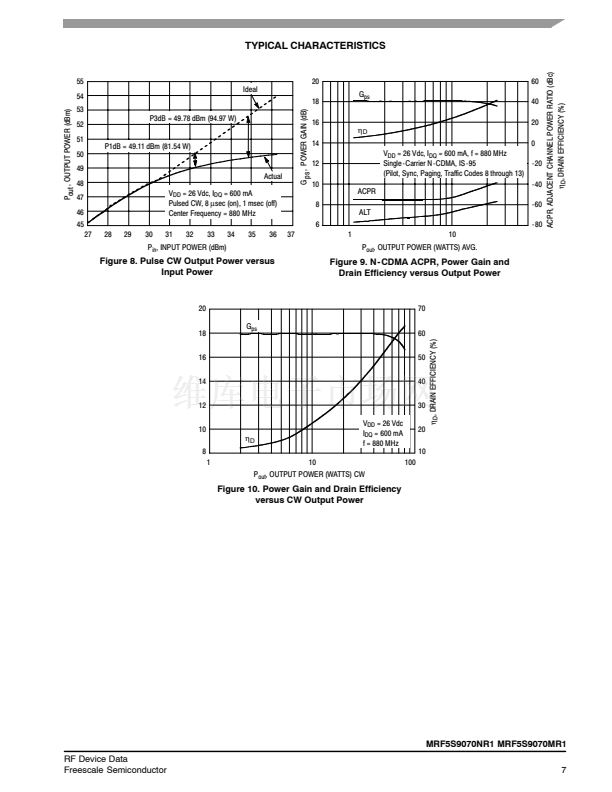

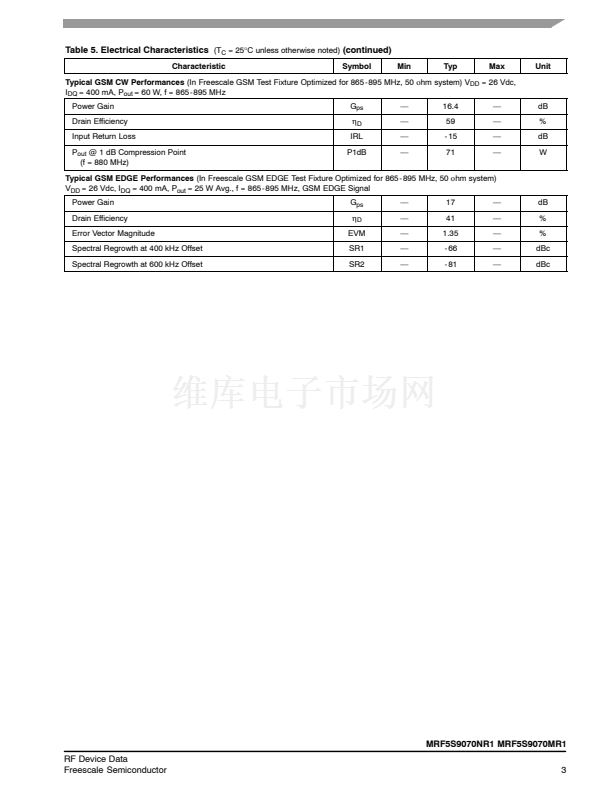

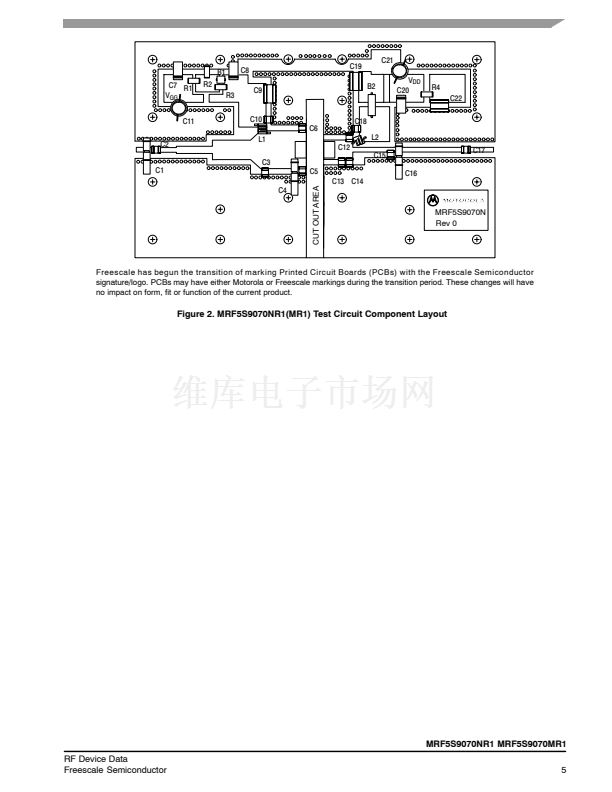

MRF5S9070NR1
MRF5S9070MR1
880 MHz, 70 W, 26 V
SINGLE N - CDMA
LATERAL N - CHANNEL
RF POWER MOSFETs
CASE 1265- 08, STYLE 1
TO - 270 - 2
PLASTIC
Table 1. Maximum Ratings
Rating
Drain - Source Voltage
Gate - Source Voltage
Total Device Dissipation @ T
C
= 25擄C
Derate above 25擄C
Storage Temperature Range
Operating Junction Temperature
Symbol
V
DSS
V
GS
P
D
T
stg
T
J
Value
- 0.5, + 68
- 0.5, + 15
219
1.25
- 65 to +150
200
Unit
Vdc
Vdc
W
W/擄C
擄C
擄C
Table 2. Thermal Characteristics
Characteristic
Thermal Resistance, Junction to Case
Case Temperature 80擄C, 70 W CW
Case Temperature 78擄C, 14 W CW
Symbol
R
胃JC
Value
(1)
0.80
0.93
Unit
擄C/W
Table 3. ESD Protection Characteristics
Test Methodology
Human Body Model (per JESD22 - A114 - B)
Machine Model (per EIA/JESD22 - A115 - A)
Charge Device Model (per JESD22 - C101- A)
Class
2 (Minimum)
A (Minimum)
IV (Minimum)
Table 4. Moisture Sensitivity Level
Test Methodology
Per JESD 22 - A113D, IPC/JEDEC J - STD - 020C
Rating
3
Package Peak Temperature
260
Unit
擄C
1. Refer to AN1955/D,
Thermal Measurement Methodology of RF Power Amplifiers.
Go to http://www.freescale.com/rf.
Select Documentation/Application Notes - AN1955.
NOTE -
CAUTION
- MOS devices are susceptible to damage from electrostatic charge. Reasonable precautions in handling and
packaging MOS devices should be observed.
錚?/div>
Freescale Semiconductor, Inc., 2004. All rights reserved.
MRF5S9070NR1 MRF5S9070MR1
1
RF Device Data
Freescale Semiconductor
