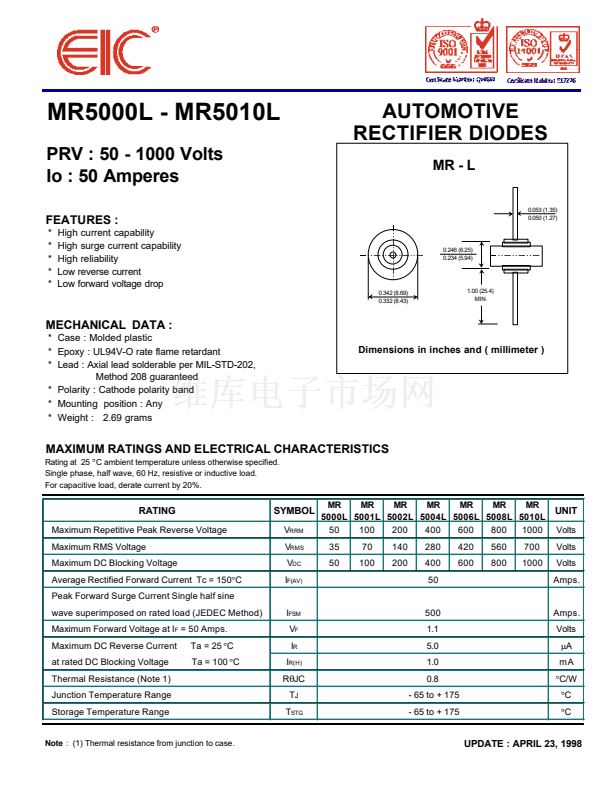

MR5000L - MR5010L
PRV : 50 - 1000 Volts
Io : 50 Amperes
FEATURES :
*
*
*
*
*
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
AUTOMOTIVE
RECTIFIER DIODES
MR - L
0.053 (1.35)
0.050 (1.27)
0.246 (6.25)
0.234 (5.94)
0.342 (8.69)
0.332 (8.43)
1.00 (25.4)
MIN.
MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Cathode polarity band
* Mounting position : Any
* Weight : 2.69 grams
Dimensions in inches and ( millimeter )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
擄
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
RATING
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Average Rectified Forward Current Tc = 150擄C
Peak Forward Surge Current Single half sine
wave superimposed on rated load (JEDEC Method)
Maximum Forward Voltage at I
F
= 50 Amps.
Maximum DC Reverse Current
at rated DC Blocking Voltage
Thermal Resistance (Note 1)
Junction Temperature Range
Storage Temperature Range
Ta = 25
擄C
Ta = 100
擄C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
MR
MR
MR
MR
MR
MR
MR
5000L 5001L 5002L 5004L 5006L 5008L 5010L
50
100
200
400
600
800
1000
35
50
70
100
140
200
280
400
50
420
600
560
800
700
1000
UNIT
Volts
Volts
Volts
Amps.
I
FSM
V
F
I
R
I
R(H)
R
胃
JC
T
J
T
STG
500
1.1
5.0
1.0
0.8
- 65 to + 175
- 65 to + 175
Amps.
Volts
碌A(chǔ)
mA
擄C/W
擄C
擄C
Note
: (1) Thermal resistance from junction to case.
UPDATE : APRIL 23, 1998
