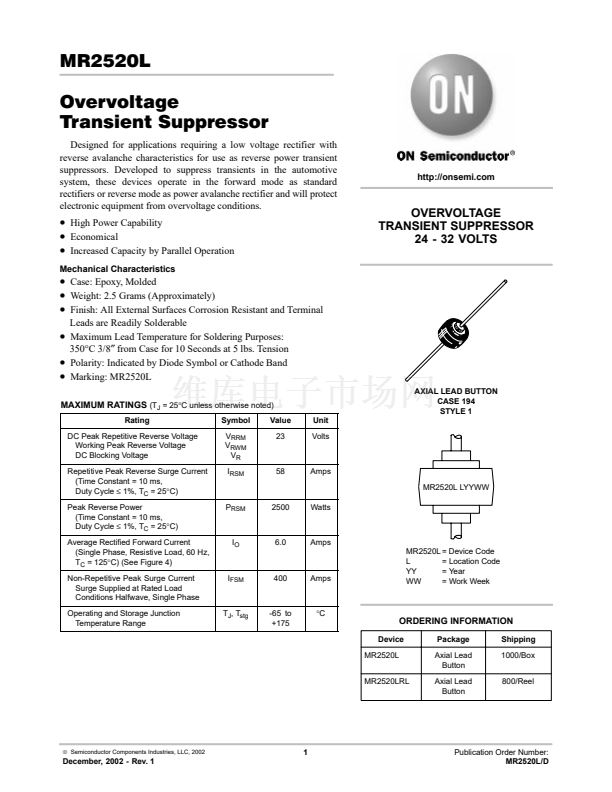

MR2520L

Overvoltage

Transient Suppressor

Designed for applications requiring a low voltage rectifier with

reverse avalanche characteristics for use as reverse power transient

suppressors. Developed to suppress transients in the automotive

system, these devices operate in the forward mode as standard

rectifiers or reverse mode as power avalanche rectifier and will protect

electronic equipment from overvoltage conditions.

http://onsemi.com

鈥?/div>

High Power Capability

鈥?/div>

Economical

鈥?/div>

Increased Capacity by Parallel Operation

Mechanical Characteristics

OVERVOLTAGE

TRANSIENT SUPPRESSOR

24 - 32 VOLTS

鈥?/div>

Case: Epoxy, Molded

鈥?/div>

Weight: 2.5 Grams (Approximately)

鈥?/div>

Finish: All External Surfaces Corrosion Resistant and Terminal

Leads are Readily Solderable

鈥?/div>

Maximum Lead Temperature for Soldering Purposes:

350擄C 3/8鈥?from Case for 10 Seconds at 5 lbs. Tension

鈥?/div>

Polarity: Indicated by Diode Symbol or Cathode Band

鈥?/div>

Marking: MR2520L

MAXIMUM RATINGS

(T

J

= 25擄C unless otherwise noted)

Rating

DC Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

Repetitive Peak Reverse Surge Current

(Time Constant = 10 ms,

Duty Cycle

鈮?/div>

1%, T

C

= 25擄C)

Peak Reverse Power

(Time Constant = 10 ms,

Duty Cycle

鈮?/div>

1%, T

C

= 25擄C)

Average Rectified Forward Current

(Single Phase, Resistive Load, 60 Hz,

T

C

= 125擄C) (See Figure 4)

Non-Repetitive Peak Surge Current

Surge Supplied at Rated Load

Conditions Halfwave, Single Phase

Operating and Storage Junction

Temperature Range

Symbol

V

RRM

V

RWM

V

R

I

RSM

Value

23

Unit

Volts

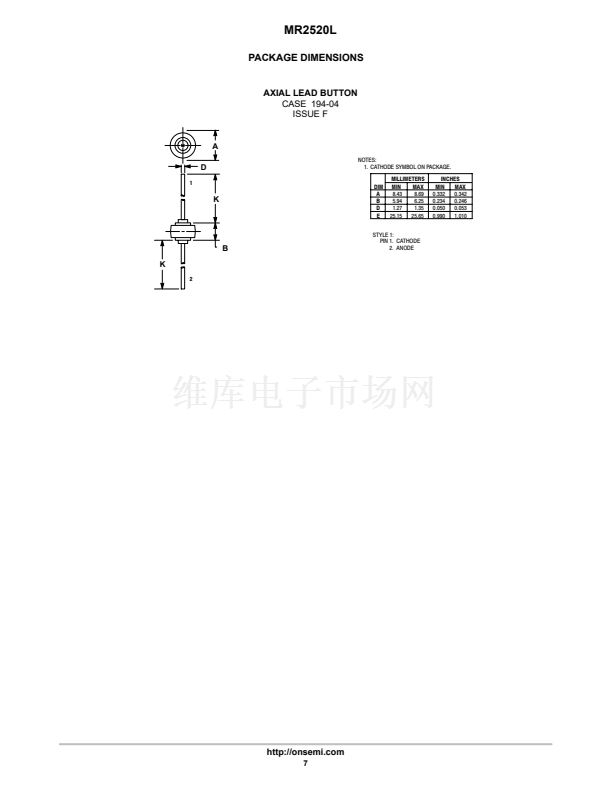

AXIAL LEAD BUTTON

CASE 194

STYLE 1

58

Amps

MR2520L LYYWW

P

RSM

2500

Watts

I

O

6.0

Amps

MR2520L = Device Code

L

= Location Code

YY

= Year

WW

= Work Week

I

FSM

400

Amps

T

J

, T

stg

-65 to

+175

擄C

ORDERING INFORMATION

Device

MR2520L

MR2520LRL

Package

Axial Lead

Button

Axial Lead

Button

Shipping

1000/Box

800/Reel

漏

Semiconductor Components Industries, LLC, 2002

1

December, 2002 - Rev. 1

Publication Order Number:

MR2520L/D

標準包裝
800
類別
過電壓，電流，溫度裝置
家庭
TVS - 二極管
系列
-
電壓 - 反向隔離（標準值）
23V
電壓 - 擊穿
24V
功率（瓦特）
2500W
電極標記
單向
安裝類型
通孔
封裝/外殼
按鈕，軸向
供應商設備封裝
Microde 按鈕
包裝
帶卷 (TR)
