MPC17529EL Datasheet

  • MPC17529EL

  • 0.7 A Dual H-Bridge Motor Driver with 3.0V/5.0V Compatible L...

  • 12頁

  • MOTOROLA   MOTOROLA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Freescale Semiconductor, Inc.
MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Document order number: MPC17529
Rev 1.0, 03/2004
Advance Information
0.7 A Dual H-Bridge Motor Driver
with 3.0V/5.0V Compatible Logic I/O
The 17529 is a monolithic dual H-Bridge power IC ideal for portable
electronic applications containing bipolar step motors and/or brush DC-motors
(e.g., cameras and disk drive head positioners).
The 17529 operates from 2.0 V to 6.8 V, with independent control of each
H-Bridge via parallel MCU interface (3.0 V- and 5.0 V-compatible logic). The
device features on-board charge pump, as well as built-in shoot-through
current protection and an undervoltage shutdown function.
The 17529 has four operating modes: Forward, Reverse, Brake, and
Tri-Stated (High Impedance). The 17529 has a low total R
DS(ON)
of 1.2
鈩?/div>
(max
@ 25擄C).
The 17529鈥檚 low output resistance and high slew rates provide efficient
drive for many types of micromotors.
Features
鈥?Low Total R
DS(ON)
0.7
鈩?/div>
(Typ), 1.2
鈩?/div>
(Max) @ 25
擄C
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Output Current 0.7 A (DC), 1.4 A (Peak)
Shoot-Through Current Protection Circuit
3.0 V/5.0 V CMOS-Compatible Inputs
PWM Control Input Frequency up to 200 kHz
Built-In Charge Pump Circuit
Low Power Consumption
Undervoltage Detection and Shutdown Circuit
Pb-Free Packaging Designated by Suffix Code EV
17529
3.0 V/5.0 V LOGIC COMPATIBLE
0.7 A DUAL H-BRIDGE
MOTOR DRIVER IC
Freescale Semiconductor, Inc...

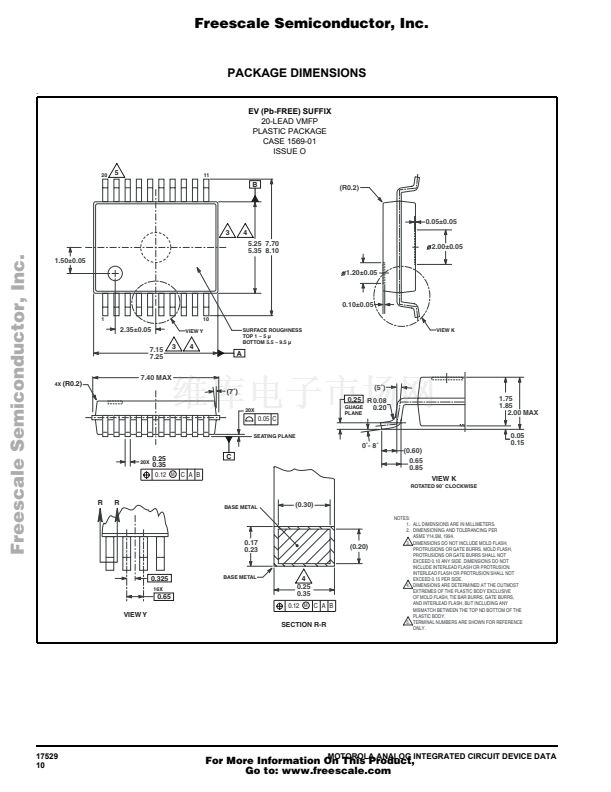

EV (Pb-FREE) SUFFIX
CASE 1569-01
20-LEAD VMFP
ORDERING INFORMATION
Device
MPC17529EV/EL
Temperature
Range (T
A
)
-20擄C to 65擄C
Package
20 VMFP

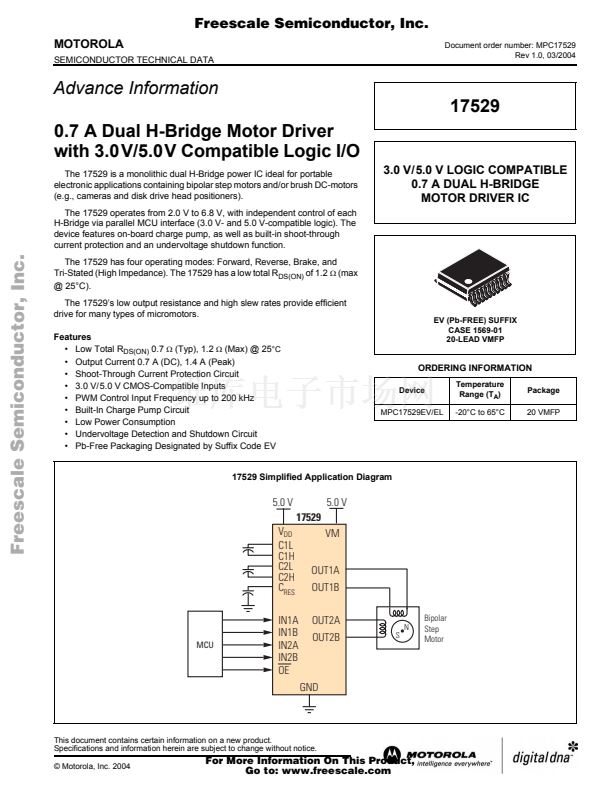

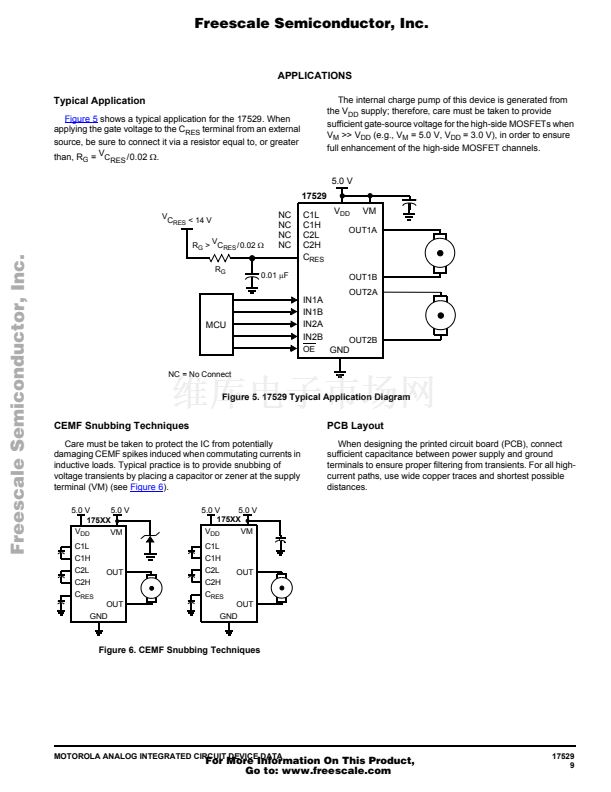

17529 Simplified Application Diagram
Simplified Application Diagram
5.0 V
17529
V
DD
C1L
C1H
C2L
C2H
C
RES
IN1A
IN1B
IN2A
IN2B
OE
5.0 V
VM
OUT1A
OUT1B
OUT2A
OUT2B
S
N
MCU
Bipolar
Step
Motor
GND
This document contains certain information on a new product.
Specifications and information herein are subject to change without notice.
漏 Motorola, Inc. 2004
For More Information On This Product,
Go to: www.freescale.com
