D A T A S H E E T
Lighting
Imaging
Telecom
Sensors
RY
IM
PR
EL
IN
A
Channel Photomultipliers and Modules

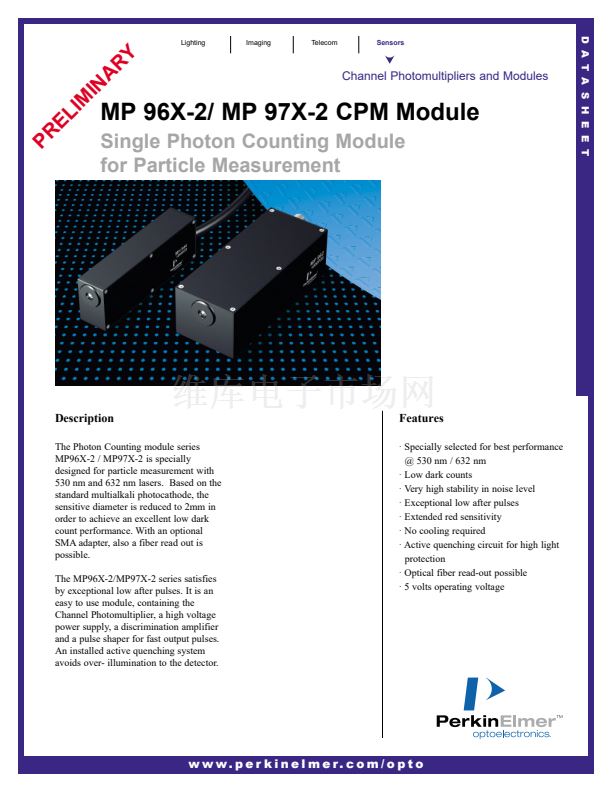

MP 96X-2/ MP 97X-2 CPM Module
Single Photon Counting Module
for Particle Measurement
Description
The Photon Counting module series
MP96X-2 / MP97X-2 is specially
designed for particle measurement with
530 nm and 632 nm lasers. Based on the
standard multialkali photocathode, the
sensitive diameter is reduced to 2mm in
order to achieve an excellent low dark
count performance. With an optional
SMA adapter, also a fiber read out is
possible.
The MP96X-2/MP97X-2 series satisfies
by exceptional low after pulses. It is an
easy to use module, containing the
Channel Photomultiplier, a high voltage
power supply, a discrimination amplifier
and a pulse shaper for fast output pulses.
An installed active quenching system
avoids over- illumination to the detector.
Features
路 Specially selected for best performance
@ 530 nm / 632 nm
路 Low dark counts
路 Very high stability in noise level
路 Exceptional low after pulses
路 Extended red sensitivity
路 No cooling required
路 Active quenching circuit for high light
protection
路 Optical fiber read-out possible
路 5 volts operating voltage
.
w w w. p e r k i n e l m e r. c o m / o p t o
