MP03TT300

MP03TT300

Dual Thyristor Water Cooled Module

Preliminary Information

DS5428-1.1 June 2001

FEATURES

s

s

s

s

s

s

Dual Device Module

Electrically Isolated Package

Pressure Contact Construction

International Standard Footprint

Alumina (Non Toxic) Isolation Medium

Integral Water Cooled Heatsink

KEY PARAMETERS

V

DRM

I

T(AV)

I

TSM(per arm)

I

T(RMS)

V

isol

1800V

310A

8100A

490A

3000V

G

1

K

1

K

2

G

2

1

2

3

APPLICATIONS

s

s

s

s

Fig. 1 Circuit diagram

Motor Control

Controlled Rectifier Bridges

Heater Control

AC Phase Control

VOLTAGE RATINGS

Type Number

Repetitive Peak

Voltages

V

DRM

V

RRM

V

1800

1700

1600

1500

Conditions

MP03TT300-18

MP03TT300-17

MP03TT300-16

MP03TT300-15

T

vj

= 0藲 to 125藲C,

I

DRM

= I

RRM

= 30mA

V

DSM

= V

RSM

=

V

DRM

= V

RRM

+ 100V

respectively

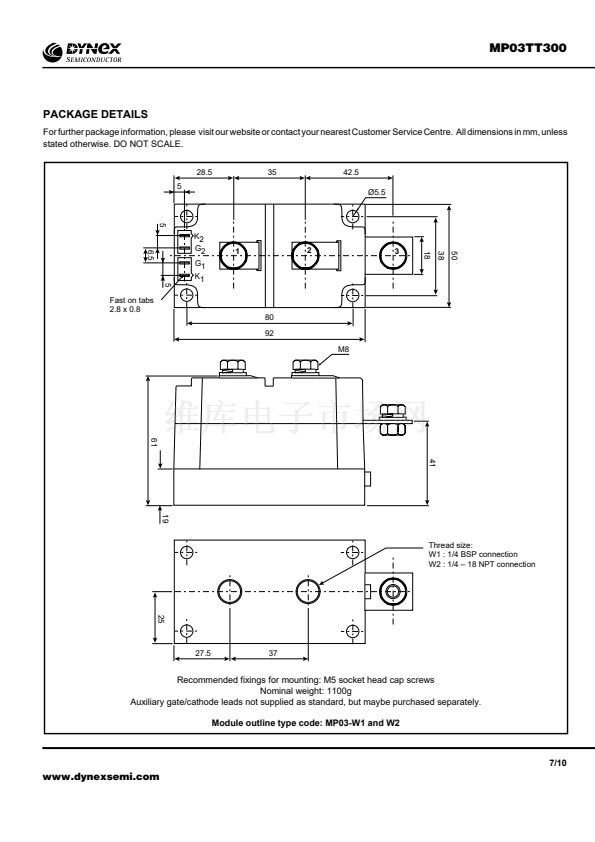

Outline type code:

MP03 - W1 or W2

Outline type code:

MP03 - W3 or W4

Lower voltage grades available

ORDERING INFORMATION

Order As:

MP03TT300-XX W1

MP03TT300-XX W2

MP03TT300-XX W3

MP03TT300-XX W3A

MP03TT300-XX W4

With 1/4 BSP connection

1/4 鈥?18 NPT connection

1/4 鈥?18 NPT connection

1/4 鈥?18 NPT water connection thread

With 1/4 BSP connection

XX shown in the part number about represents V

DRM

/100

selection required, e.g. MP03TT300-16-W3

Note: When ordering, please use the whole part number.

Auxiliary gate and cathode leads can be ordered separately.

Outline type code: MP03 - W3A

(See package details for further information)

Fig. 2 Electrical connections - (not to scale)

1/10

www.dynexsemi.com
