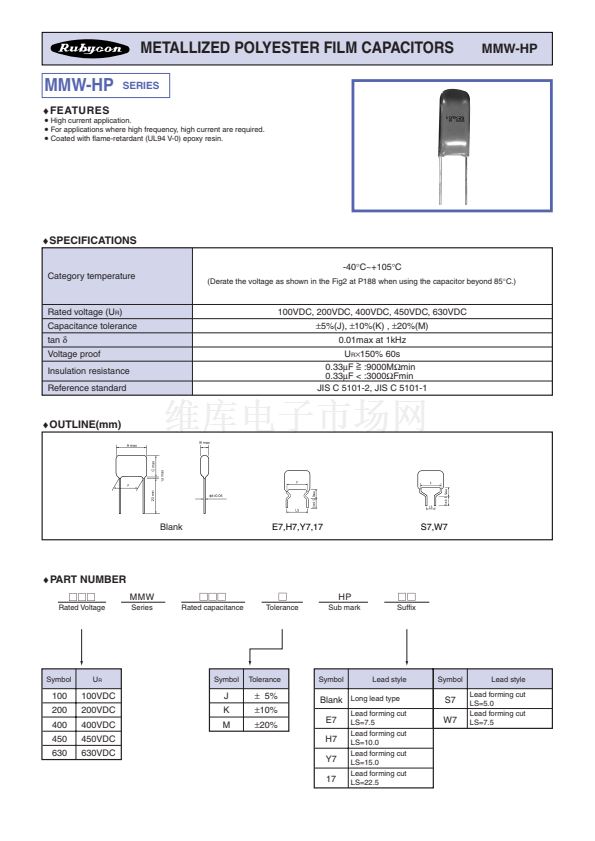

METALLIZED POLYESTER FILM CAPACITORS

MMW-HP

鈾EATURES

SERIES

鈥?/div>

High current application.

鈥?/div>

For applications where high frequency, high current are required.

鈥?/div>

Coated with flame-retardant (UL94 V-0) epoxy resin.

鈾PECIFICATIONS

-40擄C~+105擄C

Category temperature

(Derate the voltage as shown in the Fig2 at P188 when using the capacitor beyond 85擄C.)

Rated voltage (U

)

Capacitance tolerance

tan

未

Voltage proof

Insulation resistance

Reference standard

100VDC, 200VDC, 400VDC, 450VDC, 630VDC

鹵5%(J), 鹵10%(K)

鹵20%(M)

0.01max at 1kHz

脳150%

60s

0.33碌F > :9000M鈩in

0.33碌F < :3000鈩min

JIS C 5101-2, JIS C 5101-1

鈾UTLINE(mm)

Blank

E7,H7,Y7,17

S7,W7

鈾ART

NUMBER

MMW

Rated Voltage

Series

Rated capacitance

Tolerance

Sub mark

Suffix

Symbol

Tolerance

Symbol

Lead style

Symbol

Lead style

Lead forming cut

LS=5.0

Lead forming cut

LS=7.5

100

200

400

450

630

100VDC

200VDC

400VDC

450VDC

630VDC

鹵

鹵10%

鹵20%

Blank

Long lead type

Lead forming cut

LS=7.5

Lead forming cut

LS=10.0

Lead forming cut

LS=15.0

Lead forming cut

LS=22.5
