MMBR911 Datasheet

  • MMBR911

  • Motorola, Inc [NPN Silicon High-Frequency Transistor]

  • MOTOROLA   MOTOROLA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document
by MMBR911LT1/D

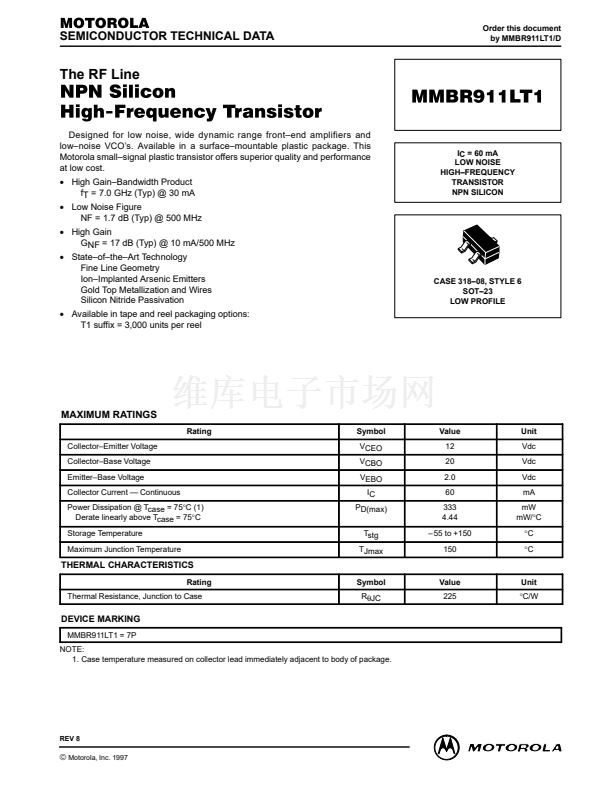

The RF Line
NPN Silicon
High-Frequency Transistor
Designed for low noise, wide dynamic range front鈥揺nd amplifiers and
low鈥搉oise VCO鈥檚. Available in a surface鈥搈ountable plastic package. This
Motorola small鈥搒ignal plastic transistor offers superior quality and performance
at low cost.
鈥?/div>
High Gain鈥揃andwidth Product
fT = 7.0 GHz (Typ) @ 30 mA
鈥?/div>
Low Noise Figure
NF = 1.7 dB (Typ) @ 500 MHz
鈥?/div>
High Gain
GNF = 17 dB (Typ) @ 10 mA/500 MHz
鈥?/div>
State鈥搊f鈥搕he鈥揂rt Technology
Fine Line Geometry
Ion鈥揑mplanted Arsenic Emitters
Gold Top Metallization and Wires
Silicon Nitride Passivation
鈥?/div>
Available in tape and reel packaging options:
T1 suffix = 3,000 units per reel
MMBR911LT1
IC = 60 mA
LOW NOISE
HIGH鈥揊REQUENCY
TRANSISTOR
NPN SILICON
CASE 318鈥?8, STYLE 6
SOT鈥?3
LOW PROFILE

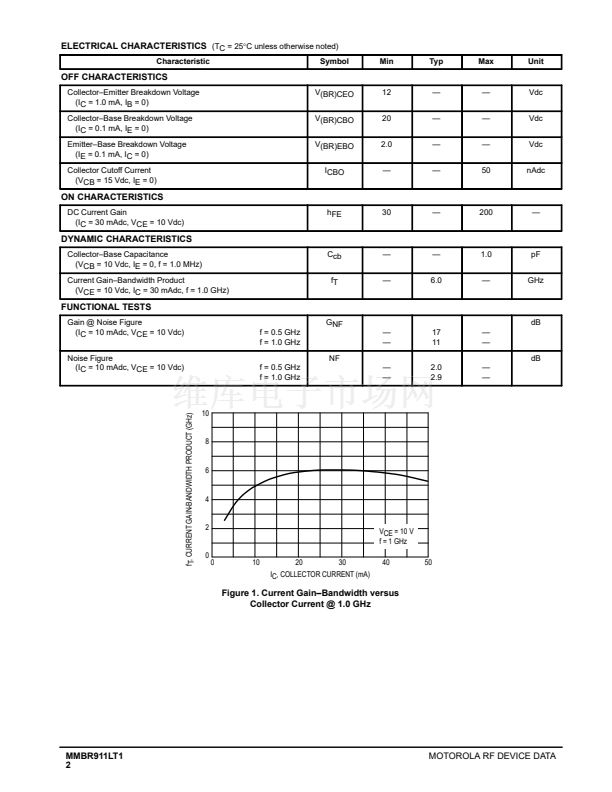

MAXIMUM RATINGS
Rating
Collector鈥揈mitter Voltage
Collector鈥揃ase Voltage
Emitter鈥揃ase Voltage
Collector Current 鈥?Continuous
Power Dissipation @ Tcase = 75擄C (1)
Derate linearly above Tcase = 75擄C
Storage Temperature
Maximum Junction Temperature
Symbol
VCEO
VCBO
VEBO
IC
PD(max)
Tstg
TJmax
Value
12
20
2.0
60
333
4.44
鈥?55 to +150
150
Unit
Vdc
Vdc
Vdc
mA
mW
mW/擄C
擄C
擄C
THERMAL CHARACTERISTICS
Rating
Thermal Resistance, Junction to Case
Symbol
R
胃JC
Value
225
Unit
擄C/W
DEVICE MARKING
MMBR911LT1 = 7P
NOTE:
1. Case temperature measured on collector lead immediately adjacent to body of package.
REV 8
漏
MOTOROLA RF DEVICE DATA
Motorola, Inc. 1997
MMBR911LT1
1
