MM80C98N Datasheet

  • MM80C98N

  • 3-STATE Hex Buffers 3-STATE Hex Inverters

  • 7頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

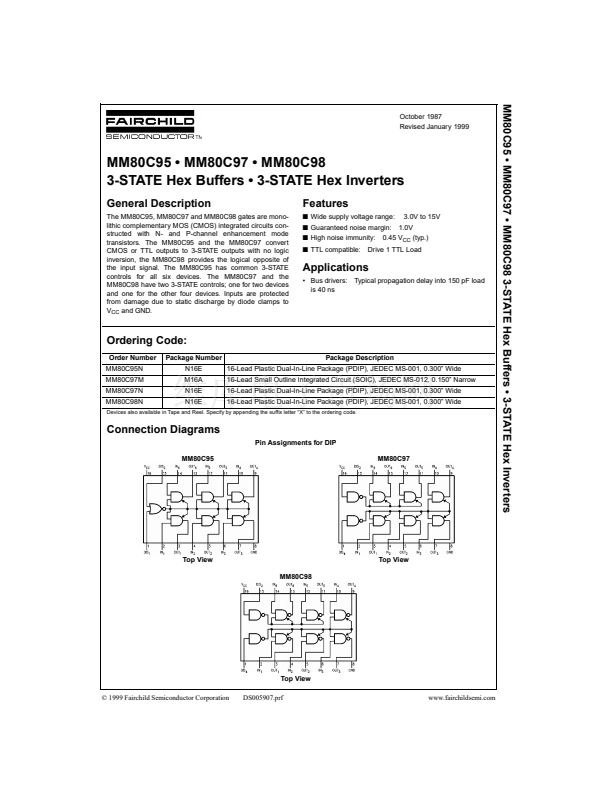

MM80C95 鈥?MM80C97 鈥?MM80C98 3-STATE Hex Buffers 鈥?3-STATE Hex Inverters
October 1987
Revised January 1999
MM80C95 鈥?MM80C97 鈥?MM80C98
3-STATE Hex Buffers 鈥?3-STATE Hex Inverters
General Description
The MM80C95, MM80C97 and MM80C98 gates are mono-
lithic complementary MOS (CMOS) integrated circuits con-
structed with N- and P-channel enhancement mode
transistors. The MM80C95 and the MM80C97 convert
CMOS or TTL outputs to 3-STATE outputs with no logic
inversion, the MM80C98 provides the logical opposite of
the input signal. The MM80C95 has common 3-STATE
controls for all six devices. The MM80C97 and the
MM80C98 have two 3-STATE controls; one for two devices
and one for the other four devices. Inputs are protected
from damage due to static discharge by diode clamps to
V
CC
and GND.
Features
s
Wide supply voltage range:
s
Guaranteed noise margin:
s
High noise immunity:
3.0V to 15V
1.0V
0.45 V
CC
(typ.)
s
TTL compatible: Drive 1 TTL Load
Applications
鈥?Bus drivers: Typical propagation delay into 150 pF load
is 40 ns
Ordering Code:
Order Number
MM80C95N
MM80C97M
MM80C97N
MM80C98N
Package Number
N16E
M16A
N16E
N16E
Package Description
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300鈥?Wide
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150鈥?Narrow
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300鈥?Wide
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300鈥?Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Connection Diagrams
Pin Assignments for DIP
MM80C95
MM80C97
Top View
MM80C98
Top View
Top View
漏 1999 Fairchild Semiconductor Corporation
DS005907.prf
www.fairchildsemi.com

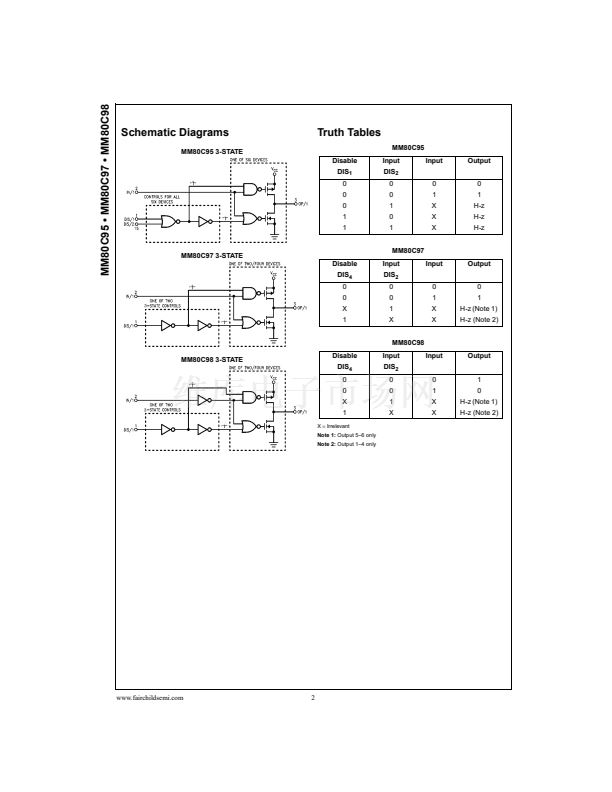

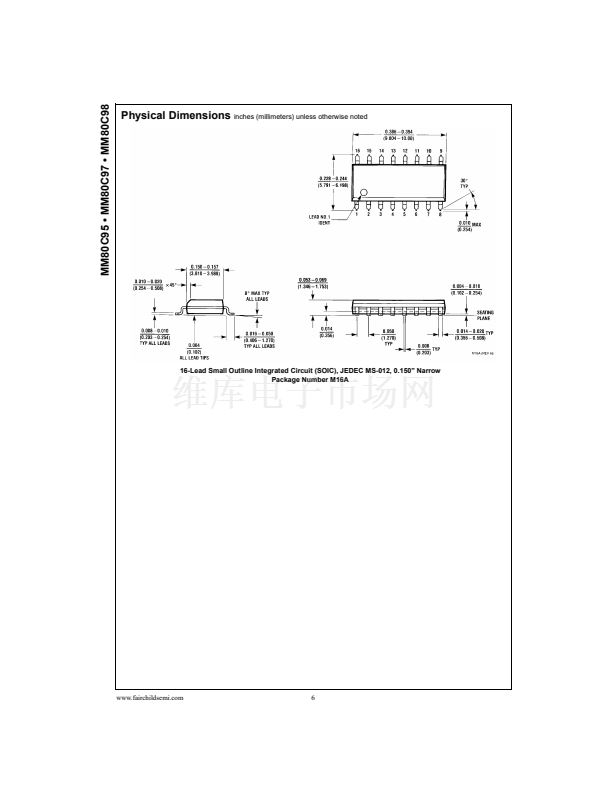

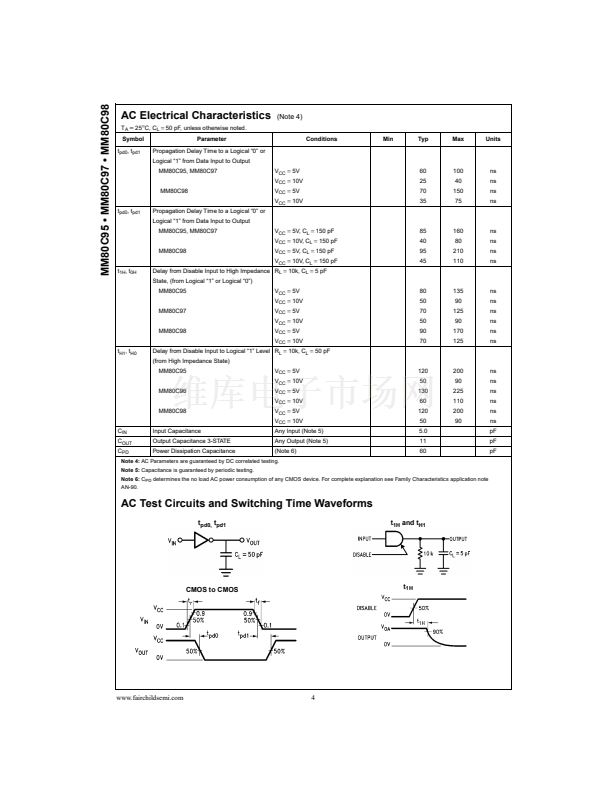

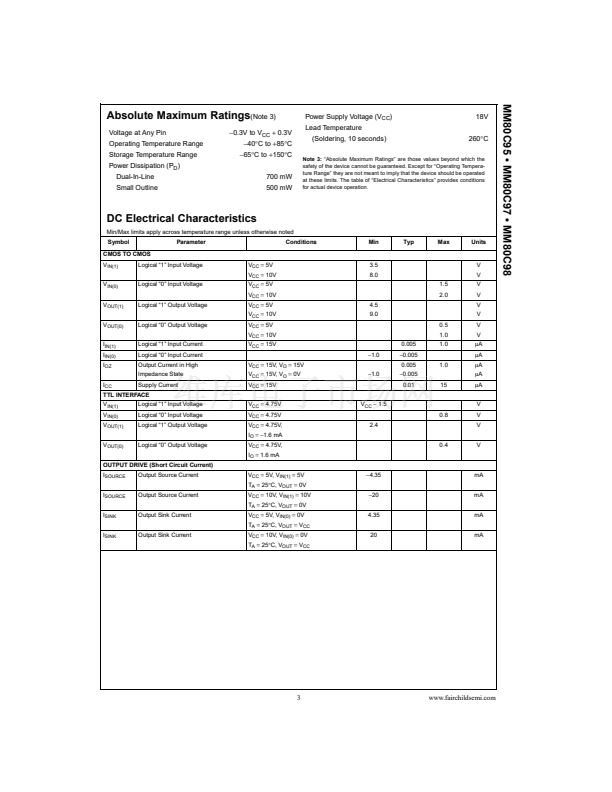

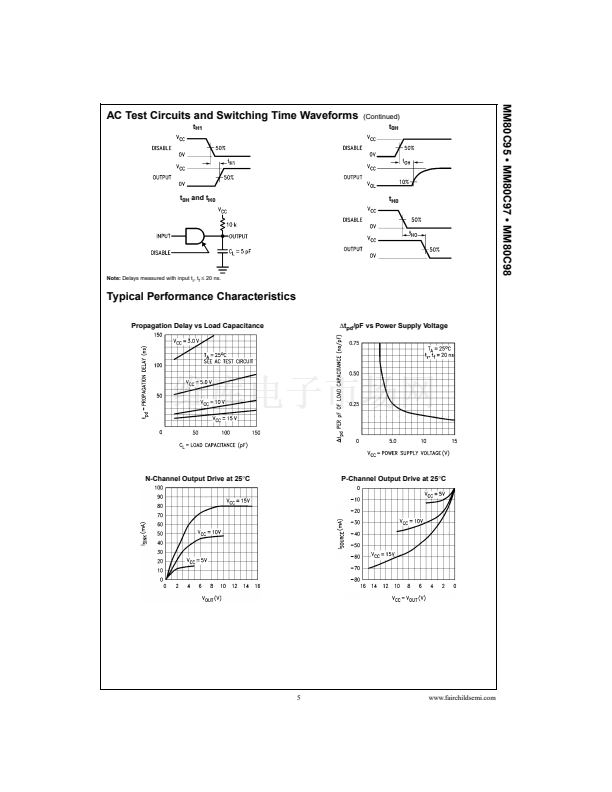

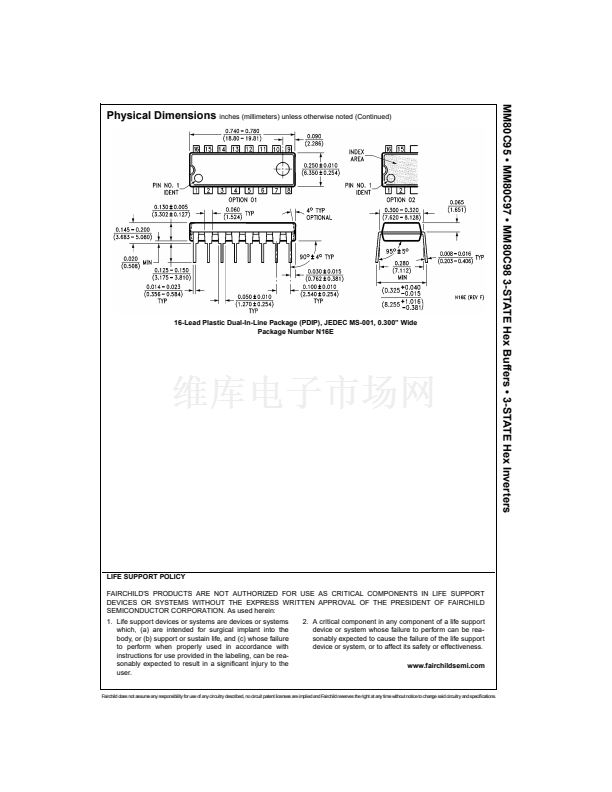

MM80C98N 產品屬性

  • 25

  • 集成電路 (IC)

  • 邏輯 - 柵極和逆變器

  • 80C

  • 逆變器，緩沖器

  • 2

  • 4，2

  • 三態

  • 3 V ~ 15 V

  • -

  • 20mA，20mA

  • 1.5 V ~ 2 V

  • 3.5 V ~ 8 V

  • 110ns @ 10V，150pF

  • -40°C ~ 85°C

  • 通孔

  • 16-DIP

  • 16-DIP（0.300"，7.62mm）

  • 管件

  • 80C9880C98N
