MM74HCT273 Datasheet

  • MM74HCT273

  • Octal D-Type Flip-Flop with Clear

  • Fairchild

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

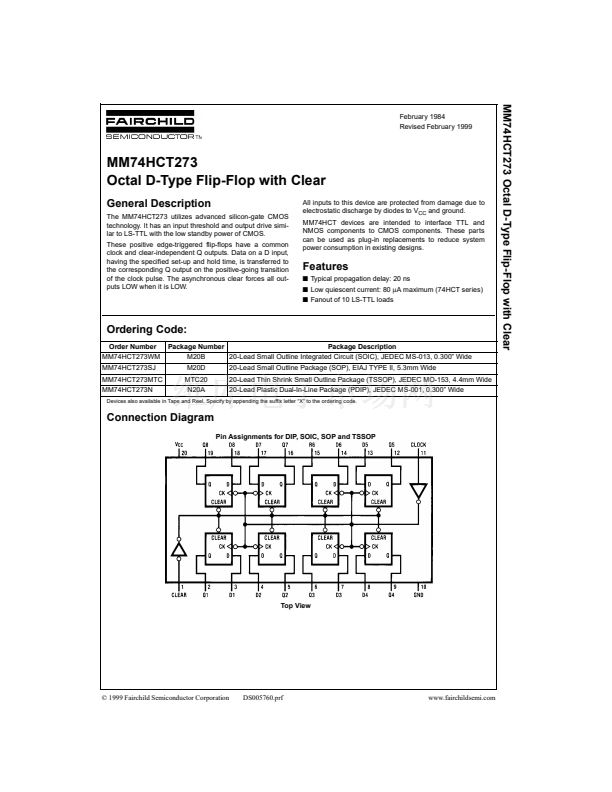

MM74HCT273 Octal D-Type Flip-Flop with Clear
February 1984
Revised February 1999
MM74HCT273
Octal D-Type Flip-Flop with Clear
General Description
The MM74HCT273 utilizes advanced silicon-gate CMOS
technology. It has an input threshold and output drive simi-
lar to LS-TTL with the low standby power of CMOS.
These positive edge-triggered flip-flops have a common
clock and clear-independent Q outputs. Data on a D input,
having the specified set-up and hold time, is transferred to
the corresponding Q output on the positive-going transition
of the clock pulse. The asynchronous clear forces all out-
puts LOW when it is LOW.
All inputs to this device are protected from damage due to
electrostatic discharge by diodes to V
CC
and ground.
MM74HCT devices are intended to interface TTL and
NMOS components to CMOS components. These parts
can be used as plug-in replacements to reduce system
power consumption in existing designs.
Features
s
Typical propagation delay: 20 ns
s
Low quiescent current: 80
碌A(chǔ)
maximum (74HCT series)
s
Fanout of 10 LS-TTL loads
Ordering Code:
Order Number
MM74HCT273WM
MM74HCT273SJ
MM74HCT273MTC
MM74HCT273N
Package Number
M20B
M20D
MTC20
N20A
Package Description

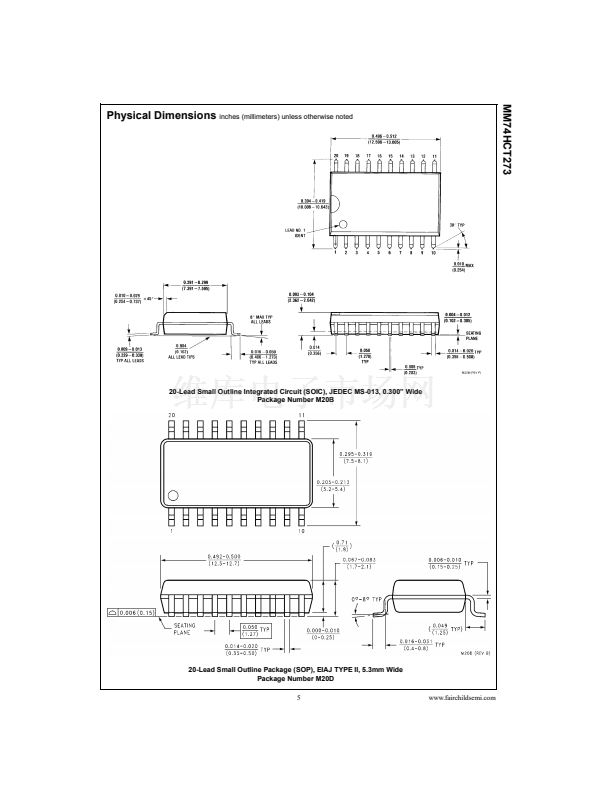

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300鈥?Wide
20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

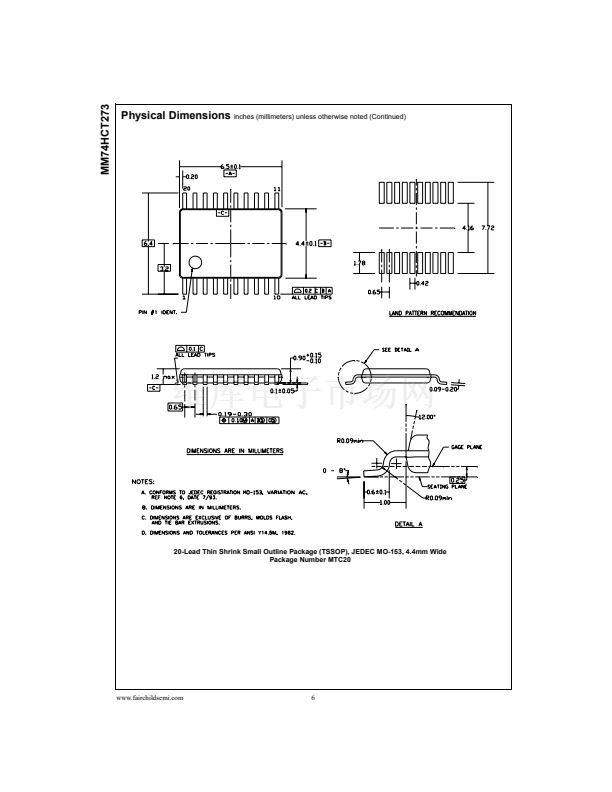

20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide

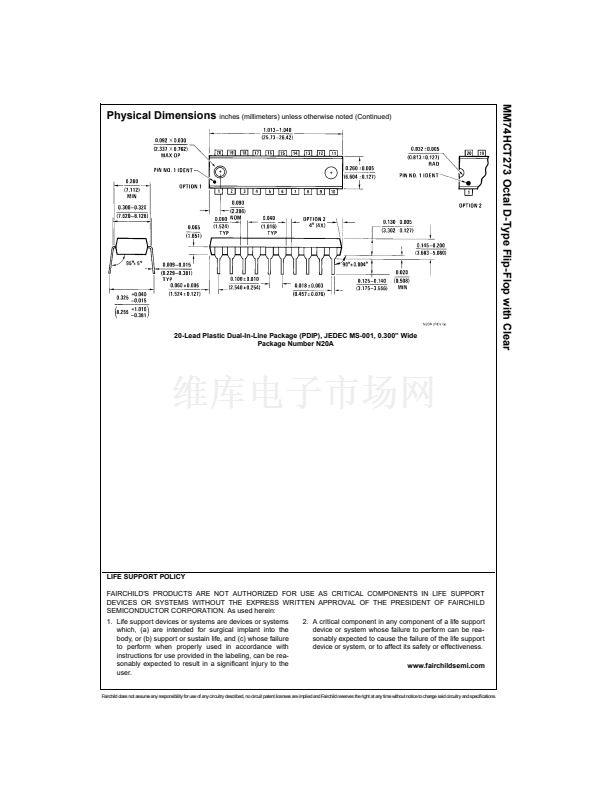

20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300鈥?Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Connection Diagram
Pin Assignments for DIP, SOIC, SOP and TSSOP
Top View
漏 1999 Fairchild Semiconductor Corporation
DS005760.prf
www.fairchildsemi.com
