MM74HCT14M Datasheet

  • MM74HCT14M

  • Fairchild Semiconductor [Hex Inverting Schmitt Trigger]

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

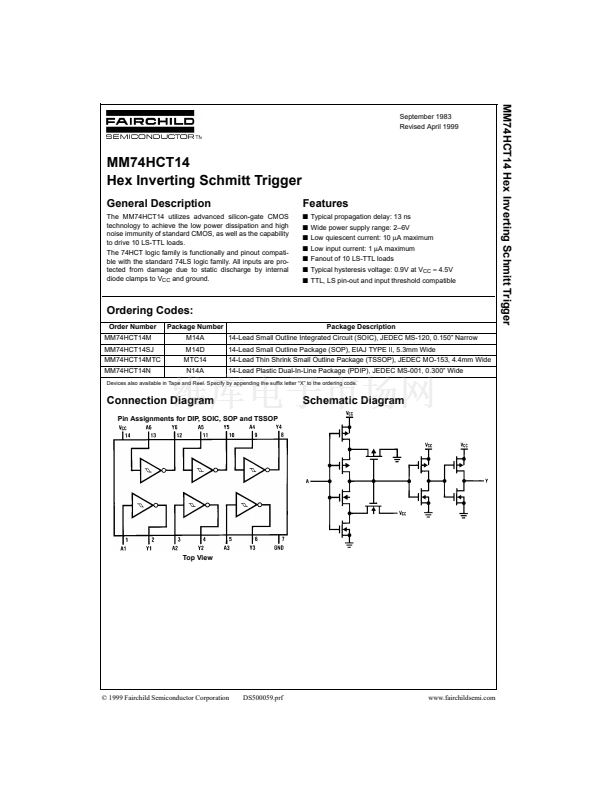

MM74HCT14 Hex Inverting Schmitt Trigger
September 1983
Revised April 1999
MM74HCT14
Hex Inverting Schmitt Trigger
General Description
The MM74HCT14 utilizes advanced silicon-gate CMOS
technology to achieve the low power dissipation and high
noise immunity of standard CMOS, as well as the capability
to drive 10 LS-TTL loads.
The 74HCT logic family is functionally and pinout compati-
ble with the standard 74LS logic family. All inputs are pro-
tected from damage due to static discharge by internal
diode clamps to V
CC
and ground.
Features
s
Typical propagation delay: 13 ns
s
Wide power supply range: 2鈥?V
s
Low quiescent current: 10
碌A(chǔ)
maximum
s
Low input current: 1
碌A(chǔ)
maximum
s
Fanout of 10 LS-TTL loads
s
Typical hysteresis voltage: 0.9V at V
CC
=
4.5V
s
TTL, LS pin-out and input threshold compatible
Ordering Codes:
Order Number
MM74HCT14M
MM74HCT14SJ
MM74HCT14MTC
MM74HCT14N
Package Number
M14A
M14D
MTC14
N14A
Package Description

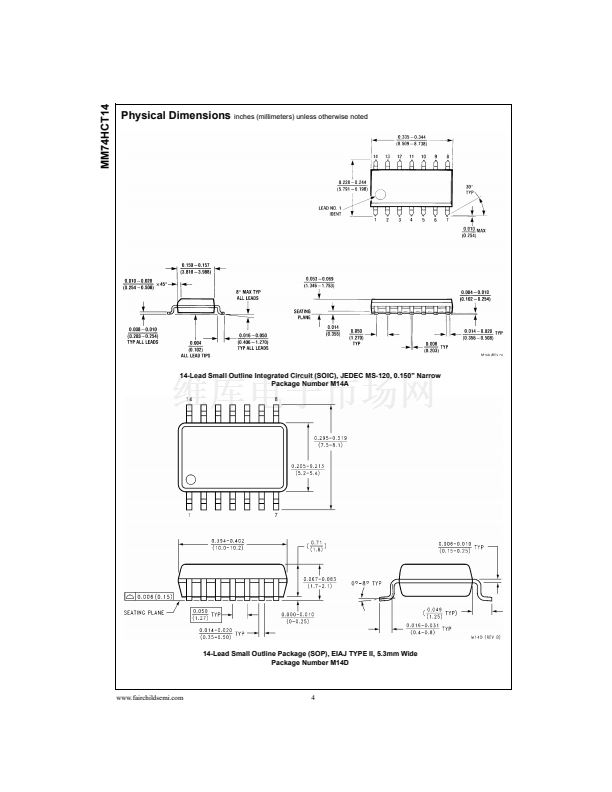

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150鈥?Narrow
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

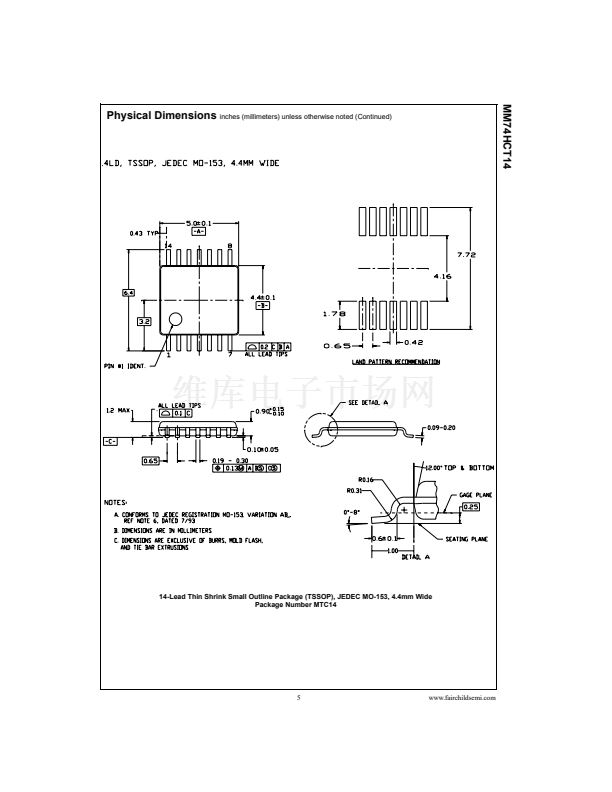

14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide

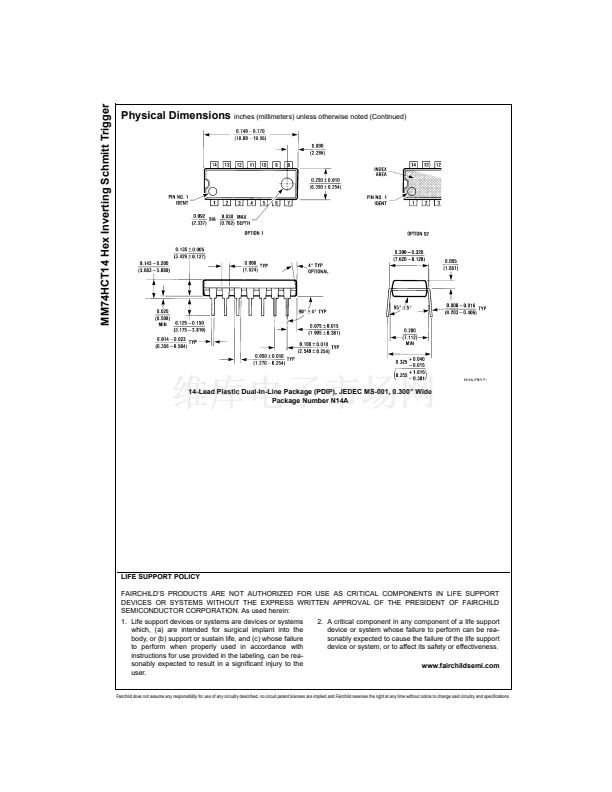

14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300鈥?Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Connection Diagram
Pin Assignments for DIP, SOIC, SOP and TSSOP
Schematic Diagram
Top View
漏 1999 Fairchild Semiconductor Corporation
DS500059.prf
www.fairchildsemi.com

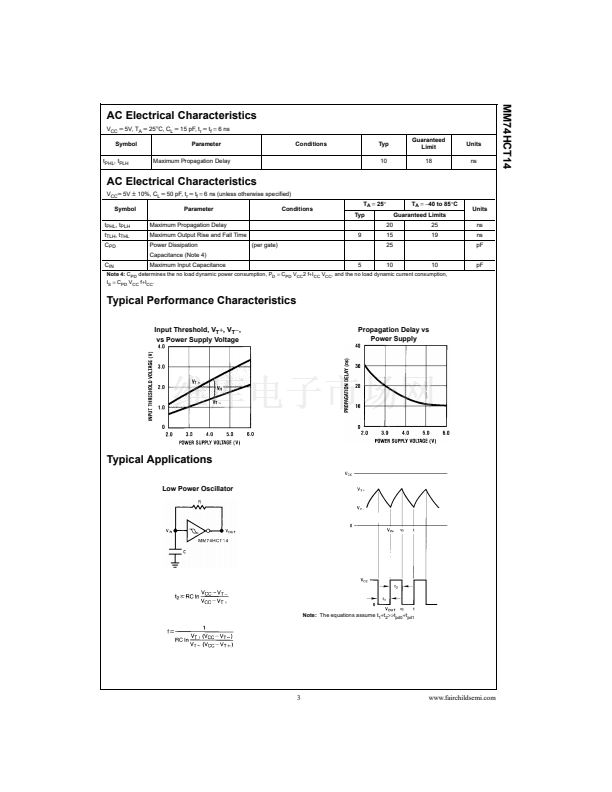

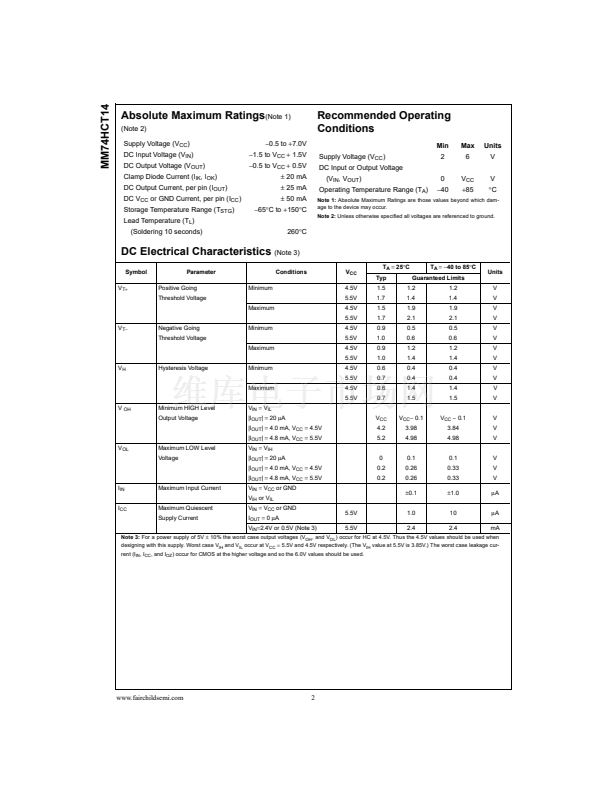

MM74HCT14M PDF文件相關型號

MM74HCT14MX-NL

MM74HCT14M 產品屬性

  • 55

  • 集成電路 (IC)

  • 邏輯 - 柵極和逆變器

  • 74HCT

  • 逆變器，緩沖器

  • 6

  • 1

  • 施密特觸發器

  • 4.5 V ~ 5.5 V

  • 1µA

  • 4.8mA，4.8mA

  • 0.5 V ~ 0.6 V

  • 1.9 V ~ 2.1 V

  • 20ns @ 5V，50pF

  • -40°C ~ 85°C

  • 表面貼裝

  • 14-SOIC

  • 14-SOIC（0.154"，3.90mm 寬）

  • 管件
