MM74HC393SJ Datasheet

  • MM74HC393SJ

  • Fairchild Semiconductor [Dual 4-Bit Binary Counter]

  • 86.98KB

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MM74HC393 Dual 4-Bit Binary Counter
September 1983
Revised February 1999
MM74HC393
Dual 4-Bit Binary Counter
General Description
The MM74HC393 counter circuits contain independent rip-
ple carry counters and utilize advanced silicon-gate CMOS
technology. The MM74HC393 contains two 4-bit ripple
carry binary counters, which can be cascaded to create a
single divide-by-256 counter.
Each of the two 4-bit counters is incremented on the HIGH-
to-LOW transition (negative edge) of the clock input, and
each has an independent clear input. When clear is set
HIGH all four bits of each counter are set to a low level.
This enables count truncation and allows the implementa-
tion of divide-by-N counter configurations.
Each of the counters outputs can drive 10 low power
Schottky TTL equivalent loads. This counter is functionally
as well as pin equivalent to the 74LS393. All inputs are pro-
tected from damage due to static discharge by diodes to
V
CC
and ground.
Features
s
Typical operating frequency: 50 MHz
s
Typical propagation delay: 13 ns (Ck to Q
A
)
s
Wide operating supply voltage range: 2鈥?V
s
Low input current:
<1 碌A(chǔ)
s
Low quiescent supply current: 80
碌A(chǔ)
maximum (74HC
Series)
s
Fanout of 10 LS-TTL loads
Ordering Code:
Order Number
MM74HC393M
MM74HC393SJ
MM74HC393MTC
MM74HC393N
Package Number
M14A
M14D
MTC14
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150鈥?Narrow
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300鈥?Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Connection Diagram
Pin Assignments for DIP, SOIC, SOP and TSSOP
Top View
漏 1999 Fairchild Semiconductor Corporation
DS005337.prf
www.fairchildsemi.com

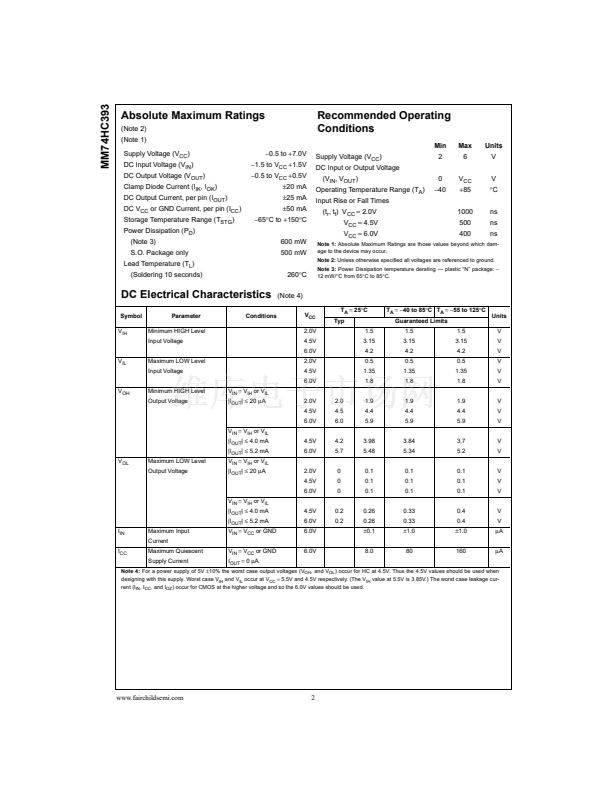

MM74HC393SJ 產品屬性

  • 47

  • 集成電路 (IC)

  • 邏輯 -計數器，除法器

  • 74HC

  • 二進制計數器

  • 上

  • 2

  • 4

  • 異步

  • -

  • 50MHz

  • 負邊沿

  • 2 V ~ 6 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 14-SOIC（0.209"，5.30mm 寬）

  • 14-SOIC

  • 管件
