MM74C174N Datasheet

  • MM74C174N

  • Hex D-Type Flip-Flop

  • 6頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MM74C174 Hex D-Type Flip-Flop
October 1987
Revised January 1999
MM74C174
Hex D-Type Flip-Flop
General Description
The MM74C174 hex D-type flip-flop is a monolithic comple-
mentary MOS (CMOS) integrated circuit constructed with
N- and P-channel enhancement transistors. All have a
direct clear input. Information at the D inputs meeting the
setup time requirements is transferred to the Q outputs on
the positive-going edge of the clock pulse. Clear is inde-
pendent of clock and accomplished by a low level at the
clear input. All inputs are protected by diodes to V
CC
and
GND.
Features
s
Wide supply voltage range:
s
Guaranteed noise margin:
s
High noise immunity:
3.0V to 15V
1.0V
0.45 V
CC
(typ.)
s
Low power TTL compatibility:
Fan out of 2 driving 74L
Ordering Code:
Order Number
MM74C174M
MM74C174N
Package Number
M16A
N16E
Package Description
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150鈥?Narrow
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300鈥?Wide
Device also available in Tape and Reel. Specify by appending suffix letter 鈥淴鈥?to the ordering code.
Connection Diagram
Pin Assignments for DIP and SOIC
Truth Table
Inputs
Clear
L
H
H
H
Clock
X
鈫?/div>
鈫?/div>
L
D
X
H
L
X
Output
Q
L
H
L
Q
Top View
漏 1999 Fairchild Semiconductor Corporation
DS005899.prf
www.fairchildsemi.com

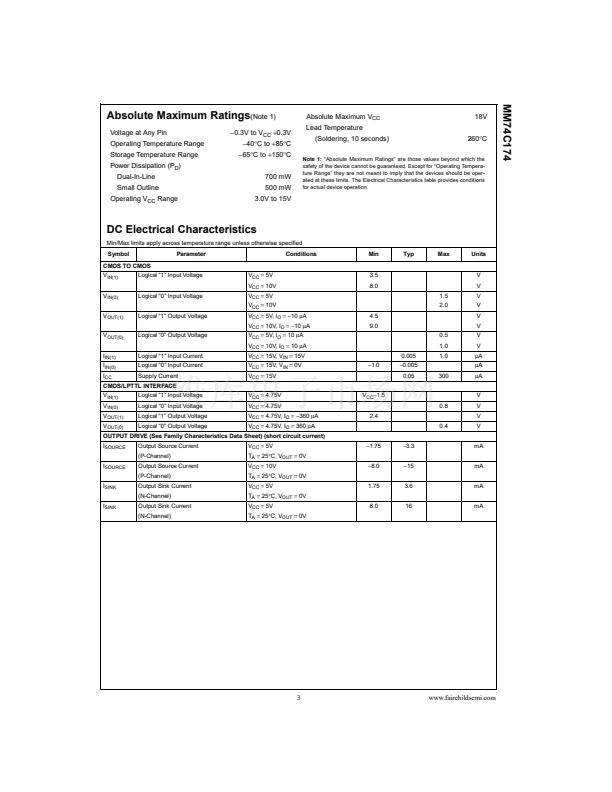

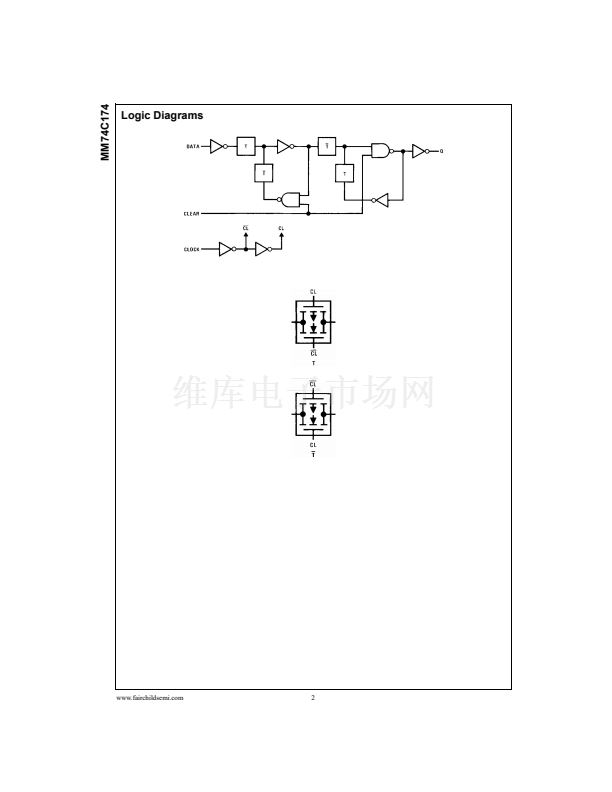

MM74C174N 產品屬性

  • Fairchild Semiconductor

  • 1

  • 74C

  • CMOS

  • Non-Inverting

  • Single-Ended

  • Single-Ended

  • 300 ns

  • - 15 mA

  • 16 mA

  • 15 V

  • + 125 C

  • Through Hole

  • PDIP-16

  • Rail

  • - 55 C

  • 6

  • 6

  • 3 V
