MITSUMI

Video Amplifier MM1186

Video Amplifier

Monolithic IC MM1186

Outline

This is a 75鈩? 2 system drive IC that supports S. Y input and V input have clamps, while C input does not

have a clamp.

Features

1. Supports S

Three 75鈩?2 system drive circuits built in

2. Current consumption

24mA typ.

3. Power supply voltage

SOP : 5V, SIP : 5~12V

4. Frequency response

7MHz

5. Crosstalk

60dB (at 4.43MHz)

Package

SOP-8C (MM1186XF)

SIP-8A (MM1186XS)

Applications

1. Free-standing VCR

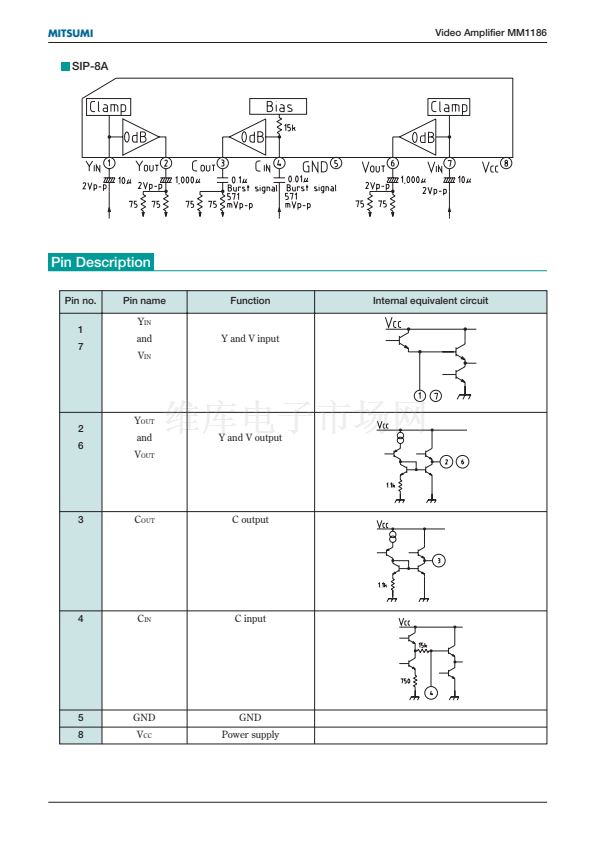

Block Diagram

SOP-8C
