MITSUMI

NTSC

PAL Converter MM1130

NTSC

PAL Converter

Monolithic IC MM1130

Outline

This is an NTSC/PAL signal switching IC.

In PAL conversion mode, a frequency-converted (fc=4.43MHz) NTSC format chroma signal is phase

converted (R-Y axis component is inverted) every 1 hour by shifting burst signal phase by 45擄.

Circuit configuration includes VCO (horizontal sync), VCXO (phase conversion carrier), phase conversion

circuit, switches, amps, etc.

Features

1. PAL conversion with phase conversion performed

2. Two possible phase conversion carriers : crystal oscillation and external input

3. No adjustments

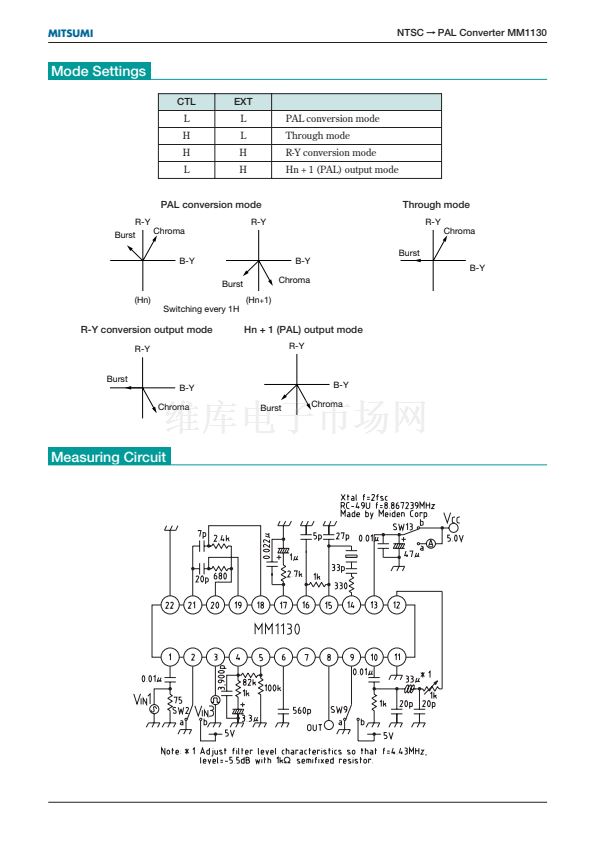

4. Four possible mode selections by CTL and EXT pins

Package

SDIP-22A (MM1130XD)

Applications

1. VCR

Block Diagram
