Preliminary Speci鏗乧ations
Surface Mount Frequency Synthesizer
DATA 1005 - 1065 MHz
MLS9900-01035
V1.00
Features
q
q
q
q
q
Miniature Size
Surface Mount Package
Electrically Shielded
Low Phase Noise
Integral Buffer Ampli鏗乪r
Description
The MLS9900-01035 frequency synthesizer combines a
phase locked loop circuit with a high performance
buffered VCO in an RFI screened surface mount package.
The synthesizer is optimised for mobile data service
applications with 12.5 kHz or 25 kHz RF channel
spacing. A +5V power supply and serial data input are
required.
The surface mount package used provides for electrical
shielding, ease of assembly and repeatable performance.
M/A-COM鈥檚 surface mount manufacturing techniques,
automatic assembly and electrical testing ensure a high
degree of electrical and mechanical repeatability at low
cost and in high volume. Manufacturing is carried out in
an ISO 9000 quali鏗乪d facility.
Electrical Speci鏗乧ations
1
,
T
A
= +25擄C, V
CC
= +5V
(unless otherwise stated)
Parameter
Frequency Range (Fout)
RF Output Power
2
Supply Voltage (V
CC1
)
Supply Current (I
CC1
)
Supply Voltage (V
CC2
)
Supply Current (I
CC2
)
Reference Frequency (F
R
)
3
Phase Noise
4
Residual Phase Noise
Frequency Step Size (鈭咶)
Lock Up Time
5
Lock Up Time
Harmonic Outputs
Spurious Outputs
Output Impedance
Test Conditions
1005 - 1065 MHz
Units
MHz
dBm
V
mA
V
mA
MHz
dBc/Hz
Degrees
kHz
ms
ms
dBc
dBc
ohm
Min.
1005
-2.0
+4.75
+4.75
1
-100
6.5
12.5
Typ.
Max.
1065
+2.0
+5.25
20
+5.25
10
20
-95
+5.00
+5.00
0.5 - 2.0 V pk - pk sine wave
SSB at 10 kHz offset from carrier
50 Hz to 100 kHz
f
o
鹵 1 kHz band edge to edge
between adjacent channels
f
o
鹵 12.5 kHz
-20
-80
50
40
20
-10
-75
1. All speci鏗乧ations apply with a 50 ohm load impedance.
2. Output power window includes unit to unit variation, temperature
effects -30擄C to +70擄C and frequency 鏗俛tness.
3. Reference frequency input impedance 10 kohm min.

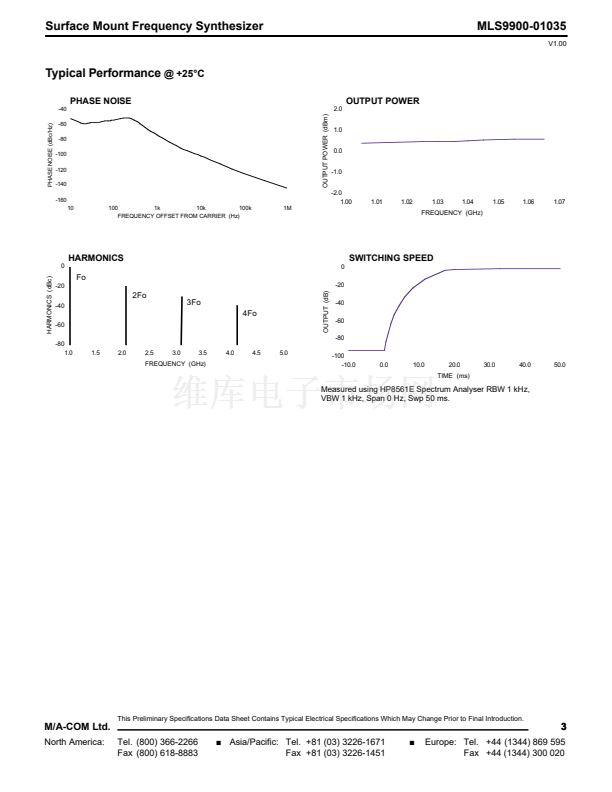

4. For typical phase noise at other offsets see phase noise curve.
5. Integral lock detector, output high locked.
This Preliminary Speci鏗乧ations Data Sheet Contains Typical Electrical Speci鏗乧ations Which May Change Prior to Final Introduction.
