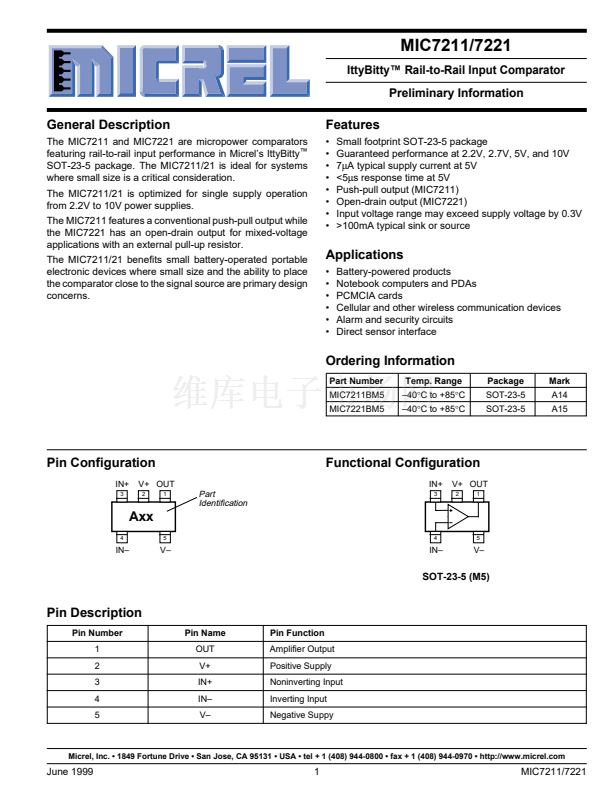

SOT-23-5 package. The MIC7211/21 is ideal for systems
where small size is a critical consideration.
The MIC7211/21 is optimized for single supply operation
from 2.2V to 10V power supplies.
The MIC7211 features a conventional push-pull output while
the MIC7221 has an open-drain output for mixed-voltage
applications with an external pull-up resistor.
The MIC7211/21 benefits small battery-operated portable
electronic devices where small size and the ability to place
the comparator close to the signal source are primary design
concerns.
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Small footprint SOT-23-5 package
Guaranteed performance at 2.2V, 2.7V, 5V, and 10V
7碌A typical supply current at 5V
<5碌s response time at 5V
Push-pull output (MIC7211)
Open-drain output (MIC7221)
Input voltage range may exceed supply voltage by 0.3V
>100mA typical sink or source
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Battery-powered products
Notebook computers and PDAs
PCMCIA cards
Cellular and other wireless communication devices
Alarm and security circuits
Direct sensor interface
Ordering Information
Part Number
MIC7211BM5
MIC7221BM5
Temp. Range
鈥?0擄C to +85擄C
鈥?0擄C to +85擄C
Package
SOT-23-5
SOT-23-5
Mark
A14
A15
Pin Configuration
IN+
3
Functional Configuration
IN+
V+ OUT
2
1
1
V+ OUT
2
Part
Identification
3
Axx
4
5
4
5
IN鈥?/div>
V鈥?/div>
IN鈥?/div>
V鈥?/div>

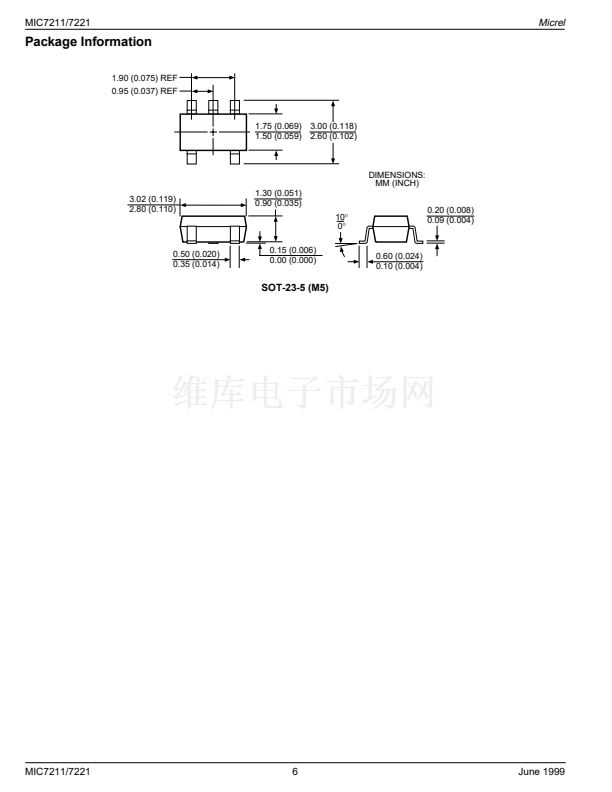

SOT-23-5 (M5)
Pin Description
Pin Number
1
2
3
4
5
Pin Name
OUT
V+
IN+
IN鈥?/div>
V鈥?/div>
Pin Function
Amplifier Output
Positive Supply
Noninverting Input
Inverting Input
Negative Suppy
Micrel, Inc. 鈥?1849 Fortune Drive 鈥?San Jose, CA 95131 鈥?USA 鈥?tel + 1 (408) 944-0800 鈥?fax + 1 (408) 944-0970 鈥?http://www.micrel.com
June 1999
1
MIC7211/7221
