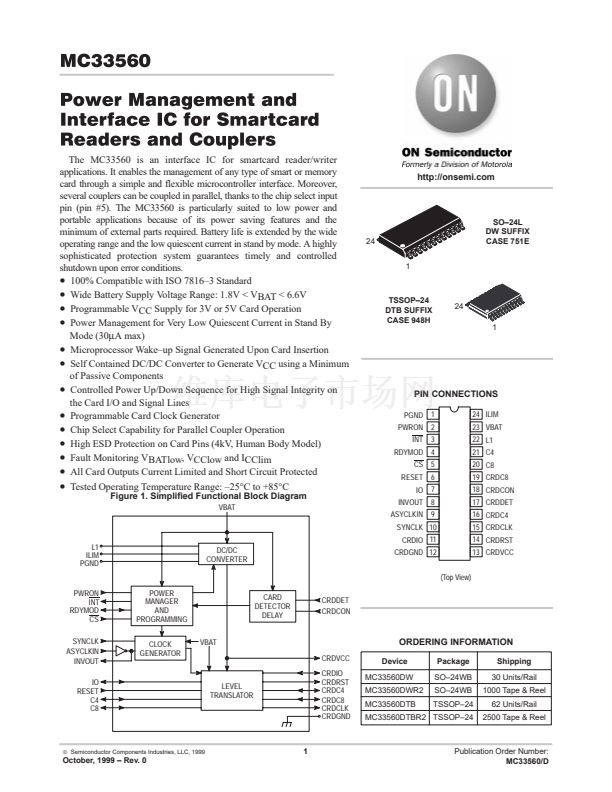

MC33560

Power Management and

Interface IC for Smartcard

Readers and Couplers

The MC33560 is an interface IC for smartcard reader/writer

applications. It enables the management of any type of smart or memory

card through a simple and flexible microcontroller interface. Moreover,

several couplers can be coupled in parallel, thanks to the chip select input

pin (pin #5). The MC33560 is particularly suited to low power and

portable applications because of its power saving features and the

minimum of external parts required. Battery life is extended by the wide

operating range and the low quiescent current in stand by mode. A highly

sophisticated protection system guarantees timely and controlled

shutdown upon error conditions.

鈥?/div>

100% Compatible with ISO 7816鈥? Standard

鈥?/div>

Wide Battery Supply Voltage Range: 1.8V < VBAT < 6.6V

鈥?/div>

Programmable VCC Supply for 3V or 5V Card Operation

鈥?/div>

Power Management for Very Low Quiescent Current in Stand By

Mode (30碌A(chǔ) max)

鈥?/div>

Microprocessor Wake鈥搖p Signal Generated Upon Card Insertion

鈥?/div>

Self Contained DC/DC Converter to Generate VCC using a Minimum

of Passive Components

鈥?/div>

Controlled Power Up/Down Sequence for High Signal Integrity on

the Card I/O and Signal Lines

鈥?/div>

Programmable Card Clock Generator

鈥?/div>

Chip Select Capability for Parallel Coupler Operation

鈥?/div>

High ESD Protection on Card Pins (4kV, Human Body Model)

鈥?/div>

Fault Monitoring VBATlow, VCClow and ICClim

鈥?/div>

All Card Outputs Current Limited and Short Circuit Protected

鈥?/div>

Tested Operating Temperature Range: 鈥?5擄C to +85擄C

Figure 1. Simplified Functional Block Diagram

VBAT

http://onsemi.com

24

1

SO鈥?4L

DW SUFFIX

CASE 751E

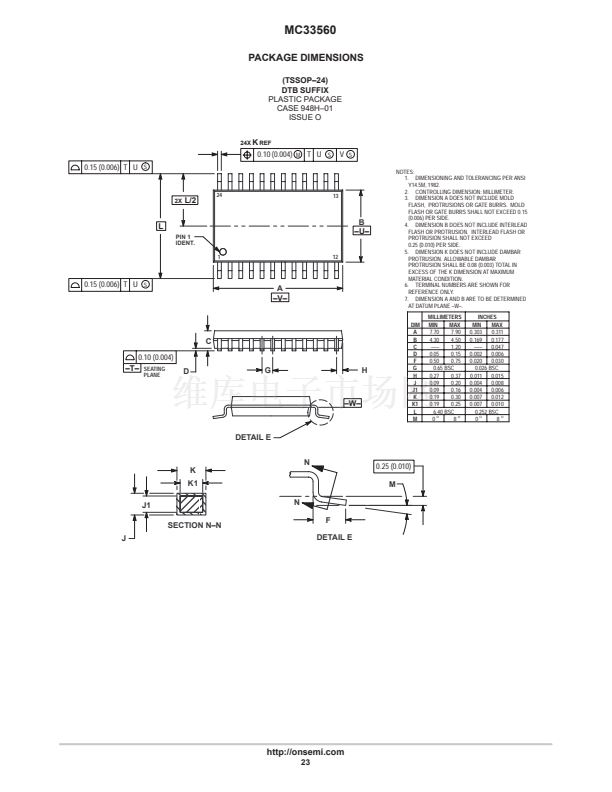

TSSOP鈥?4

DTB SUFFIX

CASE 948H

24

1

PIN CONNECTIONS

PGND

PWRON

INT

RDYMOD

CS

RESET

IO

INVOUT

ASYCLKIN

1

2

3

4

5

6

7

8

9

24 ILIM

23 VBAT

22 L1

21 C4

20 C8

19 CRDC8

18 CRDCON

17 CRDDET

16 CRDC4

15 CRDCLK

14 CRDRST

13 CRDVCC

(Top View)

SYNCLK 10

L1

ILIM

PGND

CRDIO 11

DC/DC

CONVERTER

CRDGND 12

PWRON

INT

RDYMOD

CS

SYNCLK

ASYCLKIN

INVOUT

IO

RESET

C4

C8

POWER

MANAGER

AND

PROGRAMMING

CLOCK

GENERATOR

VBAT

CARD

DETECTOR

DELAY

CRDDET

CRDCON

ORDERING INFORMATION

CRDVCC

CRDIO

CRDRST

CRDC4

CRDC8

CRDCLK

CRDGND

Device

MC33560DW

MC33560DWR2

MC33560DTB

Package

SO鈥?4WB

TSSOP鈥?4

Shipping

30 Units/Rail

1000 Tape & Reel

62 Units/Rail

2500 Tape & Reel

LEVEL

TRANSLATOR

MC33560DTBR2 TSSOP鈥?4

漏

Semiconductor Components Industries, LLC, 1999

1

October, 1999 鈥?Rev. 0

Publication Order Number:

MC33560/D

標準包裝
62
類別
集成電路 (IC)
家庭
接口 - 專用
系列
*
應用
*
接口
*
電源電壓
*
封裝/外殼
24-TSSOP（0.220"，5.60mm 寬）
供應商設備封裝
24-TSSOP
包裝
管件
安裝類型
表面貼裝
