MC13
-SERIES
Features

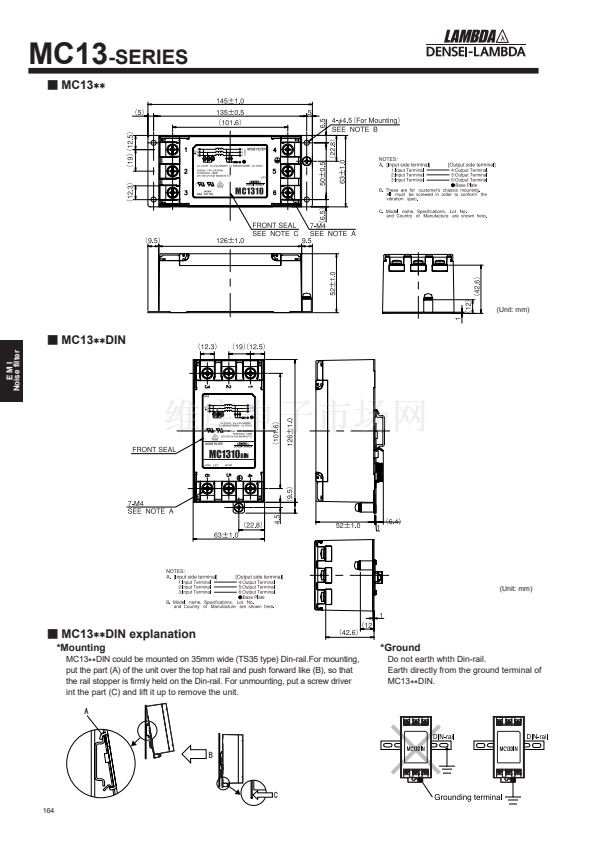

(1) 2 mounting options :
MC13**
Screw mounting type
MC13**DIN Din rail mounting type
(2) Worldwide compliance :
Voltage rating 3 phase AC500V, 10, 20, 30A
(3) Safe design :
Terminal with cover, Low leakage current
(4) Environmental compliance : Lead free soldering
Safety standard
UL1283
CSA Std. C22. 2 No. 8
EN133200
EN133200
Specifications
Model
STD type
Items
DIN type
1 Rated Voltage (AC)
2 Rated Current (*1)
3 Test Voltage (terminals to base plate, 1min AC)
4 Isolation Resistance (terminals to base plate, 500VDC)
5 Leakage Current
500V,60Hz
6 DC Resistance (three lines)
7 Temperature Rise
8 Operating Temperature
9 Operating Humidity
10 Storage Temperature
11 Storage Humidity
12
13
Vibration
Weight
MC13**
MC13**DIN
MC1310
MC1320
MC1330
MC1310DIN
MC1320DIN
MC1330DIN
500V (50/60Hz)
6A
10A
20A
30A
2000V (100mA) at 25擄C, 70% RH
100M鈩?min at 25擄C, 70% RH
5.0mA max
90m鈩?max
68m鈩?max
23m鈩?max
11m鈩?max
30擄C max
-25擄C ~ +85擄C
30% ~ 95% RH (No Dewdrop)
-40擄C ~ +85擄C
10% ~ 95% RH (No Dewdrop)
At no operating 10~55~10Hz, Amplitude (Sweep for 1min) 0.825mm constant (Maximum 49.0m/s
2
)X,Y,Z 1hour each
At no operating 55~250~55Hz, Acceleration (Sweep for 1min) 19.6m/s
2
, X,Y,Z 1hour each
At no operating 10~55~10Hz, Acceleration (Sweep for 1min) 9.8m/s
2
, X,Y,Z 1hour each
600g
=
(Note) : Value for Ta
<
50擄C For Ta>50擄C derate according to the derating curve shown on the right.
MC1306
MC1306DIN

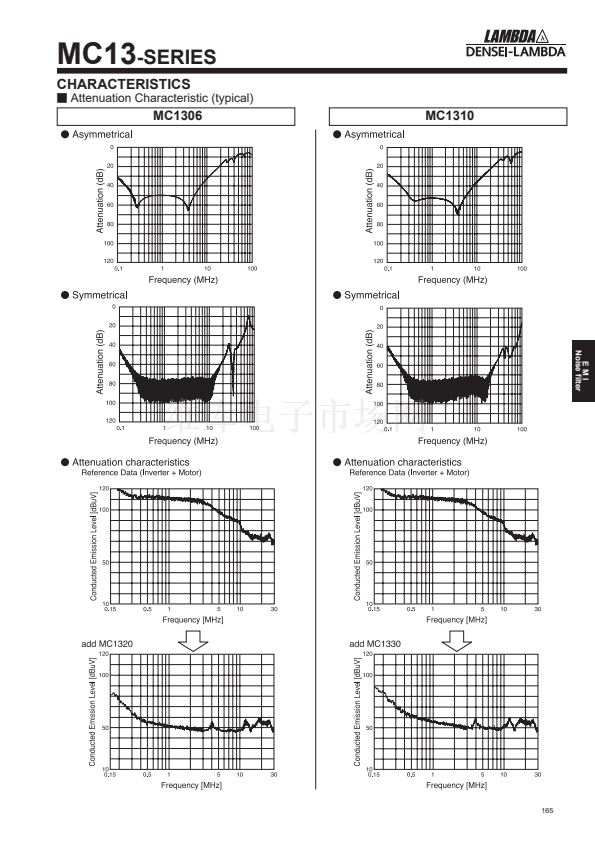

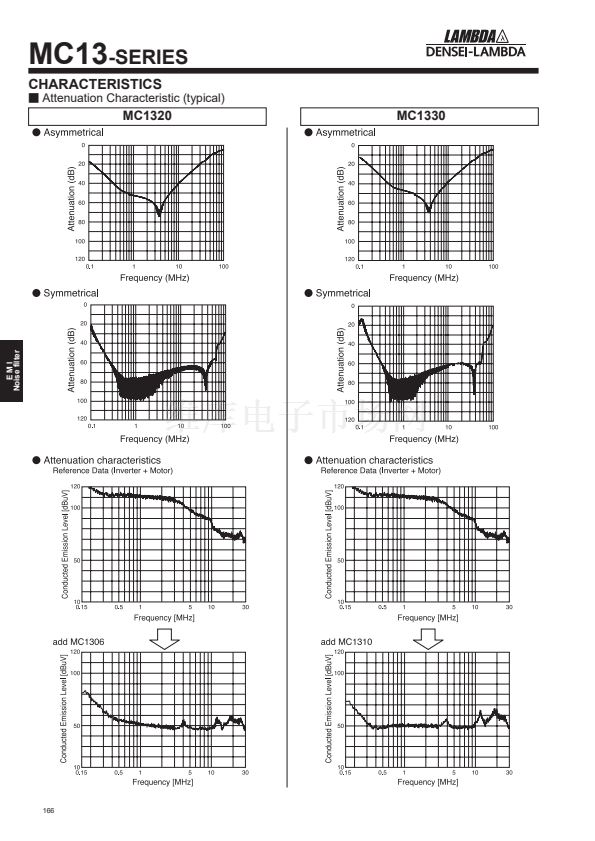

EMI
Noise filter
Circuit
Derating
Current (%)
Temperature (擄C)
Terminal Explanation
Request customer specification for further details of specifications, outline, characteristics, etc.
Read the instruction manual before usage.
Contact us about delivery before ordering.
