MC100EL14
5V ECL 1:5 Clock
Distribution Chip
The MC100EL14 is a low skew 1:5 clock distribution chip designed
explicitly for low skew clock distribution applications. The V
BB
pin, an
internally generated voltage supply, is available to this device only.
For single-ended input conditions, the unused differential input is
connected to V
BB
as a switching reference voltage. V
BB
may also
rebias AC coupled inputs. When used, decouple V
BB
and V
CC
via a
0.01
mF
capacitor and limit current sourcing or sinking to 0.5 mA.
When not used, V
BB
should be left open.
The EL14 features a multiplexed clock input to allow for the
distribution of a lower speed scan or test clock along with the high speed
system clock. When LOW (or left open and pulled LOW by the input
pulldown resistor) the SEL pin will select the differential clock input.
The common enable (EN) is synchronous so that the outputs will only
be enabled/disabled when they are already in the LOW state. This
avoids any chance of generating a runt clock pulse when the device is
enabled/disabled as can happen with an asynchronous control. The
internal flip flop is clocked on the falling edge of the input clock,
therefore all associated specification limits are referenced to the
negative edge of the clock input.
Features
20
100EL14
AWLYYWWG
http://onsemi.com
SOIC鈭?0L
DW SUFFIX
CASE 751D
MARKING DIAGRAM
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
50 ps Output-to-Output Skew
Synchronous Enable/Disable
Multiplexed Clock Input
The 100 Series Contains Temperature Compensation
1
A
WL
YY
WW
G
PECL Mode Operating Range: V
CC
= 4.2 V to 5.7 V
with V
EE
= 0 V
鈥?/div>
NECL Mode Operating Range: V
CC
= 0 V
with V
EE
=
鈭?.2
V to
鈭?.7
V
鈥?/div>
Q Output will Default LOW with Inputs Open or at V
EE
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb鈭扚ree Package
鈥?/div>
Internal Input Pull鈭抎own Resistors on All Inputs, Pull鈭抲p Resistors
on Inverted Inputs
鈥?/div>
Pb鈭扚ree Packages are Available*
*For additional marking information, refer to
Application Note AND8002/D.

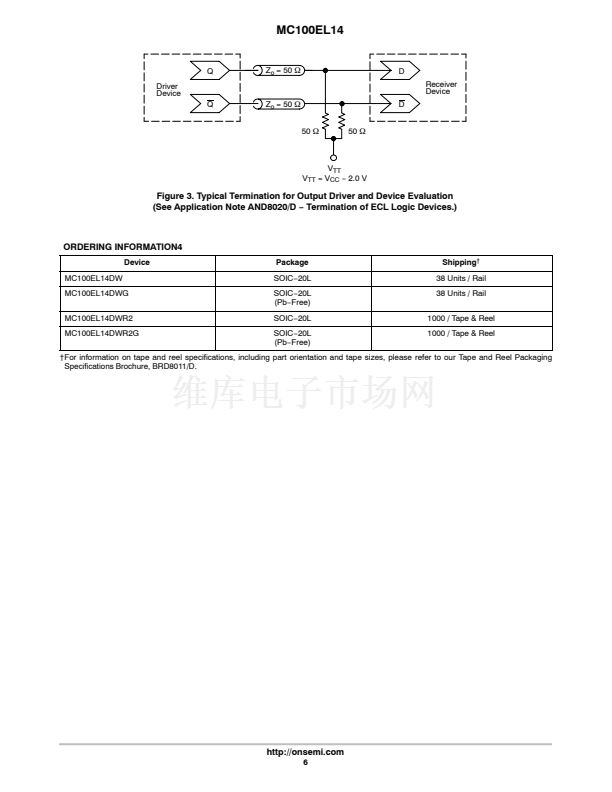

ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 6 of this data sheet.
*For additional information on our Pb鈭扚ree strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
漏
Semiconductor Components Industries, LLC, 2006
October, 2006
鈭?/div>
Rev. 7
1
Publication Order Number:
MC100EL14/D
MC100EL14DWG 產(chǎn)品屬性
38
集成電路 (IC)
時鐘/計時 - 時鐘緩沖器，驅(qū)動器
100EL
扇出緩沖器（分配），多路復(fù)用器
1
2:5
是/是
ECL，PECL
ECL，PECL
1GHz
4.2 V ~ 5.7 V
-40°C ~ 85°C
表面貼裝
20-SOIC（0.295"，7.50mm 寬）
20-SOIC
管件
MC100EL14DWGOS
