19-2595; Rev 0; 10/02
Quad LVDS Line Receiver with Flow-Through
Pinout and 鈥淚n-Path鈥?Fail-Safe
General Description
The MAX9173 quad low-voltage differential signaling
(LVDS) line receiver is ideal for applications requiring
high data rates, low power, and low noise. The
MAX9173 is guaranteed to receive data at speeds up
to 500Mbps (250MHz) over controlled-impedance
media of approximately 100鈩? The transmission media
can be printed circuit (PC) board traces or cables.
The MAX9173 accepts four LVDS differential inputs and
translates them to LVCMOS/LVTTL outputs. The
MAX9173 inputs are high impedance and require an
external termination resistor when used in a point-to-
point connection.
The device supports a wide common-mode input range
of 0.05V to V
CC
- 0.05V, allowing for ground potential
differences and common-mode noise between the dri-
ver and the receiver. A fail-safe feature sets the output
high when the inputs are open, or when the inputs are
undriven and shorted or undriven and parallel terminat-
ed. The EN and
EN
inputs control the high-impedance
outputs. The enables are common to all four receivers.
Inputs conform to the ANSI TIA/EIA-644 LVDS stan-
dard. The flow-through pinout simplifies board layout
and reduces crosstalk by separating the LVDS inputs
and LVCMOS/LVTTL outputs. The MAX9173 operates
from a single 3.3V supply, and is specified for opera-
tion from -40擄C to +85擄C. Refer to the MAX9121/
MAX9122 data sheet for lower jitter quad LVDS
receivers with parallel fail-safe. Refer to the MAX9123
data sheet for a quad LVDS line driver with flow-
through pinout.
The device is available in 16-pin TSSOP, SO, and
space-saving thin QFN packages.
o
Accepts LVDS and LVPECL Inputs
o
Fully Compatible with DS90LV048A
o
Low 1.0mA (max) Disable Supply Current
o
In-Path Fail-Safe Circuitry
o
Flow-Through Pinout
Simplifies PC Board Layout
Reduces Crosstalk
o
Guaranteed 500Mbps Data Rate
o
400ps Pulse Skew (max)
o
Conforms to ANSI TIA/EIA-644 LVDS Standard
o
High-Impedance LVDS Inputs when Powered-Off
o
Available in Tiny 3mm x 3mm QFN Package
Features
MAX9173
Ordering Information
PART
MAX9173EUE
MAX9173ESE
MAX9173ETE*
TEMP RANGE
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
PIN-PACKAGE
16 TSSOP
16 SO
16 Thin QFN-EP**
*Future
product. Contact factory for availability.
**EP
= Exposed pad.
Typical Operating Circuit
LVDS SIGNALS
MAX9173
MAX9123
Tx
100鈩?/div>
Rx
Applications
Digital Copiers
Laser Printers
Cellular Phone Base Stations
Network Switches/Routers
Backplane Interconnect
Clock Distribution
LCD Displays
Telecom Switching Equipment
Tx
100鈩?/div>
Rx
LVTTL/LVCMOS
DATA INPUTS
Tx
100鈩?/div>
Rx
LVTTL/LVCMOS
DATA OUTPUTS
Tx
100鈩?/div>
Rx
Pin Configurations and Functional Diagram appear at end of
data sheet.
100鈩?SHIELDED TWISTED CABLE OR MICROSTRIP BOARD TRACES

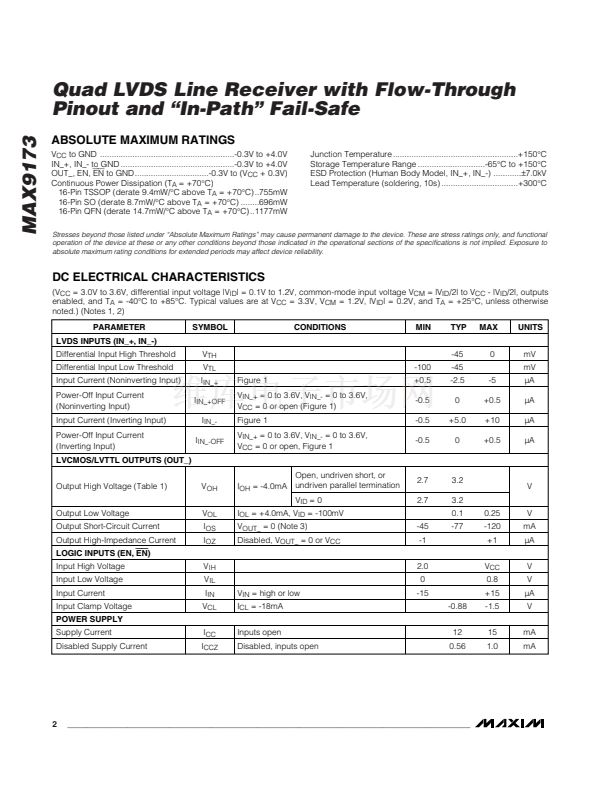

________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim鈥檚 website at www.maxim-ic.com.
