19-1818; Rev 1; 10/01
Dual, Low-Noise, Low-Dropout, 160mA Linear
Regulators in SOT23
General Description
The MAX8882/MAX8883 dual, low-noise, low-dropout
linear regulators operate from a +2.5V to +6.5V input
and deliver up to 160mA each of continuous current.
Both versions offer low output noise and low dropout of
only 72mV at 80mA. Designed with an internal P-
channel MOSFET pass transistor, the MAX8882/
MAX8883 maintain a low 165碌A(chǔ) supply current (both
LDOs on), independent of the load current and dropout
voltage. Other features include short-circuit protection
and thermal-shutdown protection. The MAX8882 has a
single shutdown input and provides an external refer-
ence bypass pin to improve noise performance. The
MAX8883 includes two independent logic-controlled
shutdown inputs. The MAX8882/MAX8883 are both
available in a miniature 6-pin SOT23 package.
o
o
o
o
o
o
o
Features
Two LDOs in Tiny SOT23
Up to 160mA Output Current (each LDO)
40碌V
RMS
Output Noise (MAX8882)
72mV Dropout at 80mA Load
Low 165碌A(chǔ) Operating Supply Current
62dB PSRR (greater than 56dB to 100kHz)
Independent Low-Power Shutdown Controls
(MAX8883)
o
Thermal-Overload and Short-Circuit Protection
o
Output Current Limit
MAX8882/MAX8883
Selector Guide
PART
MAX8882EUTJJ
MAX8882EUTAQ
MAX8882EUTA5
MAX8882EUTQ5
MAX8882EUTGG
MAX8883EUTJJ
MAX8883EUTAQ
MAX8883EUTA5
MAX8883EUTQ5
MAX8883EUTGG
V
OUTA
2.85
3.3
3.3
2.5
3.0
2.85
3.3
3.3
2.5
3.0
V
OUTB
2.85
2.5
1.8
1.8
3.0
2.85
2.5
1.8
1.8
3.0
TOP MARK
AANR
AAPW
AARY
AAPX
AAZT
AANS
AAPY
AARZ
AAPZ
AAZU
________________________Applications
碌P/DSP Core/IO Power
Cellular and PCS Telephones
PDAs and Palmtop Computers
Notebook Computers
Digital Cameras
Hand-Held Instruments
Pin Configurations
TOP VIEW
***Other
combinations between 1.8V and 3.3V are available in
100mV increments. Contact factory for other versions.
Minimum order quantity is 50,000 units.
Ordering Information
PART
OUTB
1
6
OUTA
SHUT-
DOWN
Single
Dual
TEMP
RANGE
-40擄C to +85擄C
-40擄C to +85擄C
PIN-
PACKAGE
6 SOT23-6
6 SOT23-6
MAX8882EUT_
_*
GND
2
MAX8882
5
IN
MAX8883EUT_
_*
*See
Selector Guide
BP
3
4
SHDN
Typical Operating Circuit
OUTA
V
IN
2.5V to 6.5V
2.2碌F
MAX8882
IN
MAX8883
OUTB
SHDN_
2.2碌F
GND
( ) ARE FOR MAX8882 ONLY.
(BP)
0.01碌F
V
OUTA
FIXED
(1.8V to 3.3V)
V
OUTB
FIXED
(1.8V to 3.3V)
SOT23-6

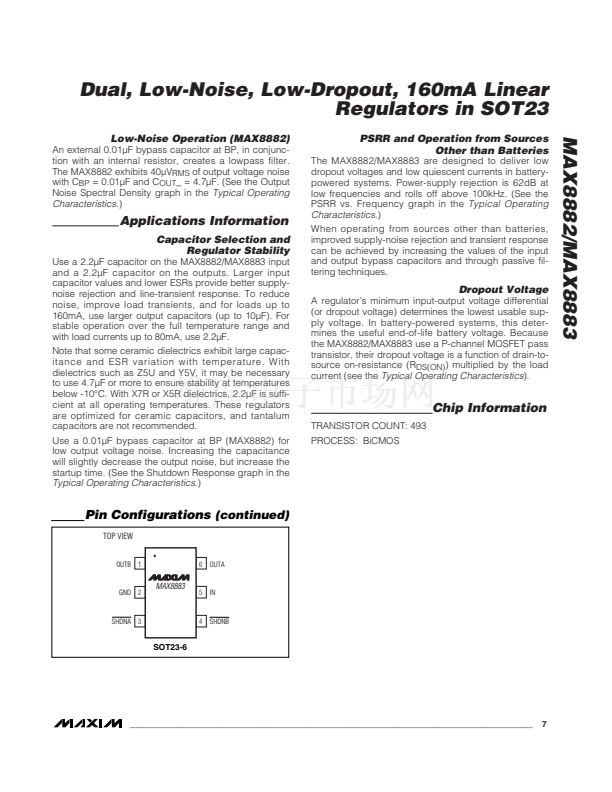

Pin Configurations continued at end of data sheet.
2.2碌F
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim鈥檚 website at www.maxim-ic.com.
