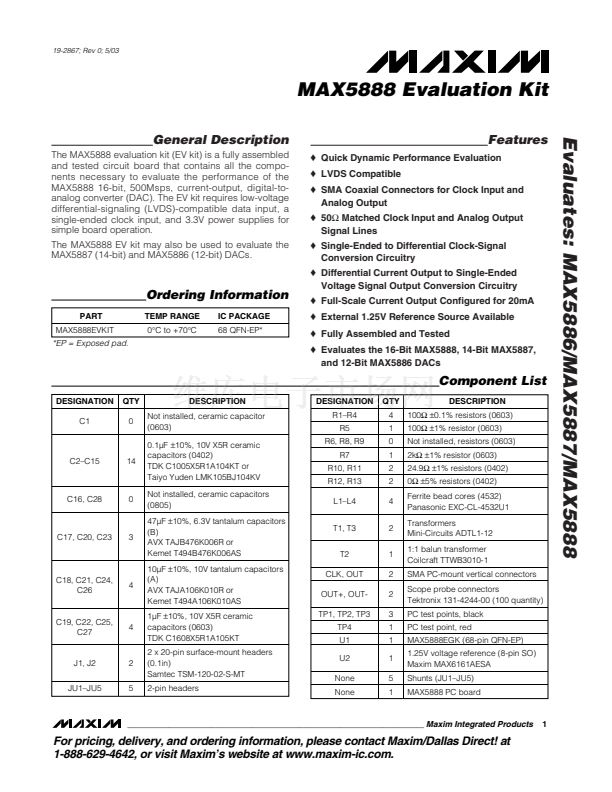

19-2867; Rev 0; 5/03
MAX5888 Evaluation Kit
General Description
The MAX5888 evaluation kit (EV kit) is a fully assembled
and tested circuit board that contains all the compo-
nents necessary to evaluate the performance of the
MAX5888 16-bit, 500Msps, current-output, digital-to-
analog converter (DAC). The EV kit requires low-voltage
differential-signaling (LVDS)-compatible data input, a
single-ended clock input, and 3.3V power supplies for
simple board operation.
The MAX5888 EV kit may also be used to evaluate the
MAX5887 (14-bit) and MAX5886 (12-bit) DACs.
o
LVDS Compatible
o
SMA Coaxial Connectors for Clock Input and
Analog Output
o
50鈩?Matched Clock Input and Analog Output
Signal Lines
o
Single-Ended to Differential Clock-Signal
Conversion Circuitry
o
Differential Current Output to Single-Ended
Voltage Signal Output Conversion Circuitry
o
Full-Scale Current Output Configured for 20mA
o
External 1.25V Reference Source Available
o
Fully Assembled and Tested
o
Evaluates the 16-Bit MAX5888, 14-Bit MAX5887,
and 12-Bit MAX5886 DACs
Features
o
Quick Dynamic Performance Evaluation
Evaluates: MAX5886/MAX5887/MAX5888
Ordering Information
PART
MAX5888EVKIT
TEMP RANGE
0擄C to +70擄C
IC PACKAGE
68 QFN-EP*
*EP = Exposed pad.
Component List
DESIGNATION
C1
QTY
0
DESCRIPTION
Not installed, ceramic capacitor
(0603)
0.1碌F
鹵10%,
10V X5R ceramic
capacitors (0402)
TDK C1005X5R1A104KT or
Taiyo Yuden LMK105BJ104KV
Not installed, ceramic capacitors
(0805)
47碌F
鹵10%,
6.3V tantalum capacitors
(B)
AVX TAJB476K006R or
Kemet T494B476K006AS
10碌F
鹵10%,
10V tantalum capacitors
(A)
AVX TAJA106K010R or
Kemet T494A106K010AS
1碌F
鹵10%,
10V X5R ceramic
capacitors (0603)
TDK C1608X5R1A105KT
2 x 20-pin surface-mount headers
(0.1in)
Samtec TSM-120-02-S-MT
2-pin headers
DESIGNATION
R1鈥揜4
R5
R6, R8, R9
R7
R10, R11
R12, R13
L1鈥揕4
T1, T3
T2
CLK, OUT
OUT+, OUT-
TP1, TP2, TP3
TP4
U1
U2
None
None
QTY
4
1
0
1
2
2
4
2
1
2
2
3
1
1
1
5
1
DESCRIPTION
100鈩?/div>
鹵0.1%
resistors (0603)
100鈩?/div>
鹵1%
resistor (0603)
Not installed, resistors (0603)
2k鈩?/div>
鹵1%
resistor (0603)
24.9鈩?/div>
鹵1%
resistors (0402)
0鈩?/div>
鹵5%
resistors (0402)
Ferrite bead cores (4532)
Panasonic EXC-CL-4532U1
Transformers
Mini-Circuits ADTL1-12
1:1 balun transformer
Coilcraft TTWB3010-1
SMA PC-mount vertical connectors
Scope probe connectors
Tektronix 131-4244-00 (100 quantity)
PC test points, black
PC test point, red
MAX5888EGK (68-pin QFN-EP)
1.25V voltage reference (8-pin SO)
Maxim MAX6161AESA
Shunts (JU1鈥揓U5)
MAX5888 PC board
C2鈥揅15
14
C16, C28
0
C17, C20, C23
3
C18, C21, C24,
C26
4
C19, C22, C25,
C27
4
J1, J2
JU1鈥揓U5
2
5
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim鈥檚 website at www.maxim-ic.com.
